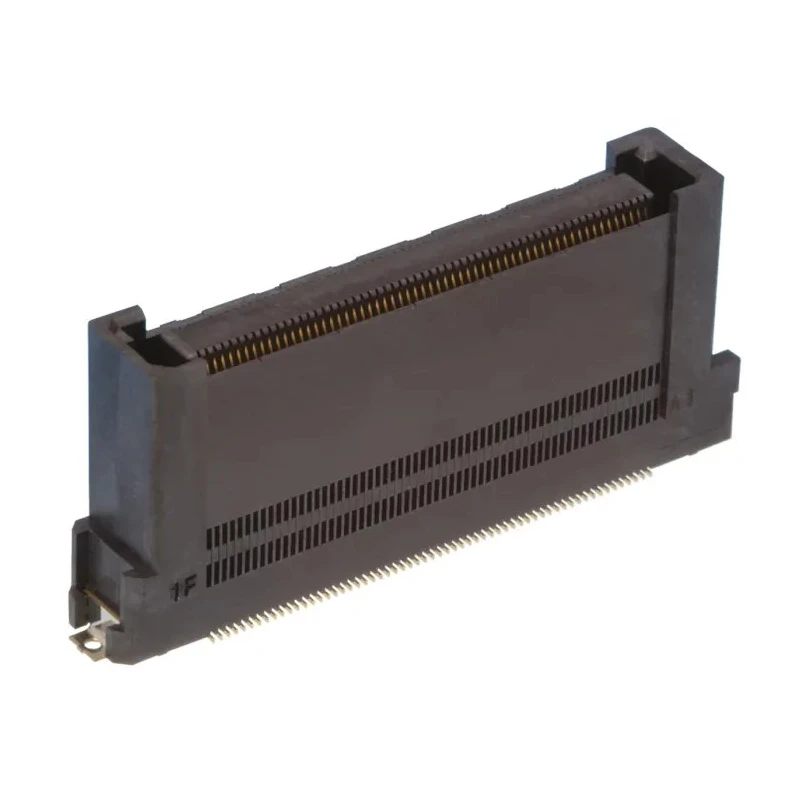

Hirose FunctionMAX FX20 Series Straight Surface PCB Socket, 100-Contact, 2 Row, 0.5 mm Pitch Solder FX20

Hirose FX20 PCB Socket FX20 is a high-performance board-to-board connector featuring a straight surface mount design with 100 contacts arranged in 2 rows and a fine 0.5 mm pitch. Engineered with a unique floating structure embedded inside the base housing, it effectively absorbs mounting misalignment errors during assembly, ensuring precise and secure mating even in applications requiring multiple stacking connectors.

The housing is made of Liquid Crystal Polymer, providing robust durability in harsh environments, while female contacts fabricated from bronze with gold plating offer excellent conductivity and contact resistance. Each contact supports up to 500 mA current capacity and carries a voltage rating of 50 V, suitable for industrial and automotive electrical standards.

Designed for reliable vibration resistance, the self-cleaning dual beam contact structure maintains stable electrical connections under severe mechanical stresses. Large mating guides are integrated to prevent incorrect insertion and to ease the mating process, with alignment movement allowance of ±1.2 mm in both X and Y directions.

The connector operates reliably across a wide temperature range from -55°C to 85°C, meeting the rigorous demands of industrial equipment, automotive units, broadcast equipment, base station transceivers, medical instruments, printers, projectors, and smart meters.

The FunctionMAX FX20 series exemplifies high functionality and performance in board-to-board SMT connectors, offering enhanced assembly yield and reducing rework needs due to its floating contact alignment features. The product is manufactured in Malaysia under Hirose's quality standards.

Features a floating structure absorbing mounting misalignment errors ensuring precise mating. Supports 100 contacts arranged in 2 rows with a 0.5 mm pitch for compact PCB design. Constructed with Liquid Crystal Polymer housing and gold-plated bronze female contacts for durability.

Rated at 50 V voltage and 500 mA current per contact for reliable electrical performance. Operating temperature range from -55°C to 85°C suits industrial and automotive applications. Surface mount orientation with straight mount type and stacking height of 15 mm for versatile assembly.

Self-cleaning dual beam contacts improve vibration resistance and contact reliability. Large mating guides prevent incorrect insertion and facilitate secure connections. Ideal for industrial equipment, automotive, broadcast, medical devices, and smart meters.
