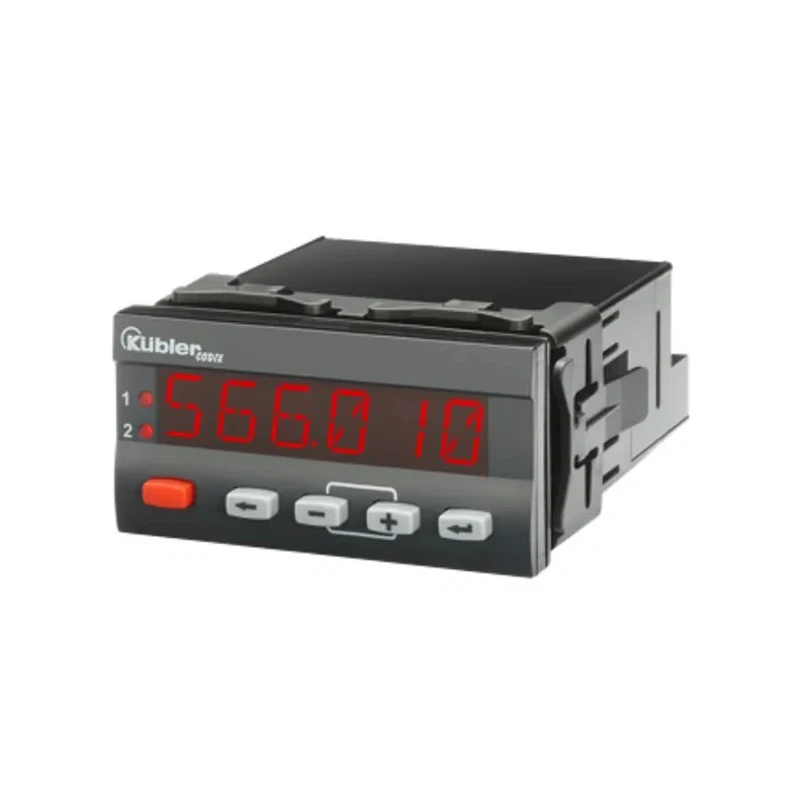

Kubler Digital Panel Multifunction Meter Current LED Display 45mm x 92mm CODIX 566 6.566.010.309

Kubler 6.566.010.309 Digital Panel Multifunction Meter CODIX 566 is designed for precise current measurement with a clear 6-digit LED display measuring 14 mm in height. With panel cutout dimensions of 45 mm by 92 mm and a depth of 90.5 mm, it fits compactly into control panels used in industrial automation and process control systems.

The multifunction meter operates reliably across a wide temperature range from -20°C to 60°C, making it suitable for various industrial and laboratory environments. Its fast sampling rate of 10 readings per second allows for timely and accurate monitoring of electrical currents.

Programming is made simple through the user-friendly interface featuring four keys on the front panel. The device supports application-specific characteristic curves via 12 measurement points and ensures data stability with its first-order digital filter, compensating for unstable input signals commonly encountered in strain-gauge applications.

The multifunction meter includes two relay outputs with changeover contacts for limit value monitoring, complete with hysteresis and ON/OFF delay functions, enhancing process control and safety. The manual totaliser function can be reset independently, allowing effective tracking of process totals.

The meter supports a wide supply voltage range of 10 to 30 Vdc and 90 to 260 Vac, providing flexibility in installation across diverse electrical systems. Additionally, it meets RoHS environmental standards, ensuring compliance with regulatory requirements.

6-digit LED display with 14 mm digit height. Compact panel cutout 45 mm x 92 mm with 90.5 mm depth. Operating temperature range: -20°C to 60°C. Sampling rate of 10 readings per second for fast data acquisition. Two relay outputs with hysteresis and ON/OFF delay.

User programming via front panel keys and 12-point characteristic curves. Manual totaliser function with reset option. Wide supply voltage: 10 - 30 Vdc and 90 - 260 Vac. Digital filtering for stable measurements of strain-gauge inputs.

RoHS compliant for environmental safety.

This Kubler digital multifunction meter is ideal for industrial automation, laboratory tests, manufacturing process monitoring, and electrical control panels. Its precise measurement capabilities and robust design make it suitable for applications requiring reliable current monitoring within compact panels.
