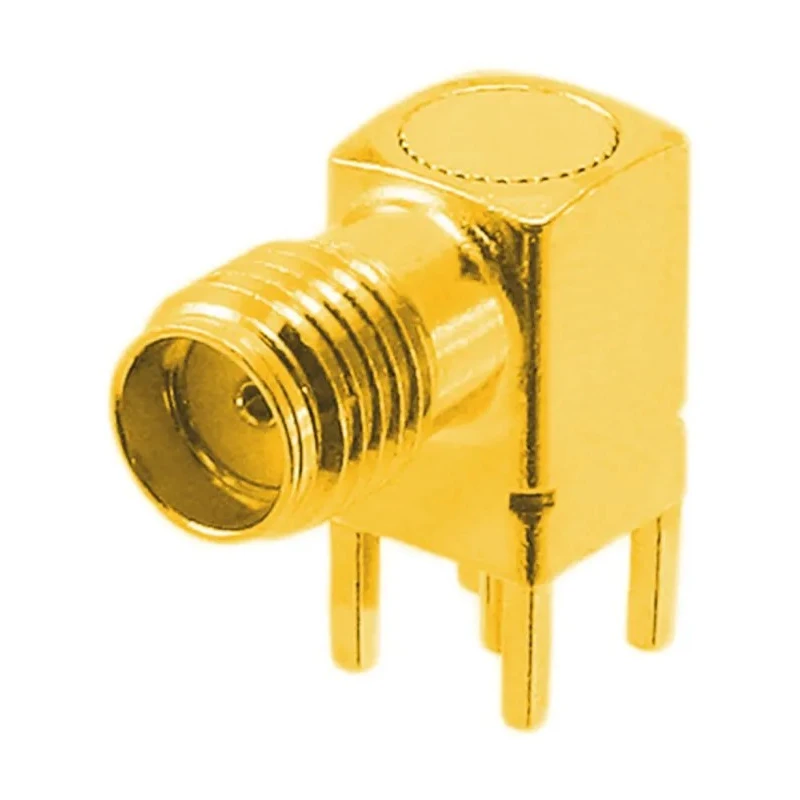

RS PRO Molex SMA Series Coaxial Connector PCB Female SMA 50 Ω Right Angle Body Solder 73391-0083

RS PRO 73391-0083 SMA Series Coaxial Connector is a PCB female SMA connector designed for high-frequency electronic applications requiring reliable and durable connections. Featuring a 50 Ω impedance and right angle body orientation, this connector ensures stable signal transmission in compact spaces, suitable for PCBs where space constraints exist.

The contact material is beryllium copper which offers excellent heat resistance to prevent blowouts during soldering or operation. Gold plating on both body and contact enhances corrosion resistance and durability, ensuring long service life in harsh environments. This connector supports operating frequencies up to 18GHz, making it ideal for telecommunications, Wi-Fi networks, and medical device applications.

Its termination type is solder, designed for through-hole PCB mounting for secure mechanical and electrical performance. The connector is capable of withstanding process soldering temperatures of up to 260°C for two ten-second cycles, facilitating common manufacturing processes. With a threaded coupling mechanism, the connector remains firmly attached, resisting loosening from vibrations.

Lightweight at only 2.89 grams, the right angle design helps route connections efficiently without stressing the PCB. The product contains low levels of halogen, reducing the risk of toxic fumes during a fire, which is particularly relevant for safety-conscious installations.

Applications for the RS PRO 73391-0083 include industrial telecommunications, medical devices, Wi-Fi networks, and any high-frequency PCB-mounted coaxial connector requirements. It is engineered for durability, precision, and reliable signal integrity in demanding electronic environments.

Supports operating frequencies up to 18GHz for high-frequency applications. Constructed with beryllium copper contact material for strong heat resistance. Features gold plating on body and contact for corrosion resistance.

Designed for right angle PCB mount with solder termination ensuring durability. Suitable for medical, telecommunications, and Wi-Fi network applications. Can withstand process temperatures up to 260°C for two ten-second soldering cycles.

Threaded coupling provides vibration-resistant and secure attachment. Lightweight connector weighing only 2.89g minimizes PCB strain. Contains low halogen levels to reduce toxic fumes during fire. Explore more Coaxial Connectors and SMA series connectors on EnvMart for your industrial, telecommunications, and medical equipment needs.
