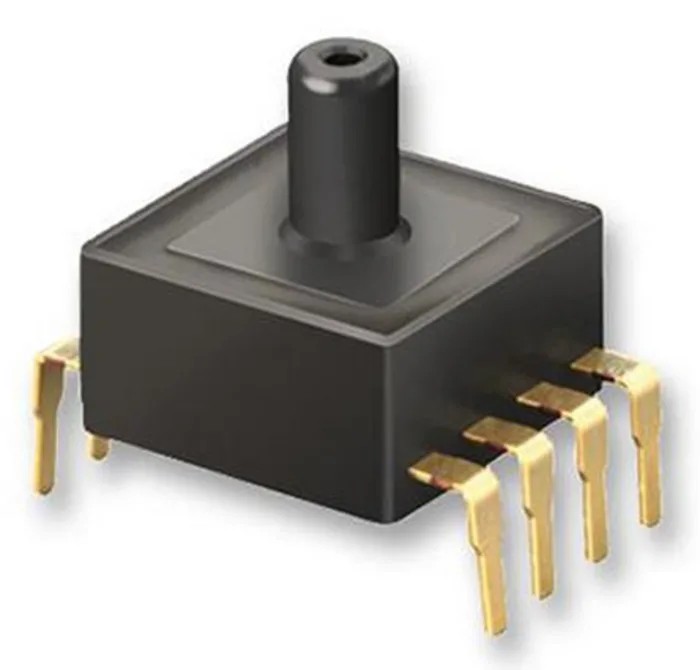

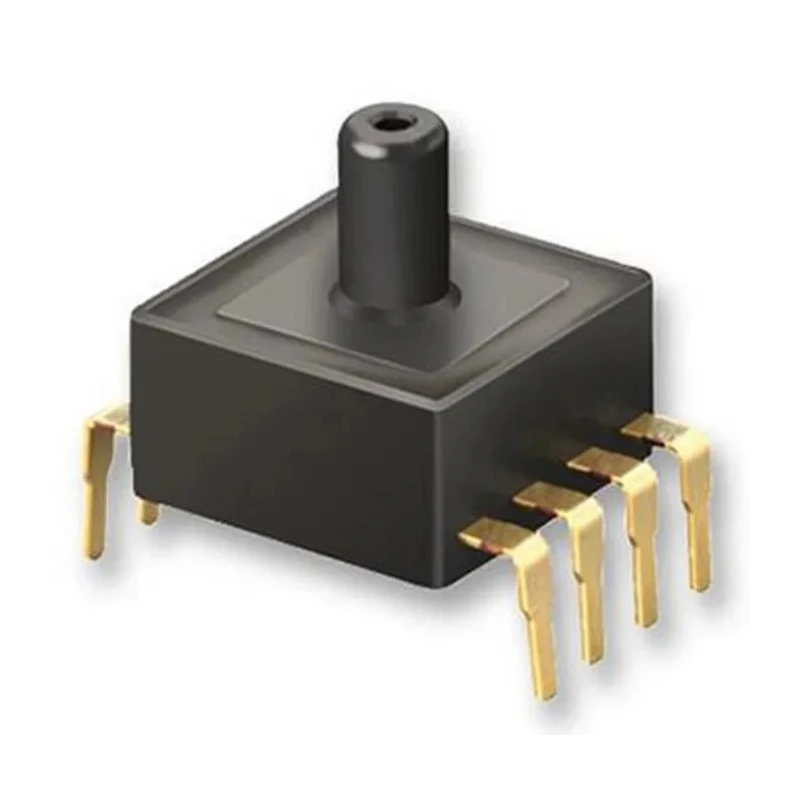

Panasonic Gauge Pressure Sensor Surface Mount 100 kPa, 5.25V Supply, ±1.25 %FS Accuracy ADP5111

Free Delivery in India | Lowest Global Shipping Charges

Panasonic Gauge Pressure Sensor Surface Mount 100 kPa, 5.25V Supply, ±1.25 %FS Accuracy ADP5111

Name: Panasonic Gauge Pressure Sensor Surface Mount 100 kPa, 5.25V Supply, ±1.25 %FS Accuracy ADP5111
Brand: Panasonic
SKU: 380371
Price: 20.22 USD
Availability: InStock



Category Pressure Sensor ICs Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Accuracy	±1.25 %FS (Standard), ±2.5 %FS (Low-pressure type)
Brand	Panasonic
Height	6.5mm
Model	ADP5111
Sensor Type	Gauge Pressure Sensor
Mount Type	Surface
Series	PS-A
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Typical Sensitivity	1.3%FS
Standards/Approvals	RoHS Compliant
Maximum Output Voltage	4.5V
Maximum Supply Voltage	5.25V
Minimum Output Voltage	300mV
Minimum Operating Pressure	-100kPa
Maximum Overload Pressure	100kPa
Base area	7.2 x 7.2 mm

Key Features

Operates with a maximum supply voltage of 5.25 volts.
Provides typical sensitivity of 1.3% full scale.
High accuracy of ±1.25% full scale (standard version).
Temperature operating range from 0 to 50 degrees Celsius.
Compact size with base dimensions of 7.2 x 7.2 mm and height of 6.5 mm.
RoHS compliant, ensuring environmental safety.
Suitable for industrial, medical, and household appliance applications.
Designed with built-in amplifier and compensating circuit for stable output.

Product Description

Panasonic ADP5111 gauge pressure sensor is a high precision sensor from the PS-A series designed with built-in amplification and compensation circuitry to deliver reliable and accurate pressure measurements up to 100 kPa. It is a surface mount type sensor with a compact form factor featuring a base area of 7.2 by 7.2 millimeters and a height of 6.5 millimeters that saves board space in applications.

This sensor operates with a maximum supply voltage of 5.25 volts and outputs a voltage between 300 millivolts and 4.5 volts depending on the pressure measured. The typical sensitivity is 1.3% full scale, with an accuracy of ±1.25% full scale for the standard model, ensuring precise pressure detection for critical applications.

The operating temperature range is from 0°C to 50°C, suitable for a variety of environments while maintaining performance stability. This sensor is RoHS compliant, emphasizing its environmental compliance standards.

Applications for the Panasonic ADP5111 include industrial pressure switches, pneumatic control devices, medical equipment such as blood pressure monitors, compressed air pressure measurement, air beds, and water level detection in household appliances. The compact package and superior accuracy make it ideal for integration in diverse electronic equipment.

Operates from 0 to 50°C maximum operating temperature. Maximum overload pressure is 100 kPa with minimum operating pressure of -100 kPa. Built-in amplifier and compensation circuit for stable output. Compact footprint reduces space usage on PCB.

Suitable for industrial, medical, and household device pressure sensing. Outputs voltage range between 300 mV and 4.5 V depending on pressure. Typical sensitivity of 1.3% full-scale enhances performance accuracy. Manufactured to high quality standards in Japan.

This Panasonic sensor is ideal for engineers and designers requiring a reliable, high-accuracy gauge pressure sensor with surface mounting and a small form factor. Browse more Pressure Sensor ICs and related solutions in the EnvMart platform to meet your industrial and electronic sensing needs.
