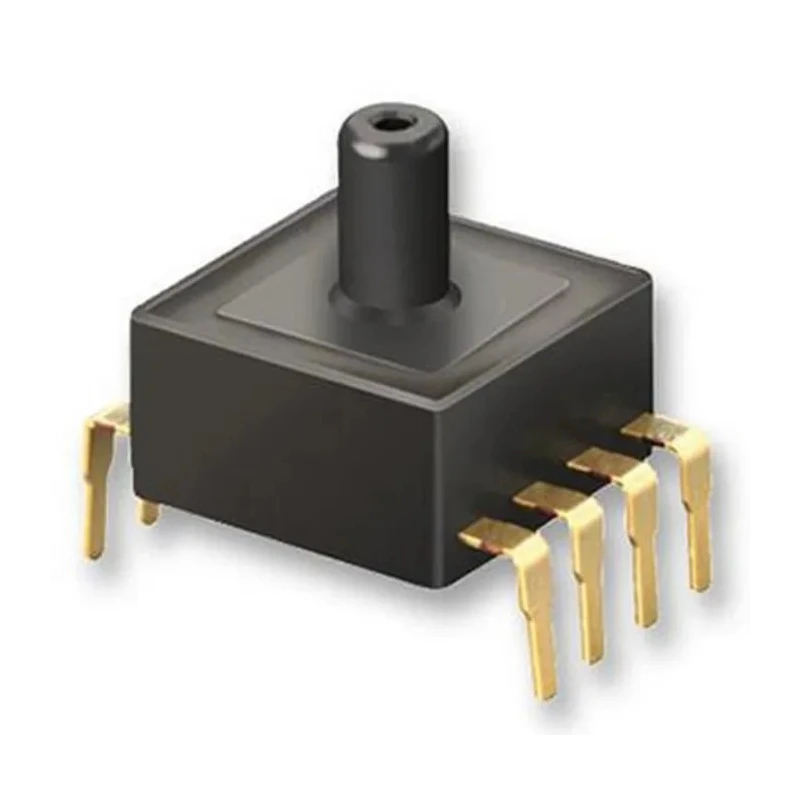

Panasonic Gauge Pressure Sensor Through Hole DIP 6-Pin 3-5V 100kPa 1.3%FS ADP5141
Specifications
| Country of Origin | Japan |
|---|---|
| Accuracy | ±1.25 % |
| Brand | Panasonic |
| Height | 6.5mm |
| Length | 7mm |
| Model | ADP5141 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Through Hole |
| Series | ADP5141 |
| Maximum Operating Temperature | 50°C |
| Port Type | Dip Terminal |
| Package Type | DIP |
| Minimum Operating Temperature | 0°C |
| Typical Sensitivity | 1.3%FS |
| Maximum Output Voltage | 4.5V |
| Pin Count | 6 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Minimum Operating Pressure | 0kPa |
| Maximum Overload Pressure | 100kPa |
| Base area | 7.2 x 7.2 mm |
Key Features
- Operates within a supply voltage range of 3V to 5V.
- Measures gauge pressure up to 100 kPa with a typical sensitivity of 1.3%FS.
- Features ±1.25% accuracy and maximum output voltage of 4.5V.
- Compact size with 7mm length, 6.5mm height, and base area 7.2x7.2 mm.
- Suitable for use up to a maximum operating temperature of 50°C.
- Designed with a dip terminal port and 6 pins for easy circuit board integration.
- Built-in amplifier and compensating circuit ensures high reliability and precision.
- Applications include industrial pressure switches, pneumatic devices, blood pressure monitors, compressed air measurement, and household water level detection.
Product Description
Panasonic ADP5141 is a gauge pressure sensor featuring a through hole DIP 6-pin package designed for high-level precision and reliability. This sensor operates at supply voltages from 3 to 5 volts and is capable of measuring pressures up to 100 kPa with a typical sensitivity of 1.3%FS and an accuracy of ±1.25%.
The device includes a built-in amplifier and compensating circuit that ensures consistent, precise sensor output. Its compact form factor with dimensions of 7 mm length, 6.5 mm height, and a 7.2 x 7.2 mm base area makes it suitable for space-saving designs.
With a maximum output voltage of 4.5V and a dip terminal port, this sensor is optimized for easy mounting and integration into various circuits. It is rated for a maximum operating temperature of 50°C and is engineered without automotive standards, focusing on industrial and medical usage.
Common industrial applications encompass pressure switches, pneumatic devices, and water level detection for household appliances. Medically, it is used in blood pressure monitors and compressed air pressure measurement systems.
Manufactured in Japan and supplied new, the ADP5141 gauge Pressure Sensor meets expectations for performance and durability in demanding electronic component environments. Operates at a supply voltage range of 3V to 5V. Compact 6-pin DIP through hole package for easy PCB mounting.
Measures pressures up to 100 kPa with ±1.25% accuracy. Built-in amplifier and compensation circuit for high reliability. Typical sensitivity of 1.3%FS ensures accurate performance. Maximum output voltage of 4.5V. Maximum operating temperature of 50°C.
Applications in industrial, medical, and household appliance pressure sensing. Made in Japan with new product condition. Explore more sensor solutions in EnvMart's Electronics & Electricals category for precision pressure measurement components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure that this gauge pressure sensor can measure is 100 kPa.
The accuracy of this sensor is ±1.25%.
It operates within a supply voltage range of 3V to 5V.
The typical sensitivity of this pressure sensor is 1.3%FS.
The dimensions of this model are 7 mm in length, 6.5 mm in height, and it has a base area of 7.2 x 7.2 mm.
The maximum operating temperature for this sensor is 50°C.
This sensor has 6 pins.
It uses a through hole mounting type with a dip terminal port.
The maximum output voltage of this sensor is 4.5V.
This sensor is suitable for applications such as industrial pressure switches, pneumatic devices, blood pressure monitors, and household water level detection.
The minimum operating temperature for this sensor is 0°C.
The Panasonic ADP5141 is manufactured in Japan.
