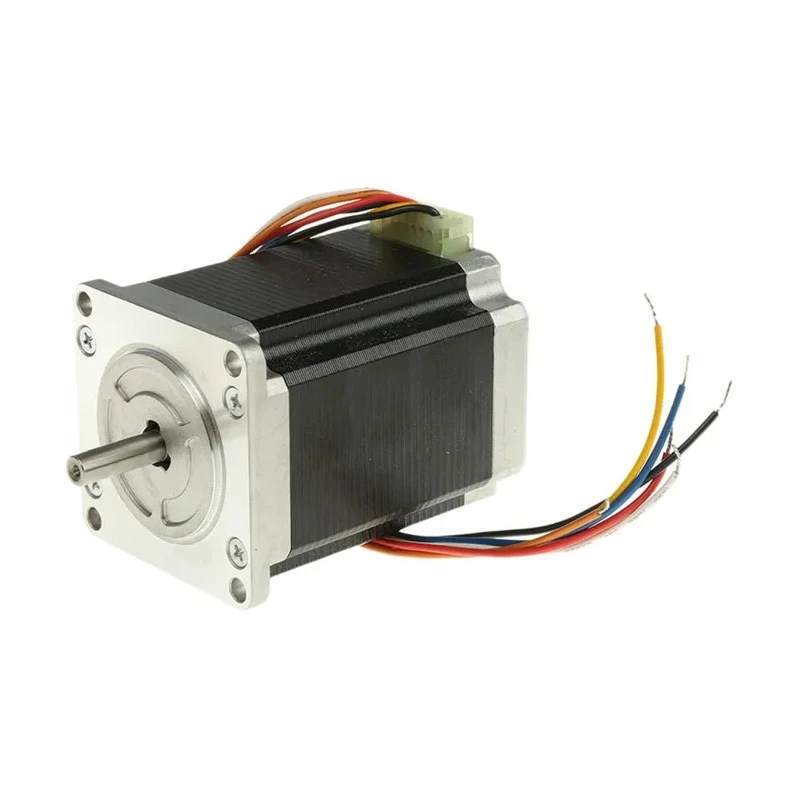

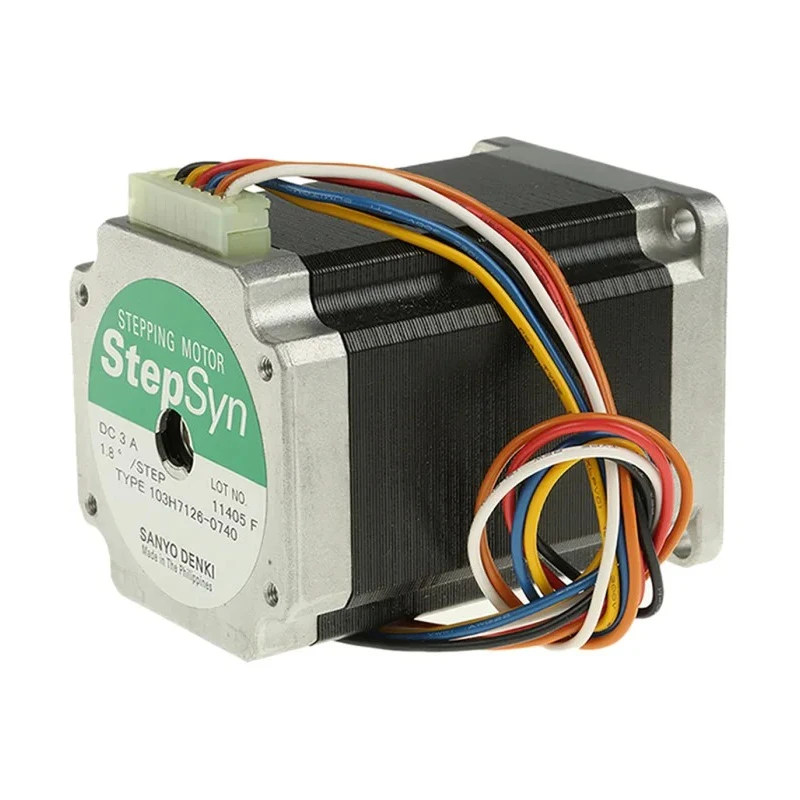

Sanyo Denki SANMOTION 103H7 Series Hybrid Stepper Motor 24V, 1.27Nm Torque, 1.8° Step Angle, 56x56 mm Frame 103H7126-0740
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | 103H7126-0740 |
| Depth | 77.3mm |
| IP Rating | IP65 |
| Current Rating | 3A |
| Series | SANMOTION 103H7 |
| Frame Size | 56 x 56 mm |
| Sub Type | Hybrid Stepper Motor |
| Shaft Diameter | 6.35mm |
| Shaft Length | 20.6mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 1.27Nm |
| Winding Arrangement | Bipolar, Unipolar |
Key Features
- This hybrid stepper motor features a 56x56 mm frame size for compact industrial applications.
- The motor's shaft diameter is 6.35 mm with 20.6 mm shaft length for robust mechanical coupling.
- Rated for a current of 3 A, suitable for low-power automation and robotic applications.
- IP65 rated for protection against dust and water, enabling use in harsh environments.
- Compatible with bipolar and unipolar winding configurations for installation flexibility.
- Mountable horizontally or vertically to adapt to various machinery setups.
- Operating temperature range is typically suited between -10°C to +50°C.
- Conforms with CE, RoHS, TUV, and UL standards ensuring safety and compliance.
Product Description
Sanyo Denki 103H7126-0740 SANMOTION 103H7 Series Hybrid Stepper Motor is designed for precise positioning and speed control in industrial equipment such as robotics, CNC machinery, 3D printers, and automotive manufacturing systems. With a 1.8° step angle and 1.27Nm holding torque at a rated voltage of 24V, this motor delivers accurate and reliable motion control.
This stepper motor features a robust 56 x 56 mm frame size and a shaft diameter of 6.35 mm with a 20.6 mm shaft length, supporting secure mechanical connections. The current rating of 3A supports low-power applications while maintaining performance. Its IP65 rating provides excellent protection against dust ingress and water jets, making it suitable for challenging industrial environments. The unit supports both bipolar and unipolar winding arrangements and can be mounted either horizontally or vertically, providing installation versatility.
The motor is engineered to operate reliably within a temperature range of -10°C to +50°C, suitable for demanding manufacturing and automation settings. It complies with important industry standards including CE, RoHS, TUV, and UL certifications, ensuring adherence to quality and safety regulations.
Applications for this stepper motor include precision robotics, CNC equipment, 3D printing, and automotive manufacturing, where exact movement and positioning are critical for product quality and process efficiency. Its sturdy construction and reliable performance make it a preferred choice for engineers and system integrators.
This hybrid stepper motor provides accurate 1.8° step increments for precise control. 1.27Nm holding torque ensures stable position retention under load. Compact 56 x 56 mm frame supports integration into tight spaces. Robust IP65 enclosure protects internal components from dust and water.
Bipolar and unipolar winding configurations enhance installation options. Current rating of 3A optimizes performance in low-power automation systems. Built to meet CE, RoHS, TUV, and UL standards for industrial compliance.
This product expands EnvMart's offering of high-quality stepper motors suited for precise industrial applications. Explore more in the Stepper Motors category for solutions matching varied automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this model is 1.27Nm, providing stable position retention under load.
It features a compact frame size of 56 x 56 mm, suitable for integration into tight spaces.
This hybrid stepper motor operates at a rated voltage of 24V.
The step angle of this stepper motor is 1.8°, allowing for precise control of movement.
It supports both bipolar and unipolar winding arrangements, providing installation flexibility.
The current rating for this model is 3A, suitable for low-power automation applications.
This motor has an IP65 rating, offering protection against dust and water ingress.
It operates reliably within a temperature range of -10°C to +50°C.
The shaft diameter is 6.35 mm with a shaft length of 20.6 mm, supporting robust mechanical coupling.
It conforms to CE, RoHS, TUV, and UL standards, ensuring safety and compliance in industrial applications.
Yes, it can be mounted either horizontally or vertically, providing versatility for various machinery setups.
This model is suitable for applications in robotics, CNC machinery, 3D printing, and automotive manufacturing, where precise movement is critical.
