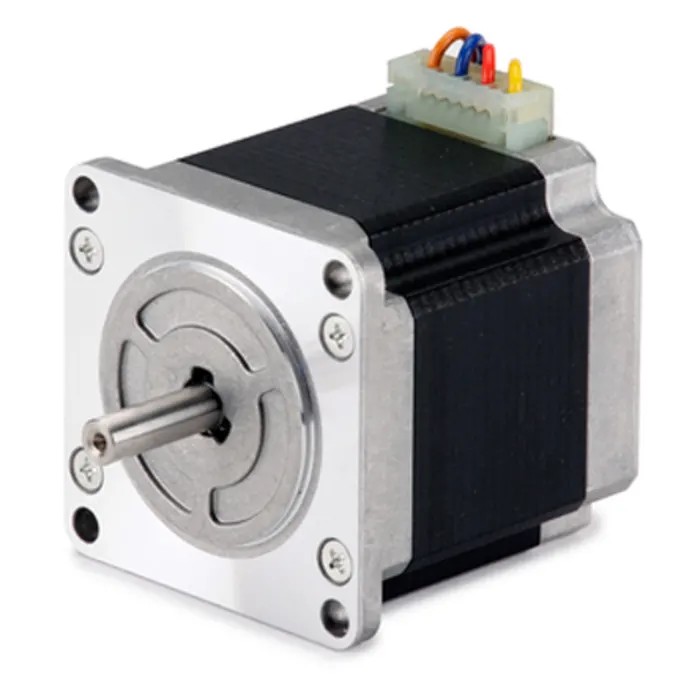

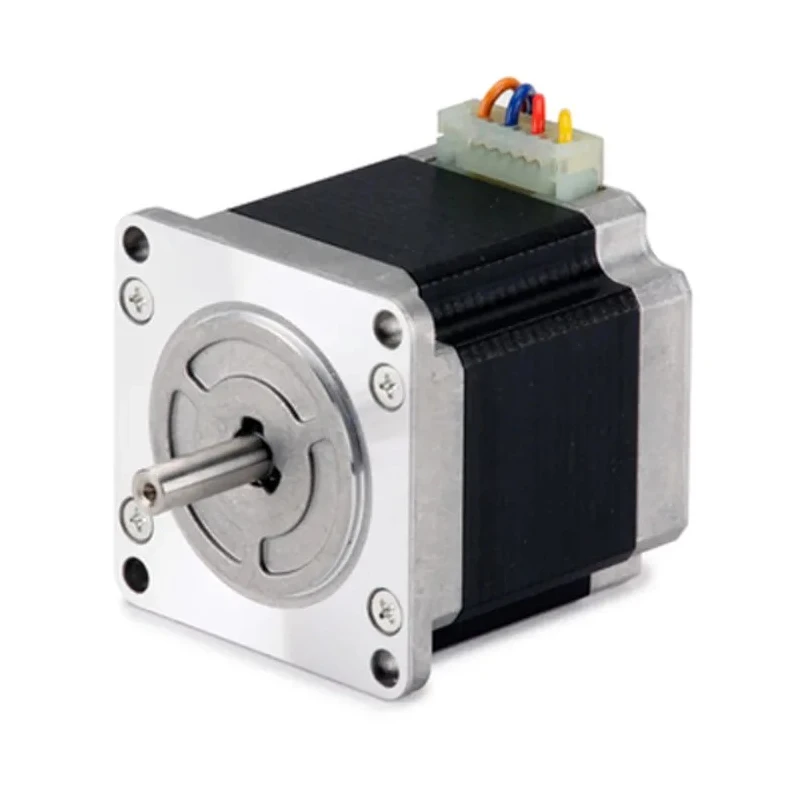

Sanyo Denki 103H7 Series Stepper Motor 24V, 1.1Nm Torque, 1.8° Step Angle, 56x56 mm Frame, 6.35 mm Shaft 103H7123-1749

Free Delivery in India | Lowest Global Shipping Charges

Sanyo Denki 103H7 Series Stepper Motor 24V, 1.1Nm Torque, 1.8° Step Angle, 56x56 mm Frame, 6.35 mm Shaft 103H7123-1749

Name: Sanyo Denki 103H7 Series Stepper Motor 24V, 1.1Nm Torque, 1.8° Step Angle, 56x56 mm Frame, 6.35 mm Shaft 103H7123-1749
Brand: Sanyo Denki
SKU: 145448
Price: 110.54 USD
Availability: InStock



Category Stepper Motors Brand Sanyo Denki Condition New

Specifications

Country of Origin	Philippines
Voltage	24V
Brand	Sanyo Denki
Model	103H7123-1749
Depth	56mm
IP Rating	IP65, IP43, IP40
Width	56mm
Current Rating	4A
Series	103H7
Frame Size	56 x 56 mm
Shaft Diameter	6.35mm
Shaft Length	15.5mm
Standards/Approvals	CE, RoHS Compliant, TUV, UL
Step Angle	1.8°
Holding Torque	1.1Nm
Winding Arrangement	Unipolar, Bipolar
Detent Torque	1000mNm

Key Features

Operates at 24V supply voltage suitable for low-voltage industrial systems.
Compact 56 x 56 mm frame size with a 6.35 mm diameter shaft for easy integration.
Supports both unipolar and bipolar winding arrangements for versatile applications.
Rated current is 4A ensuring suitable power for telecommunication and printer equipment.
Equipped with IP65, IP43, and IP40 ratings ensuring protection in various environments.
Compliant with CE, RoHS, TUV, and UL standards providing assured quality and safety.
Brushless hybrid design requiring no regular maintenance for reduced downtime.
Includes mounting screws for quick installation and setup.

Product Description

Sanyo Denki 103H7123-1749 Stepper Motor is a high-precision hybrid stepper motor designed for industrial automation and control applications. Featuring a 1.8° step angle, it provides accurate and smooth rotary positioning. Its 1.1Nm holding torque ensures a secure grip on connected mechanical components, while the 24V operating voltage supports compatibility with low-voltage systems.

The stepper motor has a compact 56 x 56 mm frame size with a 6.35 mm shaft diameter and 15.5 mm shaft length, making it suitable for integration into small devices such as telecommunication equipment, mainframe computers, and printers. The dual winding configuration options (unipolar and bipolar) enhance its flexibility across diverse industrial setups.

Protection ratings of IP65, IP43, and IP40 allow safe operation under various environmental conditions, contributing to enhanced reliability. The product meets rigorous CE, RoHS, TUV, and UL standards, confirming its compliance with international safety and environmental regulations.

Being a brushless motor, it requires minimal maintenance, saving operational costs and time. The motor is supplied with mounting screws, facilitating straightforward and efficient installation in industrial or laboratory environments.

This stepper motor is ideal for telecommunications, printing machines, and other precision positioning applications in manufacturing and automation sectors. Operates at 24V supply voltage suitable for low-voltage industrial systems.

Offers a holding torque of 1.1Nm for secure equipment attachment. Compact design with 56 x 56 mm frame and 6.35 mm shaft diameter. Supports both unipolar and bipolar winding arrangements. Brushless hybrid design minimizes maintenance requirements.

Includes mounting screws for quick installation. IP65, IP43, and IP40 rated for varied environmental protection. CE, RoHS, TUV, and UL compliant for safety and quality assurance. Explore more Stepper Motors and precision electric motors in the EnvMart industrial catalog for suitable automation and control solutions.
