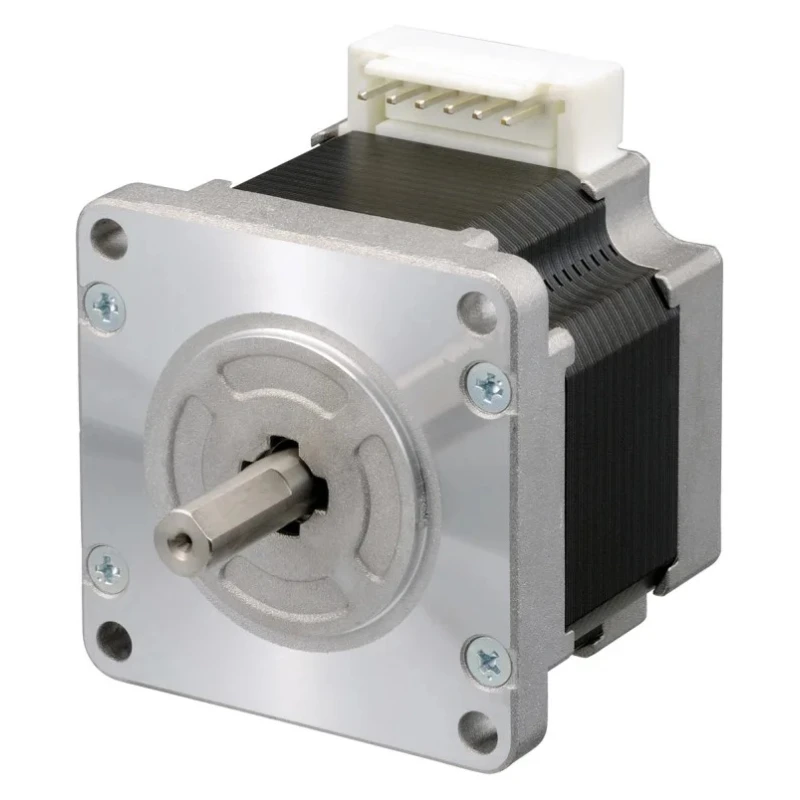

Sanyo Denki 103H7 Series Stepper Motor 24V, 2.1Nm Torque, 1.8° Step Angle, 60x60 mm Frame, 8 mm Shaft 103H7823-0740
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | 103H7823-0740 |
| Depth | 87.3mm |
| IP Rating | IP40 |
| Width | 60mm |
| Mount Type | Horizontal, Vertical |
| Current Rating | 3A |
| Series | 103H7 |
| Frame Size | 60 x 60 mm |
| Shaft Diameter | 8mm |
| Shaft Length | 20.6mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 2.1Nm |
| Winding Arrangement | Unipolar, Bipolar |
Key Features
- This stepper motor features a 1.8° step angle for accurate and repeatable movements.
- The motor frame size is a compact 60 by 60 millimeters suitable for various mounts.
- 8 mm diameter shaft and 20.6 mm shaft length enable secure and stable coupling.
- IP40 rating ensures protection against small foreign objects larger than 1 mm.
- Compatible with horizontal and vertical mounting configurations.
- Operating current rating of 3A supports both unipolar and bipolar winding configurations.
- Constructed for smooth operation with low vibration and open-loop control without encoder.
- Wide temperature range capability from -10°C to +50°C for industrial environments.
Product Description
Sanyo Denki 103H7823-0740 stepper motor from the 103H7 Series offers precise 1.8° step angle and a holding torque of 2.1Nm operating at 24 volts. The 60 x 60 mm frame size and 8 mm shaft diameter with 20.6 mm shaft length provide a compact and robust design suitable for various industrial automation needs.
This stepper motor supports both unipolar and bipolar winding arrangements with a 3A current rating, ensuring versatility for different control setups. Its IP40 ingress protection rating guards against intrusion by small tools and wires over 1 mm in size, enhancing reliability in harsh working conditions.
The motor can be mounted horizontally or vertically, allowing flexible integration within machines and equipment. Low vibration operation enables smooth and precise motion, critical for accurate positioning tasks.
Designed for use in diverse industrial applications, this stepper motor is ideal for process automation, 3D printer drives, CNC milling, and cutting equipment. It features insulation between the winding and frame for electric shock protection, suitable for demanding production environments.
Precise 1.8° step angle for repeatable positioning. Holding torque of 2.1Nm for stable load management. Compact 60 x 60 mm frame size. 8 mm diameter shaft with 20.6 mm length. Supports horizontal and vertical mounting. Unipolar and bipolar winding configurations.
IP40 rated for dust and particle protection. Operating temperature range from -10°C to +50°C. Ideal for automation, CNC, and 3D printing applications.
This product is manufactured in the Philippines and complies with CE, RoHS, TUV, and UL standards, ensuring high quality and safety. The robust build and flexible usage make it a reliable choice for industrial, laboratory, and manufacturing motor control applications.
Explore more Stepper Motors and related automation equipment available for diverse industrial requirements here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this stepper motor is 2.1Nm, providing stable load management for various applications.
This model features a step angle of 1.8°, allowing for precise and repeatable movements in automation tasks.
The voltage rating for this stepper motor is 24V, suitable for various industrial applications.
The motor has a frame size of 60 x 60 mm, a depth of 87.3 mm, an 8 mm diameter shaft, and a shaft length of 20.6 mm.
It supports both unipolar and bipolar winding configurations, providing versatility for different control setups.
The motor has an IP40 rating, which protects against the intrusion of small foreign objects larger than 1 mm.
The operating temperature range is from -10°C to +50°C, making it suitable for various industrial environments.
This stepper motor can be mounted in both horizontal and vertical configurations, allowing for flexible integration into machinery.
The current rating for this stepper motor is 3A, accommodating both unipolar and bipolar configurations.
This model complies with CE, RoHS, TUV, and UL standards, ensuring it meets high quality and safety requirements.
This stepper motor is ideal for applications in process automation, 3D printer drives, CNC milling, and cutting equipment.
This stepper motor is manufactured in the Philippines, ensuring compliance with various international standards.
