RS PRO White Polytetrafluoroethylene Plastic Sheet 300 mm x 300 mm x 15 mm 197-0095

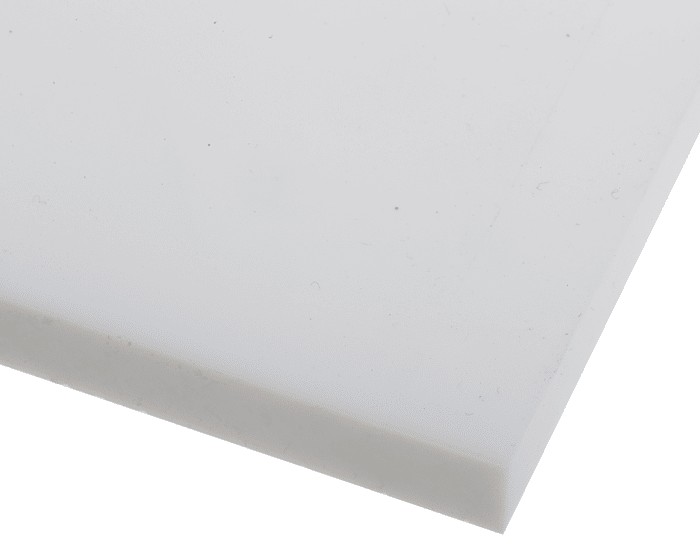

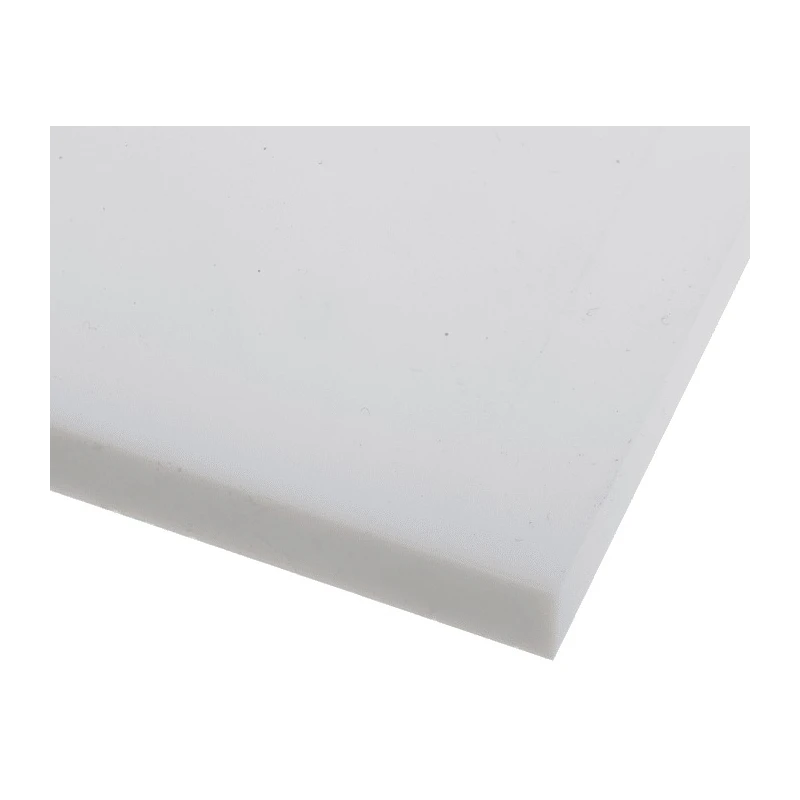

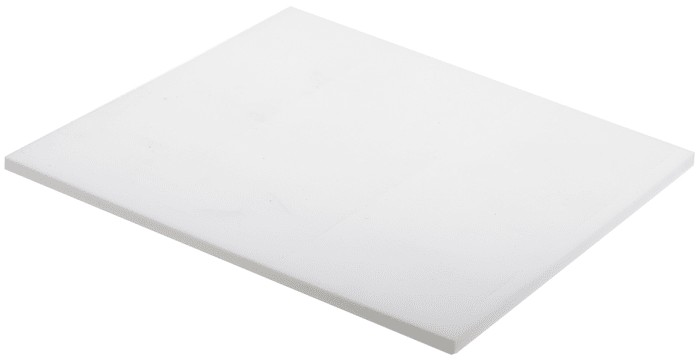

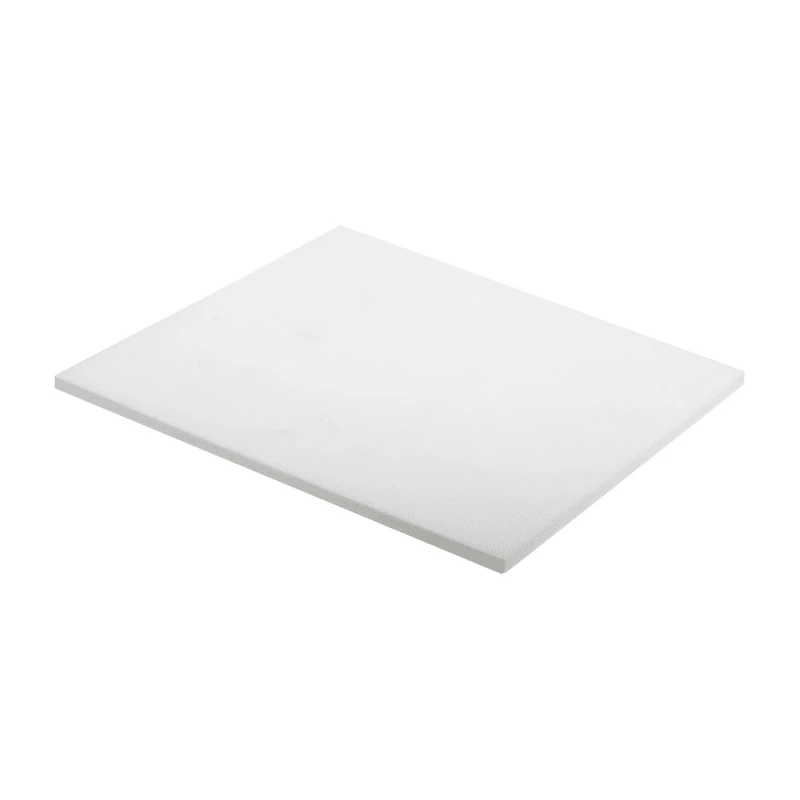

RS PRO 197-0095 White Polytetrafluoroethylene (PTFE) Plastic Sheet is a high-performance solid sheet measuring 300 mm by 300 mm with a thickness of 15 mm. Manufactured from PTFE, the material is renowned for its excellent chemical resistance, outstanding thermal stability, and superior sliding properties due to its very low coefficient of friction. This sheet is ideal for abrasive and chemically aggressive environments where durability and performance are critical.

PTFE's unique properties include a maximum operating temperature of 260°C and exceptional resistance to hot water and chemicals, making the sheet suitable for applications in industrial manufacturing, electrical insulation, food processing, medical industries, aerospace, and pump construction. Its hardness rating of R 118 Rockwell ensures that it can withstand mechanical stresses, while the UL 94 V-0 flame retardant rating adds a critical safety feature for industrial applications.

The sheet has a density of 2.21 g/cm³ and low water absorption of just 0.3%, enhancing its dimensional stability and longevity in wet or humid conditions. Thermal conductivity is low at 0.17 W/mK, which is beneficial in insulating applications, while its impact strength of 12 kJ/m² provides good resistance against mechanical impacts.

Complying with international standards such as DIN 53736, DIN 53479, and ASTM-D 1929, this sheet supports both quality and safety mandates. Its non-stick surface prevents material adherence, although the sheet is difficult to bond or weld, consistent with PTFE properties. These attributes make it an invaluable component in sliding parts, bearings, seals, and chemical-resistant tooling.

Ideal for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, commercial, aerospace, and electrical engineering uses, this RS PRO PTFE plastic sheet offers reliable performance across multiple challenging environments.

Constructed from high-quality polytetrafluoroethylene for outstanding chemical resistance. Precisely sized at 300 mm length, 300 mm width, and 15 mm thickness for versatile fabrication. Excellent sliding properties with very low coefficient of friction reduce wear and maintenance.

High temperature tolerance up to 260°C for robust thermal stability in industrial applications. Hardness R 118 Rockwell ensures mechanical durability under stress. Low water absorption, supporting dimensional stability in moist environments.

Flame retardant UL 94 V-0 rating enhances operational safety. Impact strength rating of 12 kJ/m² offers resistance to mechanical shocks. Meets rigorous DIN and ASTM standards for quality assurance. Explore the extensive range of Plastic Sheets and materials from RS PRO on EnvMart for your industrial and engineering needs.
