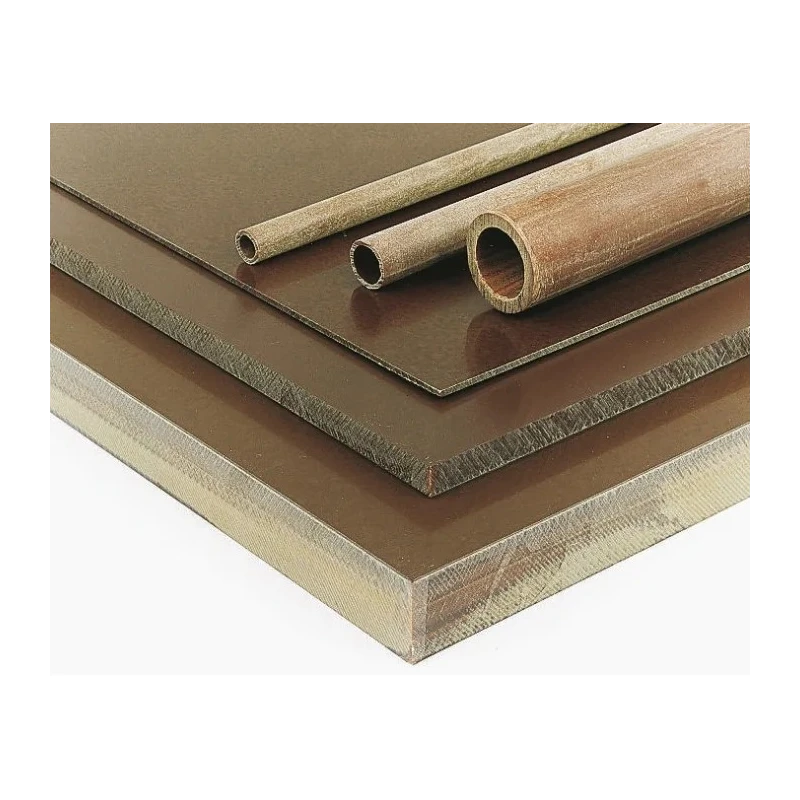

Tufnol Brown Synthetic Resin Bonded Paper Plastic Sheet 590 mm x 285 mm x 20 mm Kraft Paper Phenolic Resin 194-1176

Tufnol 194-1176 brown synthetic resin bonded paper plastic sheet, measuring 590 mm by 285 mm with a thickness of 20 mm, is a high-performance insulating material made from kraft paper and phenolic resin. Designed and manufactured in the United Kingdom, this sheet combines excellent mechanical strength and electrical insulation properties.

This synthetic resin bonded paper sheet (SRBP) complies with BS2572 Type P3 and the equivalent EN 60893 type PF CP 206 standards, previously known as BS5102 Type 1 and BS1137 Type 1. It has a density of 1.36 g/cm³ and exhibits a very low water absorption rate of 0.01%, which enhances its stability in moist environments.

With a thermal conductivity of 0.26 W/mK and a maximum operating temperature of 120°C, the sheet is suitable for applications requiring reliable heat resistance. Its impact strength of 2.7 kJ/m² gives it durability in mechanically demanding environments. The inclusion of adhesive backing facilitates easier integration into assemblies.

This material is widely used in industrial, electrical, and manufacturing sectors for making terminal boards, mounting panels, insulating sleeves and bushes, coil formers, busbar supports, brush holders, insulated enclosures, and various insulating spacers and sockets. It can be readily machined and hot punched in thicknesses up to 3.2 mm.

The sheet is ideal for use in electrical insulation applications, automotive parts, and heavy machinery components, where superior durability and thermal properties are paramount. Its proven track record in electrical industries ensures reliability and consistent performance.

The material is synthetic resin bonded paper with kraft paper and phenolic resin laminate. Dimensions are 590 mm length, 285 mm width, and 20 mm thickness. The sheet offers a density of 1.36 g/cm³ and water absorption of only 0.01%.

Thermal conductivity is 0.26 W/mK with a maximum operating temperature of 120°C. Adhesive backing is included for ease of installation. Impact strength is rated at 2.7 kJ/m² ensuring durability. Applications include terminal boards, insulation sleeves, coil formers, brush holders, and busbar supports.
