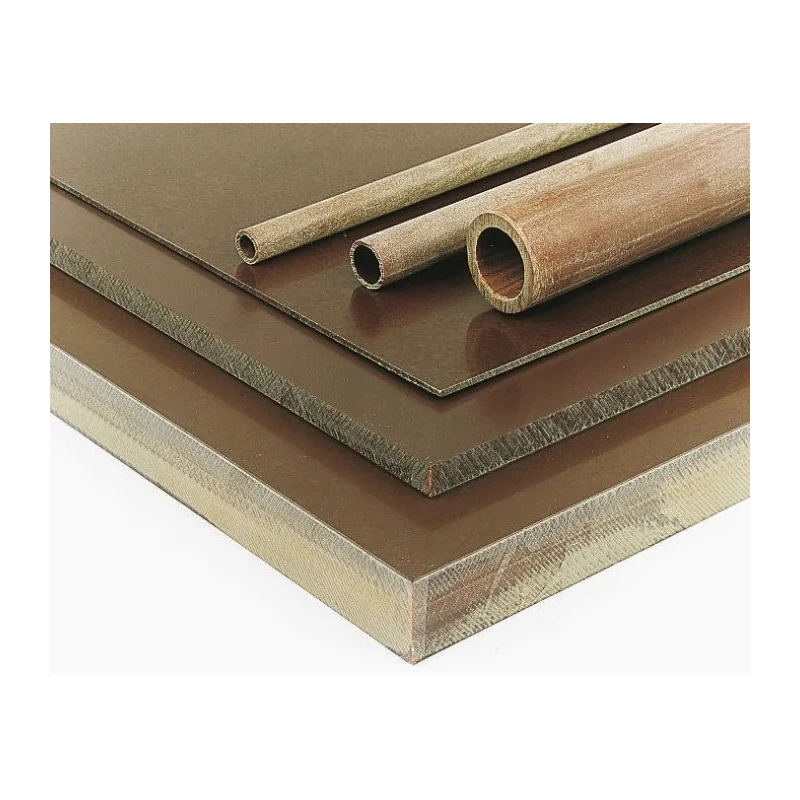

Tufnol Brown Synthetic Resin Bonded Paper Plastic Sheet 590 mm x 285 mm x 12 mm Phenolic Resin Kraft Paper E21776/29
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tufnol |
| Material | Synthetic Resin Bonded Paper |
| Colour | Brown |
| THICKNESS | 12mm |
| Length | 590mm |
| Model | E21776/29 |
| Width | 285mm |
| Density | 1.36g/cm³ |
| Maximum Operating Temperature | 120°C |
| Thermal Conductivity | 0.26W/mK |
| Water Absorption | 0.01% |
| Impact Strength | 2.7kJ/m² |
| Laminate Material | Phenolic Resin, Kraft Paper |
Key Features
- The sheet color is brown with a dense synthetic resin bonded paper composition.
- It incorporates phenolic resin and kraft paper as laminate materials for enhanced durability.
- The product is machinable and suitable for hot punching in thicknesses up to 3.2 mm.
- This sheet is approved as BS2572 Type P3 (EN60893 type PF CP 206), equivalent to BS5102 Type 1 and BS1137 Type 1.
- It has low water absorption of 0.01% and thermal conductivity of 0.26 W/mK.
- Designed for maximum operating temperature up to 120°C for stable performance.
- Impact strength of 2.7 kJ/m² provides mechanical resilience in demanding environments.
- Adhesive backing is supplied, facilitating ease of mounting and installation.
Product Description
Tufnol E21776/29 Brown Synthetic Resin Bonded Paper Plastic Sheet is a high-quality phenolic resin bonded kraft paper laminate designed for demanding electrical and industrial insulation applications. Measuring 590 mm in length, 285 mm in width, and 12 mm in thickness, this synthetic resin bonded paper sheet offers excellent mechanical strength and electrical insulation properties.
Produced under the Kite Brand, this SRBP (Synthetic Resin Bonded Paper) sheet meets the BS2572 Type P3 (EN60893 type PF CP 206) standards, being equivalent to the historic BS5102 Type 1 and BS1137 Type 1 used widely in the electrical industry for many years. The combination of phenolic resin and kraft paper in the laminate provides a durable yet machinable material that supports hot punching processes up to 3.2 mm thickness.
Key physical properties include a density of 1.36 g/cm³, extremely low water absorption rate of only 0.01%, and thermal conductivity of 0.26 W/mK. The sheet is engineered to withstand maximum operating temperatures up to 120°C, making it suitable for many electrical insulation and industrial applications requiring heat resistance.
It features an impact strength rating of 2.7 kJ/m², offering mechanical resilience for installation in demanding industrial environments. Adhesive backing on the sheet simplifies mounting on various surfaces.
Typical applications encompass electrical terminal boards, mounting panels, tag strips, coil formers, insulating sleeves and bushes, busbar and coil supports, brush holders, insulating spacers, plugs, and sockets. These diverse uses demonstrate the material's versatility in electrical engineering, manufacturing, and industrial maintenance contexts.
Manufactured in the United Kingdom, this sheet offers reliability and superior quality in plastic sheet materials used across industrial, electrical, and mechanical domains. The sheet is brown in color and composed of synthetic resin bonded paper with phenolic resin and kraft paper laminates.
Designed for electrical insulation with low water absorption and excellent thermal conductivity. It meets established British standards for synthetic resin bonded papers. Machinable and suitable for hot punching up to specified thickness.
Includes adhesive backing for easy installation. Explore further industrial plastic sheet solutions in the Plastic Sheets category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sheet measures 590 mm in length, 285 mm in width, and has a thickness of 12 mm.
It is designed to withstand a maximum operating temperature of up to 120°C.
This sheet is made from a laminate of phenolic resin and kraft paper, forming a synthetic resin bonded paper.
The impact strength of this model is rated at 2.7 kJ/m², providing mechanical resilience for demanding applications.
It has an extremely low water absorption rate of only 0.01%.
The thermal conductivity is rated at 0.26 W/mK, making it suitable for thermal insulation applications.
Yes, it is machinable and suitable for hot punching processes up to a thickness of 3.2 mm.
It is approved as BS2572 Type P3 (EN60893 type PF CP 206), and is equivalent to BS5102 Type 1 and BS1137 Type 1.
This synthetic resin bonded paper sheet is manufactured in the United Kingdom.
Typical applications include electrical terminal boards, mounting panels, insulating sleeves, and busbar supports, among others.
The density of this model is 1.36 g/cm³.
Yes, it includes adhesive backing, which facilitates ease of mounting on various surfaces.
