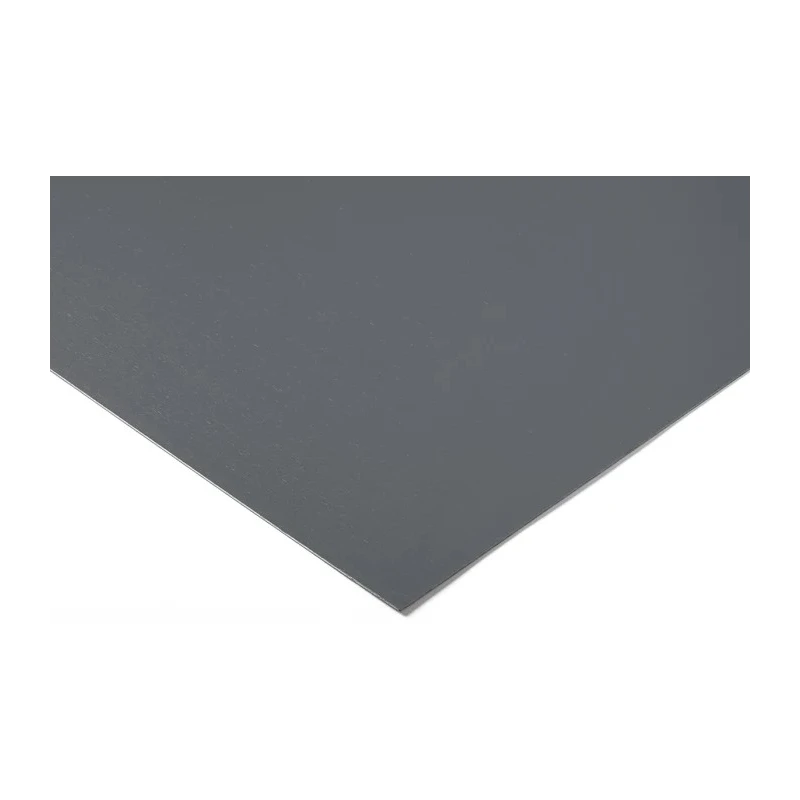

RS PRO Grey PVC Plastic Sheet 1 m x 1 m x 20 mm 704-8214

RS PRO 704-8214 Grey PVC Plastic Sheet is engineered for industrial, mechanical, fluid power, and manufacturing applications where durable and chemical-resistant materials are critical. The sheet measures 1 meter by 1 meter with a thickness of 20 mm, providing a robust platform for various installations and fabrications.

Constructed from polyvinyl chloride (PVC), which is lightweight yet exceptionally strong, the material boasts a density of 1.47 g/cm³, giving it superior mechanical stability. This sheet offers a tensile strength of 55 MPa and a Shore D hardness range of 65 to 80, ensuring excellent resistance to wear and deformation during use.

Its DIN 4102 B1 flammability rating certifies its flame-retardant properties, making it a safer option in environments with fire risk concerns. It can operate effectively up to a maximum temperature of 60°C, suitable for many industrial settings.

The sheet exhibits minimal water absorption at just 0.2%, maintaining dimensional integrity even in moist conditions. Impact strength is rated at 12 kJ/m², allowing it to absorb shocks and impacts without cracking or breaking.

RS PRO plastic sheets are non-adhesive backed, providing flexibility in machining and fabrication processes. These sheets conform to cUR, DIN 4102 B1, UL, and CE standards, ensuring compliance with international safety and quality benchmarks.

Applications include use in chemical plant tanks, electrical components, valves, and pumps, where resistance to chemical attack and physical durability are paramount. Made from high-quality polyvinyl chloride (PVC) material offering lightweight and strong characteristics.

Dimensions of 1 m length, 1 m width, and 20 mm thickness for versatile usage. Density of 1.47 g/cm³ ensures material robustness and stability. Tensile strength of 55 MPa with Shore D hardness between 65 and 80 for mechanical durability.

Certified with DIN 4102 B1 flammability rating for flame resistance and safety. Maximum operating temperature up to 60°C suitable for moderate thermal environments. Low water absorption of 0.2% for enhanced dimensional stability under humid conditions.

Impact strength of 12 kJ/m² provides mechanical toughness to withstand shocks. Does not include adhesive backing, facilitating custom fabrication and machining. Complies with industry standards including cUR, DIN 4102 B1, UL and CE certifications.

This RS PRO grey PVC Plastic Sheet suits industrial, laboratory, chemical plants, manufacturing, and water treatment sectors requiring reliable, flame-retardant plastic components. Explore our extensive range of high-quality engineered materials for industrial applications at EnvMart.
