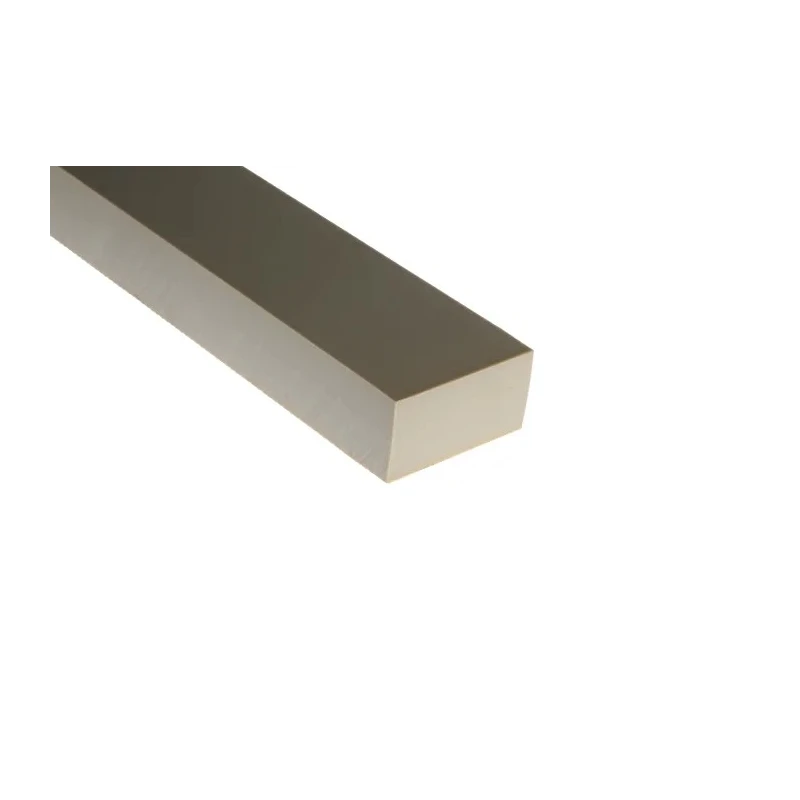

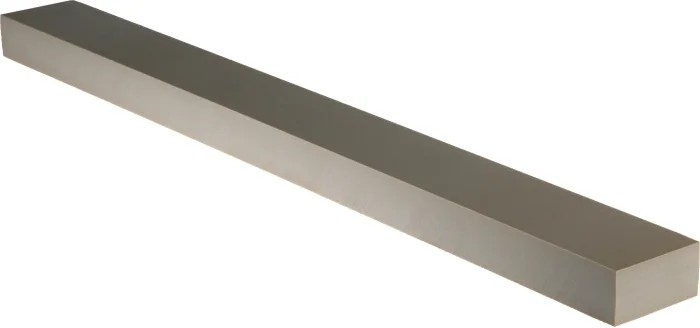

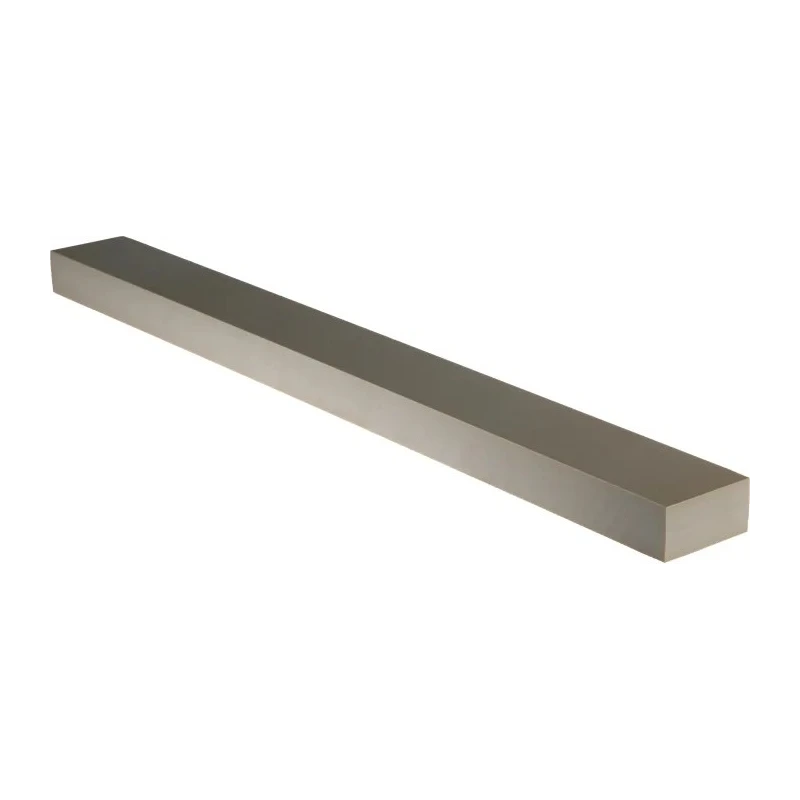

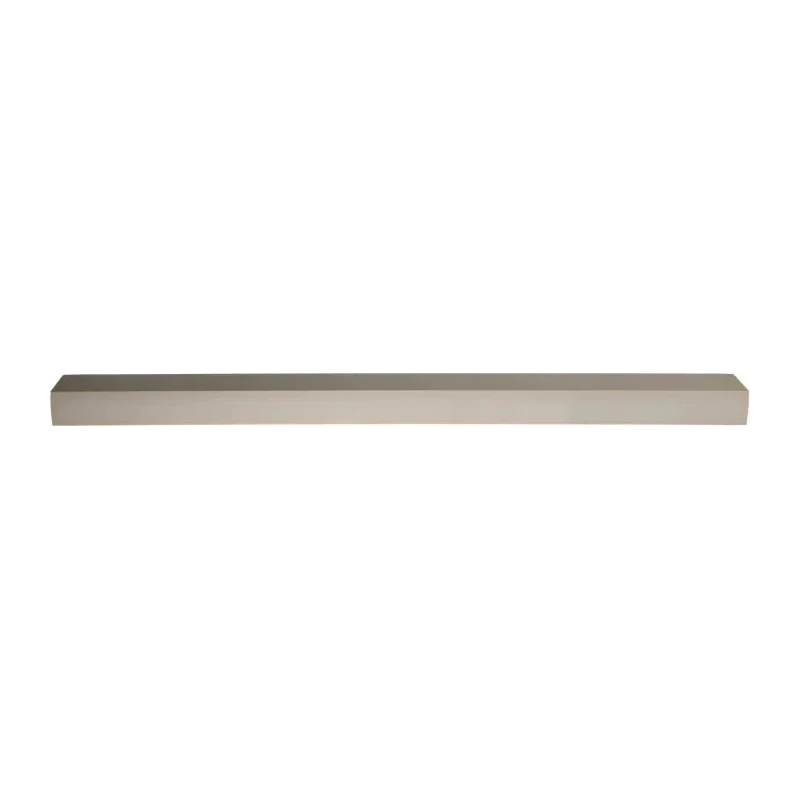

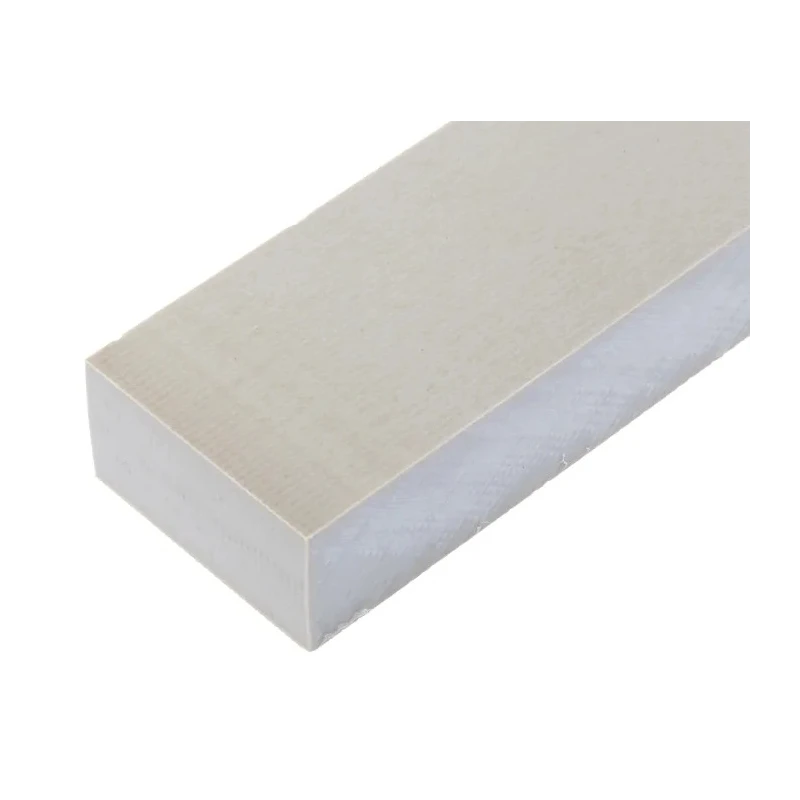

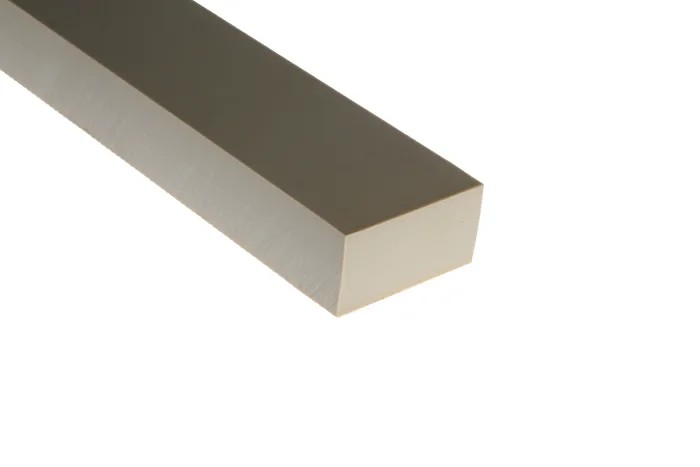

RS PRO Beige Polyetheretherketone Plastic Sheet 500 mm x 50 mm x 25 mm Fibreglass Epoxy Resin Acrylic Fine Weave 514-782

RS PRO 514-782 Beige Polyetheretherketone (PEEK) Plastic Sheet measures 500 mm length, 50 mm width, and 25 mm thickness, constructed with fibreglass, epoxy resin, acrylic, and fine weave cotton laminate for enhanced mechanical properties. This solid plastic sheet offers outstanding toughness, stiffness, and high mechanical strength under demanding industrial and engineering conditions.

This PEEK sheet exhibits excellent resistance to harsh chemicals including acids, bases, hydrocarbons, organic solvents, steam, and seawater. It also demonstrates high creep resistance and stress cracking resistance, making it ideal for long-life applications where component failure reduction is critical.

With a flammability rating of UL 94 V-0, tensile strength of 95 MPa, and maximum operating temperature of 260°C, this product maintains performance in elevated temperature environments. Its low water absorption (0.5%) and thermal conductivity (0.27 W/mK) further enhance suitability for technical industrial uses.

PEEK's excellent wear, abrasion resistance, and machinability allow fabricating components used in oil and gas industries, alternative energy production such as solar and wind, medical devices replacing glass and titanium, and other high-performance sectors. Its electrical insulation properties and sterilizability expand its application range in commercial and laboratory settings.

The sheet measures 500 x 50 x 25 mm with beige color and fibreglass-based laminate. Material: Polyetheretherketone (PEEK) with epoxy resin and acrylic layers. Density of 1.32 g/cm³ and tensile strength of 95 MPa ensure durability.

The product has M 99 Rockwell hardness and UL 94 V-0 flame rating. Maximum operating temperature is 260°C for high-temperature applications. Offers resistance to steam, water, chemicals, and high-energy radiation. Low water absorption rate of 0.5%, contributing to material stability.

Used extensively in oil and gas, energy, medical, and manufacturing industries.
