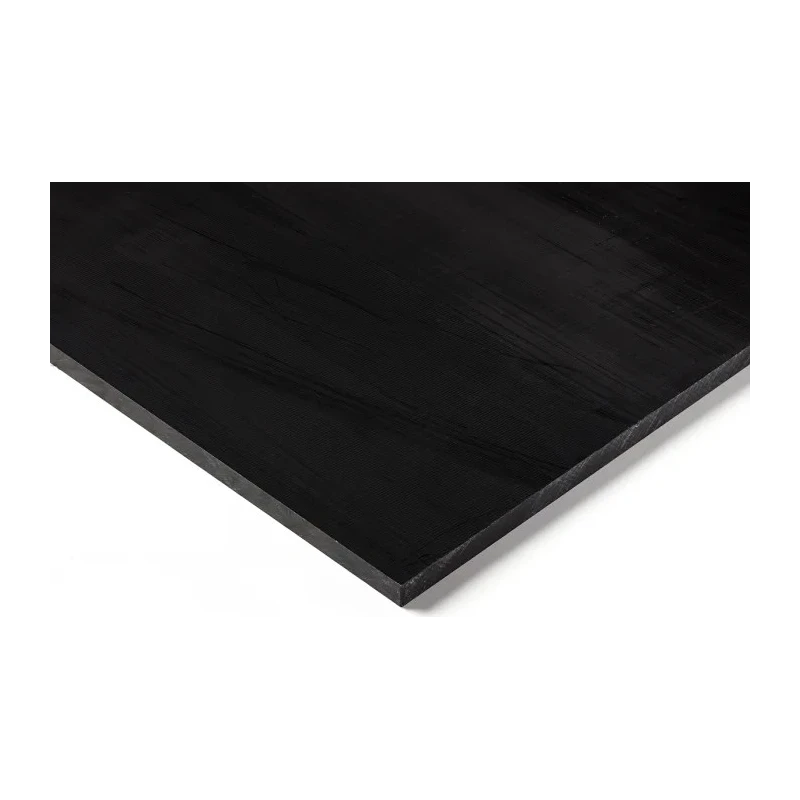

RS PRO Black Nylon Plastic Sheet 500 mm x 500 mm x 10 mm 193-5430

RS PRO 193-5430 Black Nylon Plastic Sheet measuring 500 mm by 500 mm with a thickness of 10 mm provides a high-quality, durable solution for engineering and industrial applications.

Manufactured from Cast Nylon 6, this sheet incorporates Molybdenum Disulphide (MoS2) filler that imparts excellent low-friction and self-lubricating properties, along with enhanced wear resistance and mechanical strength. The sheet exhibits a tensile strength of 75 MPa and a hardness value of 170 Ball Indentation, suitable for robust and long-lasting performance.

With a flammability rating of UL94 HB, the material is flame retardant and safe to use in environments requiring such compliance. It resists water absorption at a rate of 6%, maintaining dimensional stability in moist conditions. Thermal conductivity is 0.33 W/mK, and the sheet is rated for maximum operating temperatures up to 170°C with a melting point of 217°C.

The impact strength of 7.5 kJ/m² combined with excellent resistance to common oils, greases, fuels, and solvents makes this sheet ideal for manufacturing components such as bushes, bearings, gears, and wheels which require reliable performance under mechanical stress.

Additionally, the sheet offers electrical insulation and UV resistance, rendering it highly versatile across automotive, manufacturing, laboratory, and industrial machinery sectors.

Standards and approvals include DIN 5014, ISO 9001, REACH, and RoHS, ensuring compliance with international quality and environmental requirements. The Cast Nylon 6 material delivers high mechanical strength and durability.

Molybdenum Disulphide filler provides low friction and wear resistance. Dimensions of 500 mm length, 500 mm width, and 10 mm thickness. Flame retardant properties with UL94 HB rating. Water absorption limited to 6% for moisture resistance.

Thermally stable up to 170°C, with melting point at 217°C. Impact strength suited for demanding industrial environments. Resistant to common solvents and oils enhancing longevity. Electrical insulation and abrasion resistance for versatile use cases.
