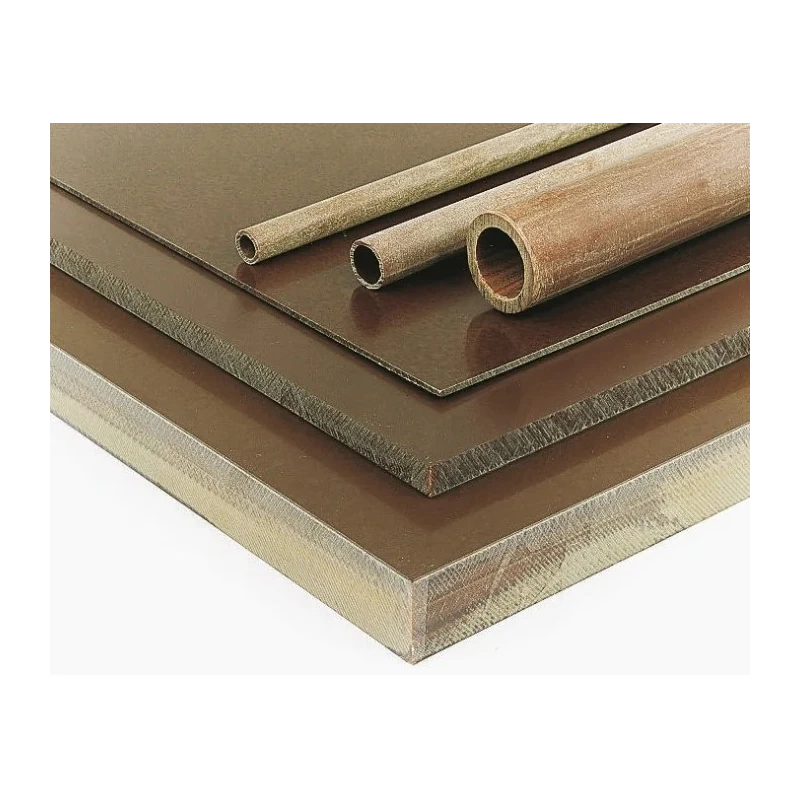

Tufnol Black Natural Laminated Plastic Paper Phenolic Resin Sheet 1.17 m Length, 22.23 mm OD × 15.88 mm ID 194-1255

Tufnol 194-1255 is a black and natural laminated plastic paper sheet incorporating phenolic resin, designed for industrial and electrical insulation applications. This synthetic resin bonded paper (SRBP) sheet, from the reputable Kite brand, measures 1.17 meters in length with precise diameters of 22.23 mm outside and 15.88 mm inside, complemented by a 3.2 mm thickness suitable for various mechanical and electrical assembly uses.

This product features a high maximum operating temperature of 90°C, supporting reliability under thermal stress. Its density is 1.35 g/cm³, with water absorption restricted to 1 mg/cm², contributing to its durability and long service life. The sheet exhibits an impact strength of 2.7 kJ/m², providing resistance to mechanical shocks and stresses.

The Tufnol 194-1255 sheet complies with BS 2572 Type P3 (EN 60893 type PF CP 206), BS 5102 Type 1, and BS 1137 Type 1 standards, ensuring it meets the stringent requirements demanded by the electrical industry for insulation and mechanical stability.

Common industrial applications include its use as terminal boards, mounting panels, tag strips, coil formers, insulating sleeves and bushes, busbar supports, brush holders, insulating spacers, plugs, and sockets. Its machinability allows for hot punching in thicknesses up to 3.2 mm, facilitating custom fabrication suited to precise requirements.

Manufactured in the United Kingdom, this product delivers quality and traceability expected in demanding manufacturing, electrical, laboratory, and industrial settings. Provides excellent electrical insulation properties.

Constructed from synthetic resin bonded paper (SRBP) of the Kite brand. Dimensions include 1.17 m length, 22.23 mm outside diameter, 15.88 mm inside diameter, and 3.2 mm thickness. Maximum operating temperature of 90°C ensures performance in high-temperature applications.

Density of 1.35 g/cm³ and water absorption limited to 1 mg/cm². Impact strength rated at 2.7 kJ/m² for mechanical robustness. Meets BS 2572 Type P3 (EN 60893 type PF CP 206) and related standards applicable to electrical industry use.

Ideal for applications such as terminal boards, mounting panels, coil formers, and insulating sleeves. Manufactured in the United Kingdom with high-quality materials. For sourcing reliable laminated plastic materials for electrical insulation and mechanical applications, explore the Tufnol range and other engineering materials on EnvMart.
