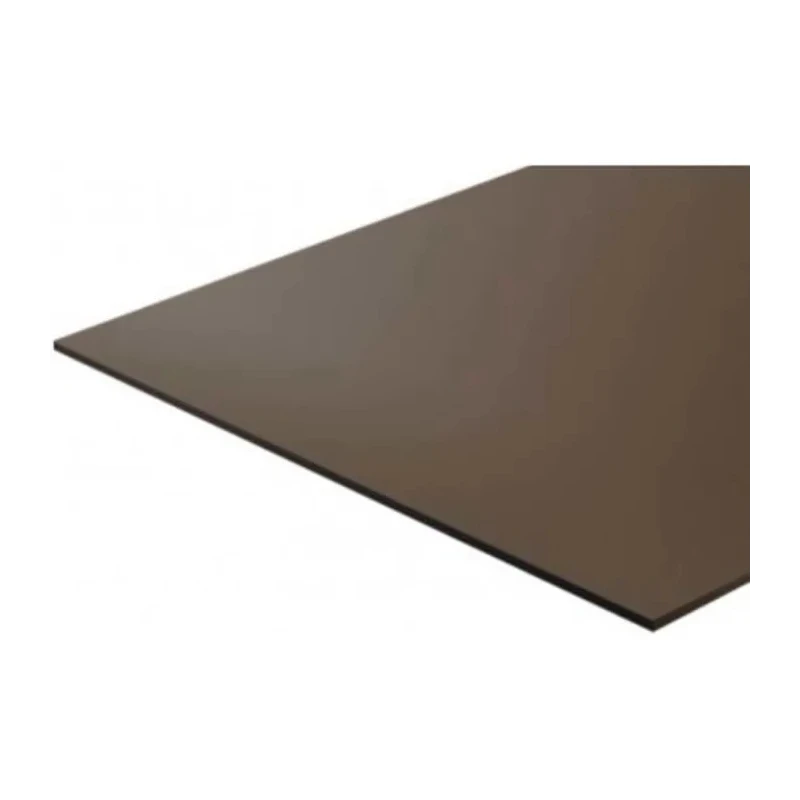

RS PRO Brown Synthetic Resin Bonded Paper Plastic Sheet Phenolic Resin 420mm x 297mm x 3mm 203-5347

RS PRO 203-5347 Brown Synthetic Resin Bonded Paper Plastic Sheet is a reliable industrial-grade laminated plastic sheet made from phenolic resin and paper which ensures high mechanical strength and excellent electrical insulation properties. Measuring 420 mm in length, 297 mm in width, and 3 mm in thickness, this plastic sheet is ideal for applications requiring tough, rigid, and non-metallic materials with low water absorption and superior resistance to chemicals and weather changes.

The sheet boasts a tensile strength of 120 MPa and an impact strength of 3.9 kJ/m², making it suitable for use in demanding industrial and engineering environments. Its low thermal conductivity of 0.2 W/mK supports electrical insulation roles, while its density of 1.35 g/cm³ ensures structural stability. It operates continuously at a maximum temperature of 90°C, and can withstand short temperature peaks up to 120°C.

The adhesive backing facilitates easy mounting on surfaces, and the product conforms to recognized standards including BSEN60893 Type 3-4 PFCP202 and BS2572 Type P1, underlining its quality and reliability. This resin bonded paper laminate finds extensive use in electrical industry components such as bobbins, coil formers, insulating spacers, and sleeving. It is also applicable in manufacturing terminal boards, mounting plates, busbar supports, and cable supports, particularly where electrical insulation is critical.

Synthetic resin bonded paper sheets as plastic laminates provide a cost-effective but efficient insulation alternative to metal sheets. Their toughness against chemical corrosion and weathering further enhances their utility in commercial, construction, laboratory, and manufacturing sectors. Manufactured to high standards in the United Kingdom, it ensures consistent quality for engineering professionals.

This plastic sheet features phenolic resin and paper laminate for durability. It offers a tensile strength of 120 MPa for robust applications. The sheet has low water absorption level of 70mg/cm² ensuring moisture resistance.

Thermal conductivity is low at 0.2 W/mK, enhancing electrical insulation properties. It possesses an impact strength of 3.9 kJ/m² suitable for rigorous industrial environments. Designed to operate at maximum temperatures of 90°C with short bursts up to 120°C.

Its density is 1.35 g/cm³ providing a sturdy yet manageable material. The sheet includes adhesive backing for ease of installation. Ideal for electrical insulation, jigs, fixtures, and structural components. Manufactured in the United Kingdom adhering to BSEN60893 and BS2572 Type P1 standards.
