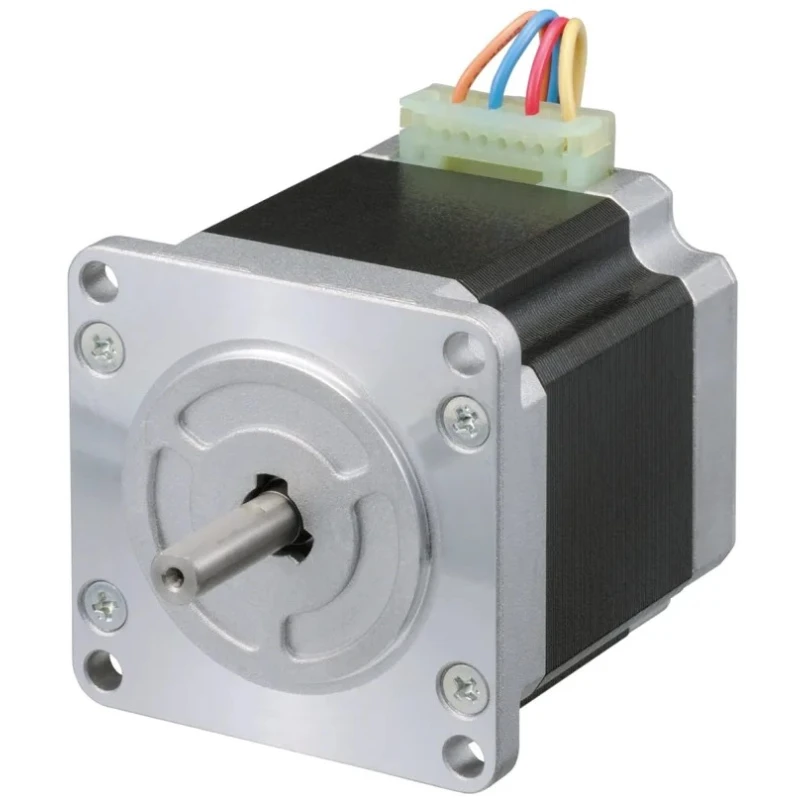

Sanyo Denki 103H7 Series Hybrid Stepper Motor 24V, 1Nm Holding Torque, 1.8° Step Angle, 56x56 mm Frame, 6.35 103H7123-5740

Sanyo Denki 103H7123-5740 is a hybrid stepper motor offering precise and reliable motion control for industrial automation applications. Operating at 24V, it delivers a holding torque of 1Nm with a fine 1.8° step angle, perfect for applications demanding accurate positioning.

The motor’s 56 x 56 mm frame and 6.35 mm diameter shaft with 20.6 mm length combine robustness with compact design, suitable for installation where space is limited. It supports both unipolar and bipolar winding arrangements, allowing flexible control configurations to suit various drive circuits.

Rated for 2A current and 1.5Ω resistance per phase, this motor exhibits efficient torque delivery while maintaining thermal stability. With an IP65 rating, it is protected against dust ingress and water, enabling reliable operation in harsh environments such as industrial manufacturing floors.

Certified with CE, RoHS, TUV, and UL standards, it meets stringent industry requirements ensuring safety and environmental compliance. The motor can operate effectively within a temperature range from -10°C to +50°C, enabling versatile deployment in diverse working conditions.

This stepper motor finds applications in precision machinery such as textile manufacturing equipment, printing presses, 3D printers, and compact disc drives, making it an essential component for modern automation and motion control.

The motor features a 56 x 56 mm frame size for space-efficient installation. Equipped with a 6.35 mm diameter shaft and 20.6 mm shaft length for reliable mechanical coupling. Hybrid stepper technology enables precise half-stepping and micro-stepping movements.

Supports both unipolar and bipolar winding arrangements for versatile control. Rated at 2A current with 1.5Ω resistance per phase for robust torque delivery. IP65 rated for protection against dust and water ingress in harsh environments.

Construction compliant with CE, RoHS, TUV, and UL standards ensuring safety and quality. Operates reliably within a temperature range from -10°C to +50°C. Compact dimensions of 56 mm length, 56 mm width, and 53.8 mm depth reduce overall footprint.

Ideal for use in textile manufacturing, printing presses, 3D printers, and compact disc drives. Discover the performance and quality of Sanyo Denki’s 103H7 Series Hybrid Stepper Motors for industrial, laboratory, and manufacturing applications at EnvMart.
