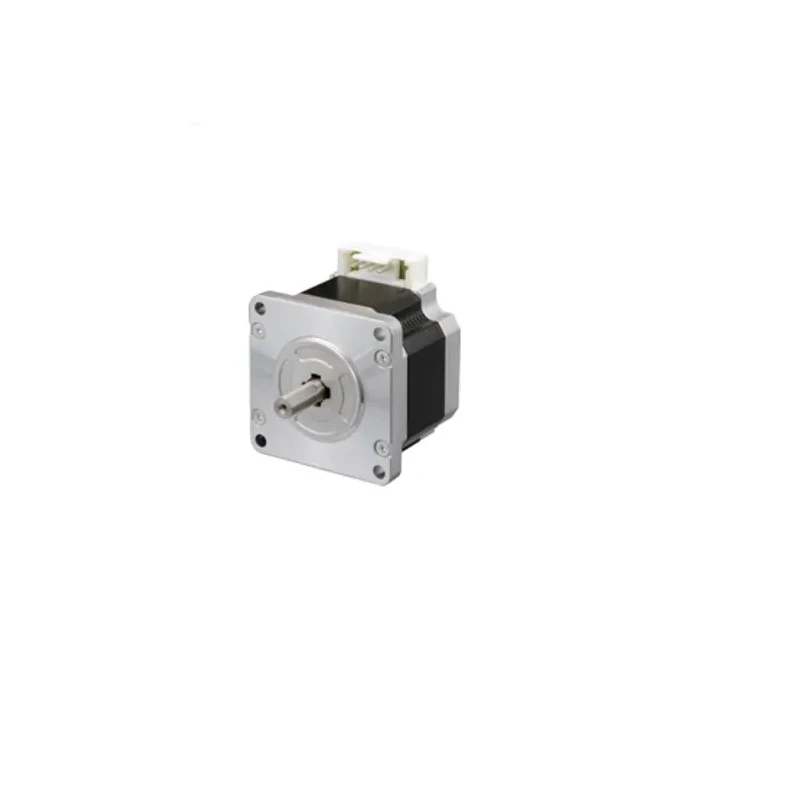

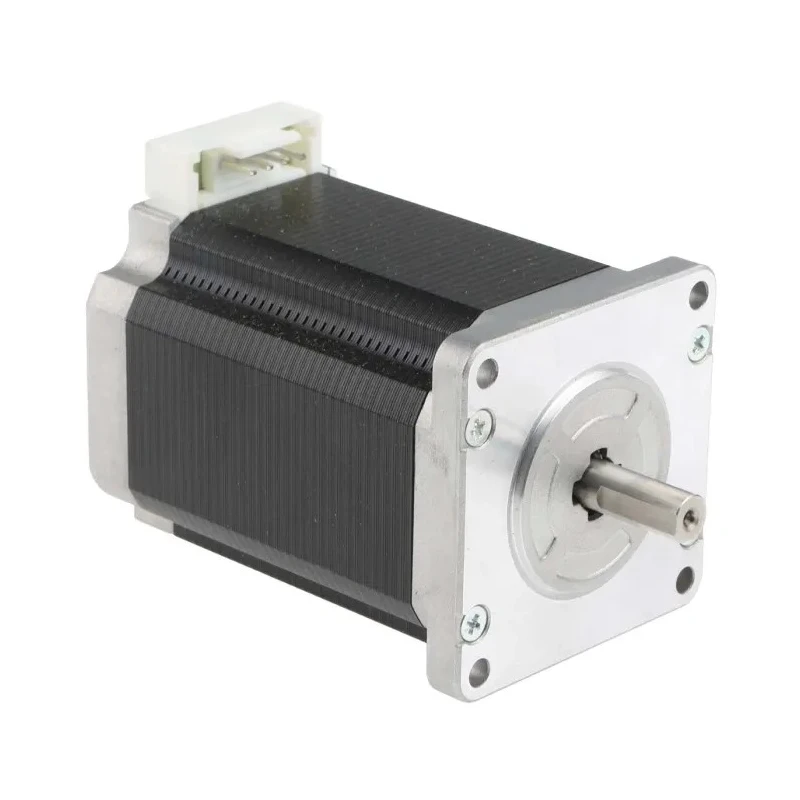

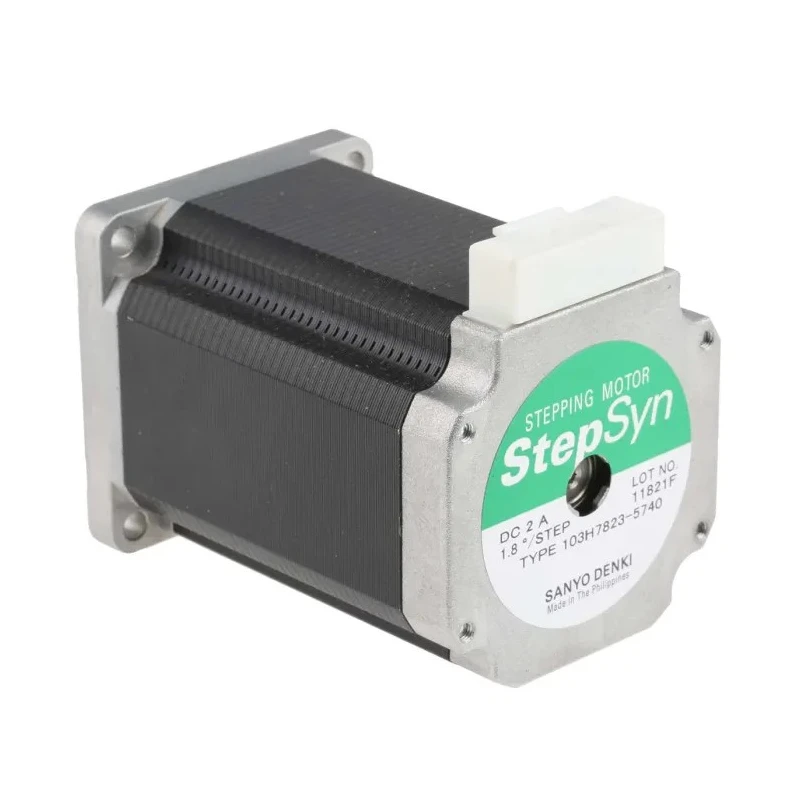

Sanyo Denki 103H7 Series Stepper Motor 24V, 2.7Nm Holding Torque, 1.8° Step Angle, 60 x 60 mm Frame Size, 8 mm 103H7823-5740
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | 103H7823-5740 |
| Depth | 87.3mm |
| IP Rating | IP40 |
| Width | 60mm |
| Current Rating | 2A |
| Series | 103H7 |
| Frame Size | 60 x 60 mm |
| Shaft Diameter | 8mm |
| Shaft Length | 15mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 2.7Nm |
| Winding Arrangement | Unipolar, Bipolar |
Key Features
- This motor offers a 1.8° step angle for accurate positioning.
- It has a compact 60 x 60 mm frame size enabling integration into limited spaces.
- The 8 mm shaft diameter and 15 mm shaft length accommodate standard coupling requirements.
- IP40 rating ensures protection against objects larger than 1 mm for safe industrial use.
- Rated current is 2A with unipolar and bipolar winding arrangements for versatile control.
- Designed to operate between -10°C to +50°C for use in various environments.
- The motor complies with CE, RoHS, TUV, and UL standards for quality and safety.
- Compact depth of 87.3 mm supports installation flexibility.
Product Description
Sanyo Denki 103H7823-5740 103H7 Series Stepper Motor is a precise and durable electric motor operating at 24 volts with a holding torque of 2.7Nm. Featuring a 1.8° step angle and a compact 60 x 60 mm frame size, it is designed for industrial applications requiring reliable and accurate positioning control.
This stepper motor utilizes hybrid technology allowing for seamless half-stepping and micro-stepping capabilities, essential for equipment that demands sensitive and smooth motor movements. It can operate reliably within a wide temperature range from -10°C to +50°C, making it suitable for harsh environmental conditions.
The motor's shaft diameter is 8 mm with a length of 15 mm, and it has a depth of 87.3 mm, making it versatile for many mechanical assemblies. The IP40 protection rating offers finger-safe operation and protection from intrusion of objects larger than 1 mm, enhancing durability in industrial settings.
Current rating stands at 2 amps with support for unipolar and bipolar winding arrangements, allowing flexible driving options. This motor is well-suited for applications including printing presses, textile manufacturing, and 3D printers where precision and reliability are key.
Safety and quality are ensured with certifications including CE, RoHS compliance, TUV, and UL approvals. Made in the Philippines, the 103H7 Series stepper motor meets industrial standards for performance and longevity.
This motor provides accurate positional control with a 1.8° step angle. It delivers 2.7Nm holding torque for heavy load handling without lag. Compact 60 x 60 mm frame with an 8 mm shaft diameter enables integration in tight spaces.
Rated IP40 for protection against objects >1 mm and finger safety. Supports unipolar and bipolar winding arrangements for flexible motor control. Wide operating temperature range from -10°C to +50°C supports diverse industrial environments.
Applicable in printing presses, textile manufacturing, and 3D printing machinery. Explore more Stepper Motors and precise electric motor solutions at EnvMart for your automation, manufacturing, and industrial control gear needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this stepper motor is 2.7Nm, allowing it to handle heavy loads effectively without lag.
This model features a step angle of 1.8°, providing accurate positioning control for various applications.
The motor has a frame size of 60 x 60 mm, a depth of 87.3 mm, an 8 mm shaft diameter, and a shaft length of 15 mm.
This stepper motor operates at a voltage of 24V, suitable for various industrial applications.
The current rating for this motor is 2A, which supports its operation under specified conditions.
This model supports both unipolar and bipolar winding arrangements, allowing for flexible control options.
The motor has an IP40 rating, providing protection against objects larger than 1 mm and ensuring safe operation in industrial environments.
It is designed to operate within a temperature range of -10°C to +50°C, making it suitable for various environments.
The motor complies with CE, RoHS, TUV, and UL standards, ensuring quality and safety in its applications.
This motor is well-suited for applications such as printing presses, textile manufacturing, and 3D printing, where precision and reliability are essential.
The country of origin for this motor is the Philippines, indicating its manufacturing location.
Key features include a compact frame size, a holding torque of 2.7Nm, a step angle of 1.8°, and support for both unipolar and bipolar winding arrangements.
