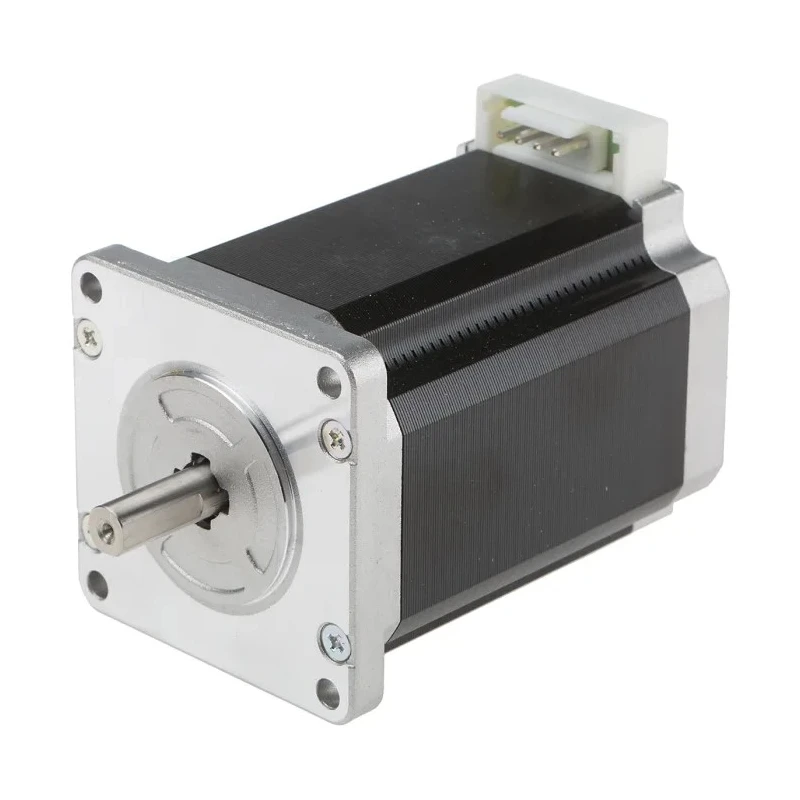

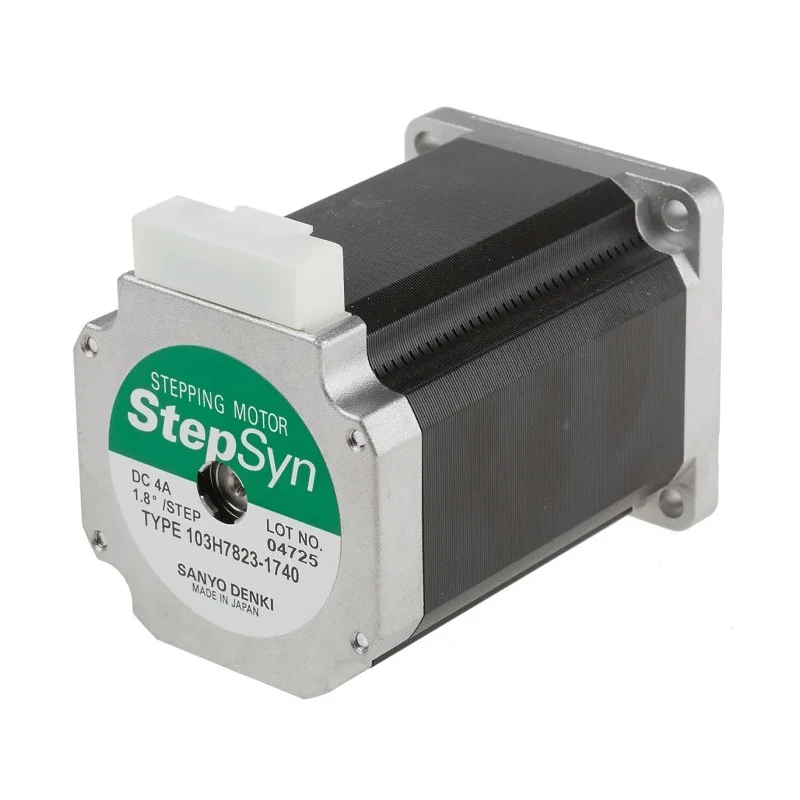

Sanyo Denki 103H7 Series Stepper Motor 24V, 2.7Nm Holding Torque, 1.8° Step Angle, 60x60 mm Frame, 8 mm Shaft 103H7823-1740
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | 103H7823-1740 |
| Depth | 87.3mm |
| IP Rating | IP40 |
| Width | 60mm |
| Mount Type | Vertical, Horizontal |
| Current Rating | 4A |
| Series | 103H7 |
| Frame Size | 60 x 60 mm |
| Shaft Diameter | 8mm |
| Shaft Length | 15mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 2.7Nm |
| Winding Arrangement | Unipolar, Bipolar |
Key Features
- The motor operates at 24V for reliable power delivery.
- Compact 60 x 60 mm frame size fits into tight installation spaces.
- Supports vertical and horizontal mount types for versatile application.
- 8 mm shaft diameter with 15 mm shaft length provides robust coupling.
- Bipolar and unipolar winding arrangements ensure flexible operation.
- IP40 rating ensures finger safety and protection from tools wider than 1 mm.
- Works efficiently from -10℃ to +50℃ operating temperature range.
- Ideal for process automation, printers, scanners, automotive manufacturing, and packaging equipment.
Product Description
Sanyo Denki 103H7823-1740 Stepper Motor from the 103H7 Series is designed for accurate positioning applications such as robotics, CNC machines, and automated equipment. It features a precise 1.8° step angle and a strong 2.7Nm holding torque, powered by a 24V supply.
The 60x60 mm frame offers a compact and space-saving design, suitable for installations in limited space environments. With a shaft diameter of 8 mm and a length of 15 mm, it provides secure mechanical coupling and durability.
Mounting options include both vertical and horizontal configurations to suit various application needs. The motor supports both unipolar and bipolar winding arrangements, allowing for flexible control schemes using an H-bridge for polarity switching.
Operating reliably within a -10℃ to +50℃ range and rated IP40, the unit is protected against accidental finger contact and objects greater than 1 mm. This makes it fit for various industrial environments, including process automation, printing machinery, automotive manufacturing lines, and packaging facilities.
Certified with CE, RoHS, TUV, and UL standards, the 103H7 Series ensures safety and environmental compliance within industrial and manufacturing sectors. The motor operates at 24V for reliable power delivery. Compact 60 x 60 mm frame size fits into tight installation spaces.
Supports vertical and horizontal mount types for versatile application. 8 mm shaft diameter with 15 mm shaft length provides robust coupling. Bipolar and unipolar winding arrangements ensure flexible operation. IP40 rating ensures finger safety and protection from tools wider than 1 mm.
Works efficiently from -10℃ to +50℃ operating temperature range. Ideal for process automation, printers, scanners, automotive manufacturing, and packaging equipment. Compliant with CE, RoHS, TUV, and UL standards for quality assurance.
This stepper motor is widely used in industrial automation, robotics, manufacturing machines, and precision assembly lines. It guarantees consistent performance in demanding environments.
Explore EnvMart for more high-quality Stepper Motors and automation components from trusted industrial brands including Sanyo Denki.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of the Sanyo Denki 103H7823-1740 stepper motor is 2.7Nm.
This stepper motor features a compact frame size of 60 x 60 mm.
The step angle of this motor is 1.8°.
It operates at a voltage of 24V.
This unit supports both vertical and horizontal mounting configurations.
The shaft diameter is 8 mm and the shaft length is 15 mm.
It operates efficiently within a temperature range of -10℃ to +50℃.
This model supports both unipolar and bipolar winding arrangements.
The motor has an IP40 rating, providing protection against finger contact and objects larger than 1 mm.
It is compliant with CE, RoHS, TUV, and UL standards.
The current rating for this stepper motor is 4A.
It is ideal for applications in process automation, printers, scanners, automotive manufacturing, and packaging equipment.
