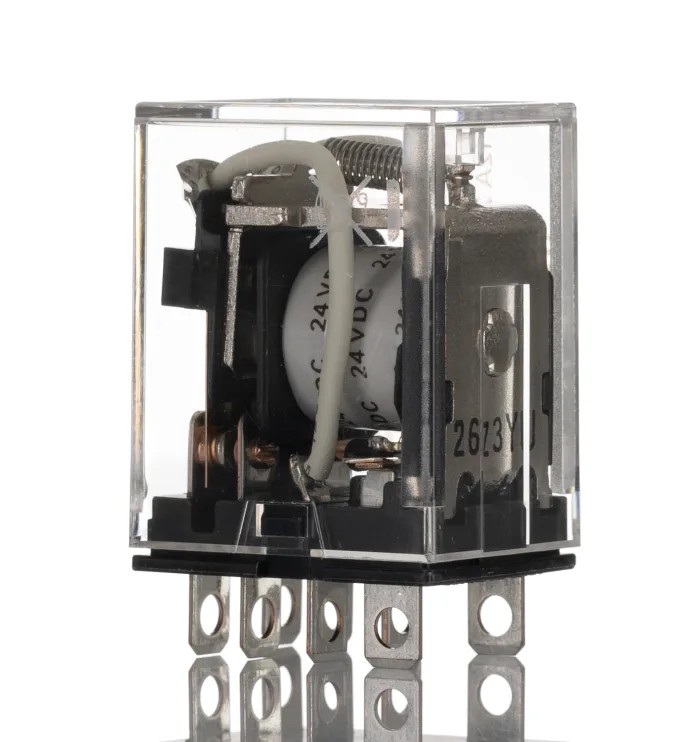

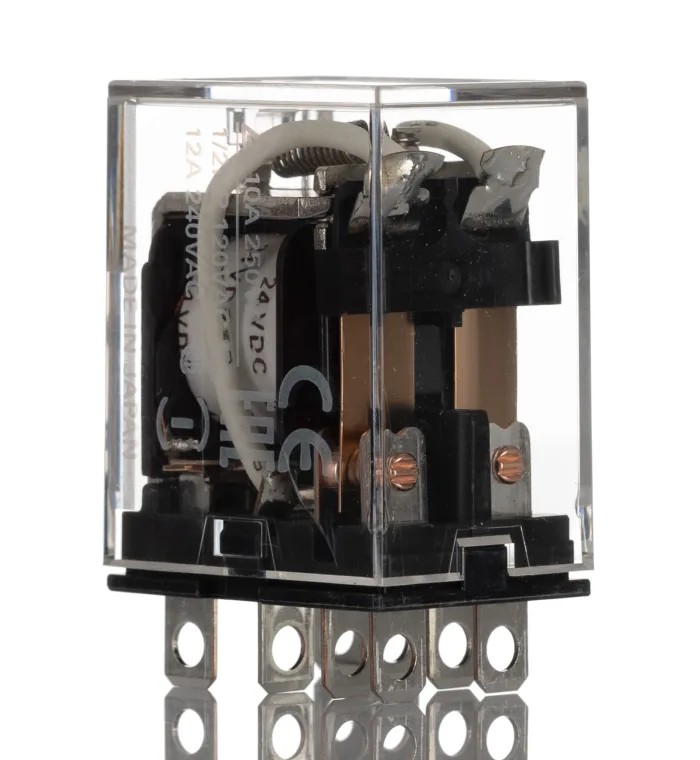

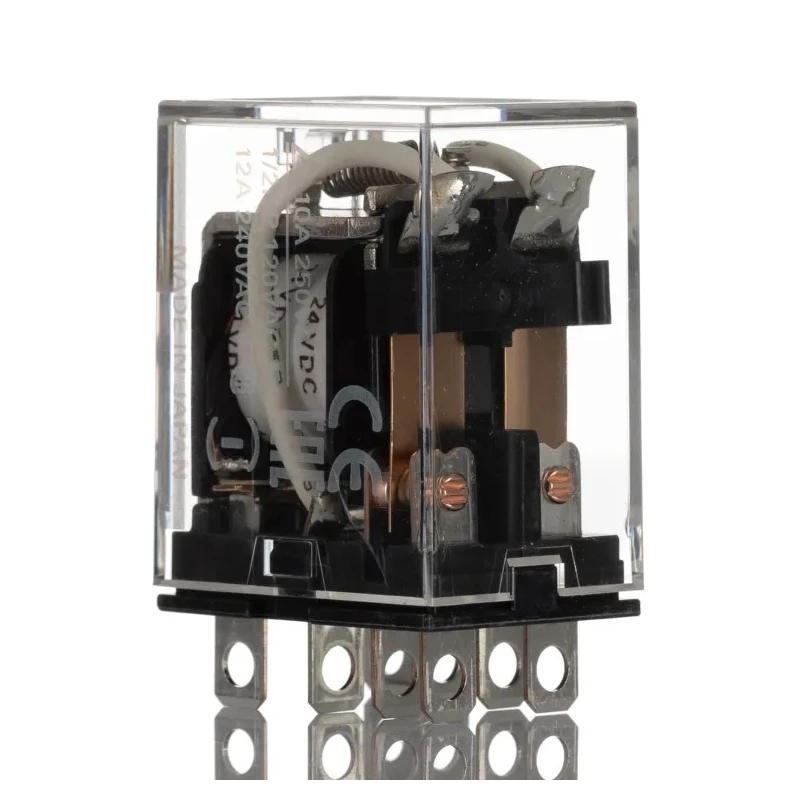

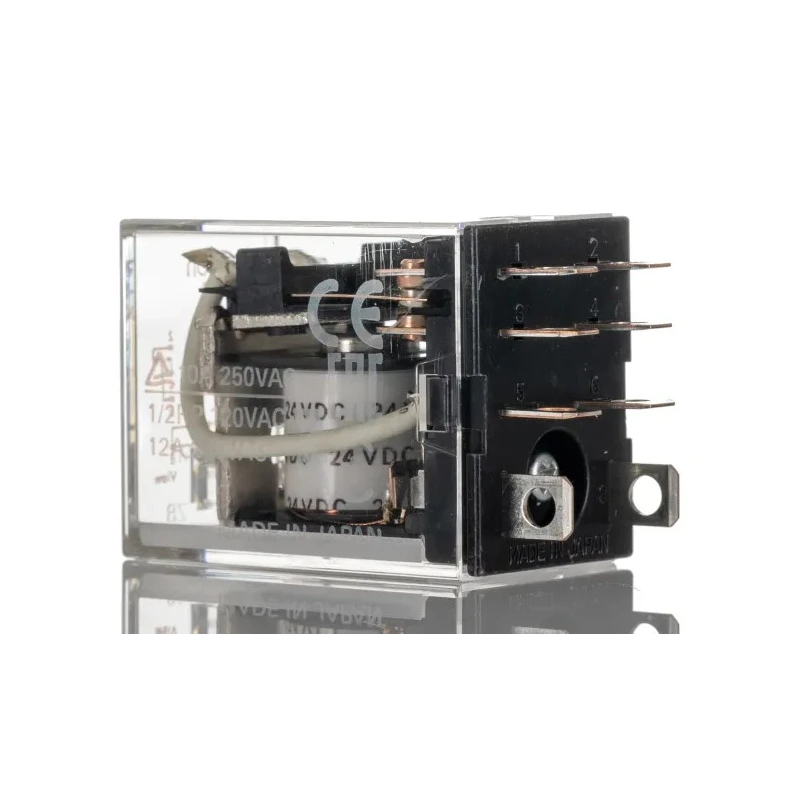

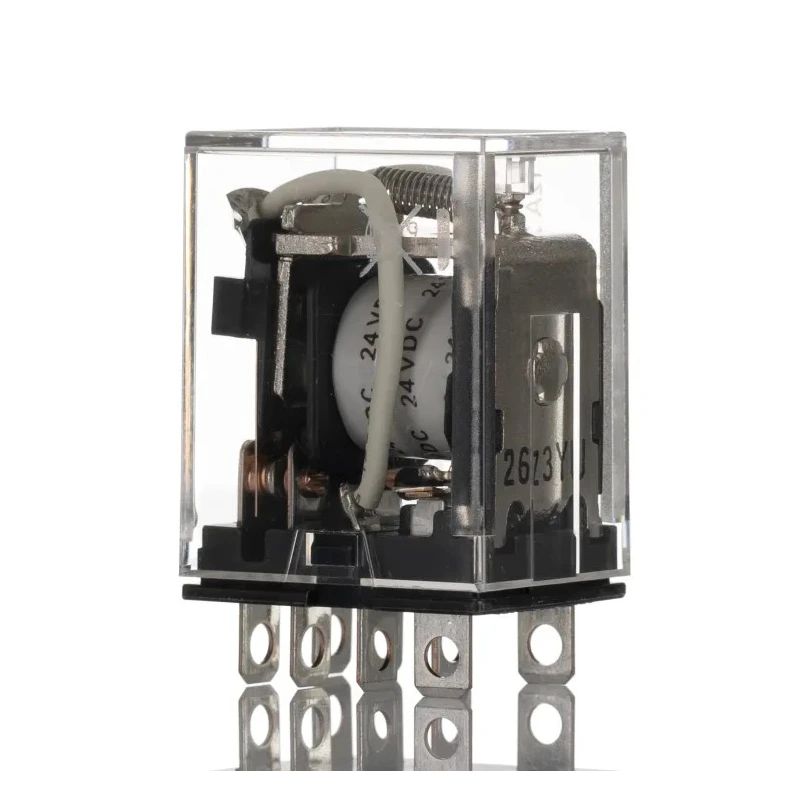

Omron Power Relay 24V DC Coil, 10A Switching Current, DPDT Configuration LY2-D 24VDC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | LY2-D 24VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY2 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 900mW |
| Switching Power | 240W |
| Omron Plug In Non-Latching Relay, 24V dc Coil, 10A Switching Current, DPDTBrand | Omron |
Key Features
- Features a dual-pole double-throw (DPDT) contact configuration for versatile switching.
- Operates on a 24V DC coil voltage with a coil power consumption of 900mW.
- Supports switching current of up to 10A suitable for high-power operations.
- Silver alloy contact material ensures enhanced conductivity and durability.
- Designed for reliable operation between -25°C and 55°C environment temperatures.
- Compact design with dimensions 36mm (W) × 28mm (H) × 21.5mm (L) for ease of integration.
- PCB pin terminal type allows simple installation and secure connection.
- Certified by CSA and UL standards for industrial safety compliance.
Product Description
Omron LY2-D 24VDC power relay is a high-quality component designed for use in automation, electronics, electrical, and mechanical industries. It incorporates a 24V DC coil and a double-pole double-throw (DPDT) contact configuration, providing versatile and reliable switching operations for demanding industrial environments.
The relay is built with silver alloy contacts that offer excellent conductivity and durability, suitable for continuous high-power applications with a 10A switching current. Its coil power consumption is energy efficient at 900mW, and the coil resistance measures 650Ω, aiding in stable operation.
With compact dimensions of 36mm width, 28mm height, and 21.5mm length, the relay fits easily into control panels and automation systems. The PCB pin terminal type facilitates secure and straightforward installation on circuit boards.
Certified to meet CSA and UL standards, this relay withstands operating temperatures from -25°C up to 55°C and provides reliable switching for voltages up to 125V AC and 125V DC. Its contact resistance is low at 50mΩ, ensuring minimal electrical loss and heat buildup during operation.
This product is suitable for general-purpose power applications, including industrial automation systems, control panels, and relay control modules where dependable switching with long service life is essential.
Dual-pole double-throw (DPDT) contact configuration for versatile control. 24V DC coil voltage with a coil power of 900mW for energy-efficient operation. Switching current capacity of 10A for high-power electrical applications.
Silver alloy contact material for reliability and enhanced conductivity. Wide operating temperature range of -25°C to 55°C for varied environments. Compact and easy to mount with PCB pin terminals. Complies with CSA and UL safety and quality standards.
Suitable for switching voltages of 125V AC and 125V DC. Low contact resistance of 50mΩ for efficient current flow and reduced losses. Explore more quality Power Relays and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 10A, making it suitable for high-power electrical applications.
The relay operates on a 24V DC coil voltage, ensuring compatibility with various automation systems.
It has compact dimensions of 36mm in width, 28mm in height, and 21.5mm in length, facilitating easy integration into control panels.
The relay features a dual-pole double-throw (DPDT) contact configuration, allowing for versatile switching operations.
The coil power consumption is 900mW, which contributes to its energy-efficient operation.
It is designed to operate reliably in environments ranging from -25°C to 55°C.
The contacts are made of silver alloy, which enhances conductivity and durability during operation.
This relay is certified by CSA and UL standards, ensuring compliance with industrial safety requirements.
The contact resistance is low at 50mΩ, which helps minimize electrical loss and heat buildup during operation.
It features a PCB pin terminal type, allowing for simple installation and secure connections on circuit boards.
The relay can switch voltages up to 125V AC and 125V DC, making it versatile for various applications.
The relay is manufactured in Japan, reflecting the brand's commitment to quality and reliability.
