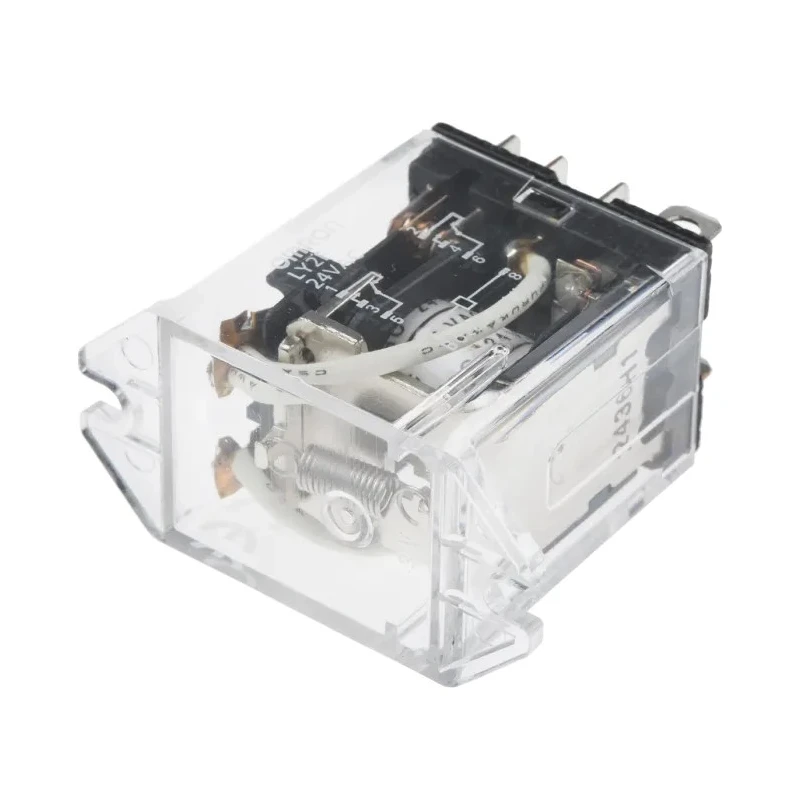

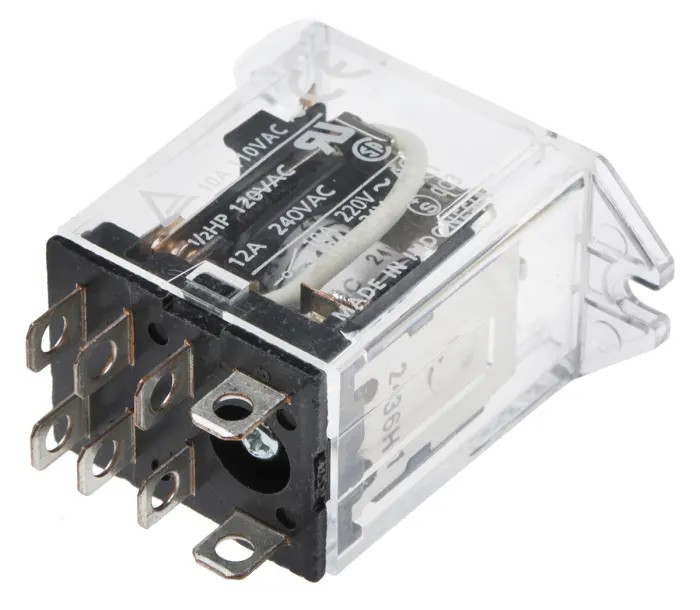

Omron Surface Power Relay 24V AC Coil Voltage 10A Switching Current DPDT Contact Configuration LY2F 24VAC

The Omron LY2F 24VAC Surface Power Relay offers precise and reliable switching performance with a coil voltage of 24 volts AC and a 10 ampere switching current. Its DPDT (Double Pole Double Throw) contact configuration enables versatile electrical control for a range of automation and industrial electronic applications.

This relay's surface mount style with PCB pin terminals allows convenient integration into printed circuit boards, enhancing design efficiency and simplifying assembly. It employs silver alloy contacts with a low contact resistance of 50 milliohms, ensuring efficient conduction and minimal power loss.

Designed to operate within a broad temperature range from -25°C to +55°C, this device is well suited for use across diverse environmental conditions. It can handle switching voltages up to 250V AC and 125V DC, providing flexibility in power management tasks.

The LY2F relay supports up to 500,000 electrical operations and up to 50 million mechanical operations, delivering extended durability and reliability in demanding industrial settings such as automation systems, power distribution, and circuit management.

Its compact form factor, measuring 44 mm in height, 35.5 mm in width, and 22.5 mm in length, allows for efficient use of space on PCBs. Certifications like CSA and UL ensure compliance with recognized safety standards.

Operates at 24V AC coil voltage suitable for standard control systems. Double Pole Double Throw (DPDT) contact configuration allows flexible control options. Maximum switching current rating of 10 amperes for reliable power handling.

Surface mount design with PCB pin terminals for easy installation on circuit boards. Operating temperature range from -25°C to 55°C for use in varied environments. Durable silver alloy contact material ensuring low contact resistance of 50mΩ.

Rated for up to 500,000 electrical and 50 million mechanical operations for long service life. Compact dimensions of 44mm height, 35.5mm width, and 22.5mm length optimize PCB space usage.

This product is ideal for industrial automation, electrical control systems, manufacturing equipment, and power distribution management. It helps deliver consistent performance, safety, and longevity in critical electrical applications.
