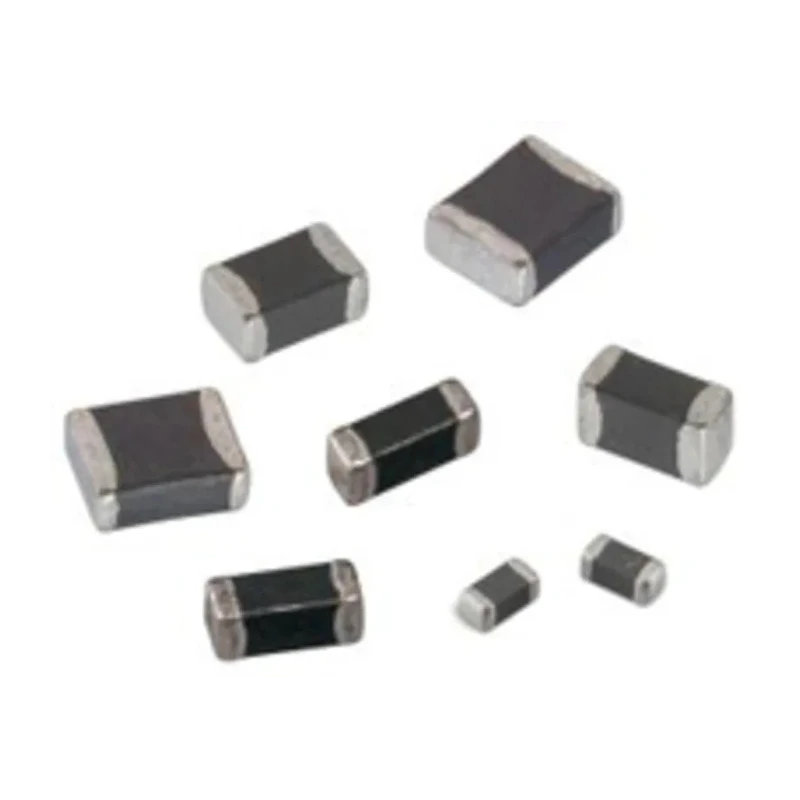

Wurth Elektronik WE-PMI 0805 Unshielded Multilayer Surface Mount Inductor Ferrite Core 470nH ±20% 1.4A 150MHz 74479773147
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.5mm |
| Operating Temperature Range | -40°C to +125°C |
| Length | 2mm |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Series | WE-PMI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 1.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 150MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Multilayer |
Key Features
- Inductance of 470 nH with a tolerance of ±20%.
- Supports a maximum DC current of 1.4A suitable for high current applications.
- Compact 0805 package size with length 2mm, height 0.5mm, and depth 1.25mm.
- Operating temperature range from -40°C to +125°C for versatility in varied environments.
- Maximum DC resistance of 100mΩ ensures efficient electrical performance.
- Core constructed with ferrite material for improved magnetic properties.
- Termination style is surface mount for easy PCB integration.
- Maximum self-resonant frequency is 150MHz, ideal for high-frequency switching applications.
Product Description
Wurth Elektronik 74479773147 WE-PMI 0805 Unshielded Multilayer Surface Mount Inductor features a ferrite core with an inductance of 470 nH and inductance tolerance of ±20%. This compact inductor operates efficiently in the challenging temperature range of -40°C to +125°C, supporting a maximum DC current of 1.4A and maximum DC resistance of 100mΩ, making it suitable for high current applications.
The inductor is designed in the industry-standard 0805 package size, measuring 2mm in length, 0.5mm in height, and 1.25mm in depth, making it ideal for compact PCB layouts and portable electronic devices such as PDAs and digital cameras.
This multilayer surface mount inductor from the WE-PMI series offers a maximum self-resonant frequency of 150MHz and a minimum quality factor of 10, ensuring stable operation at high switching frequencies above 1MHz. The ferrite core enhances magnetic performance while the surface mount termination style facilitates automated assembly processes like reflow soldering.
Wurth Elektronik’s WE-PMI 0805 inductors are renowned for their low profile and multilayer construction, offering improved noise reduction though these are unshielded. They meet environmental compliance requirements including REACH and RoHS.
Inductance of 470 nH with ±20% tolerance. Maximum DC current rating of 1.4A. Compact 0805 package with dimensions 2mm x 0.5mm x 1.25mm. Wide operating temperature range from -40°C to +125°C. Core made of ferrite material for magnetic efficiency.
Maximum DC resistance of 100mΩ for reduced losses. Surface mount termination for easy PCB mounting. Maximum self-resonant frequency of 150MHz for high-frequency applications. Minimum quality factor of 10 ensuring stable inductor performance.
Compliant with REACH and RoHS standards.
This inductor is ideally used in electronic components for power and signal conditioning in industrial, automotive, portable electronics, and manufacturing applications. It is particularly suited for DC/DC converters operating at high switching frequencies and devices requiring compact, low-profile inductors.
Explore more Wurth Elektronik Surface Mount Inductors at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 470 nH with a tolerance of ±20%.
It supports a maximum DC current of 1.4A, making it suitable for high current applications.
This inductor measures 2mm in length, 0.5mm in height, and 1.25mm in depth.
The maximum self-resonant frequency is 150MHz, making it suitable for high-frequency switching applications.
The maximum DC resistance is 100mΩ, which helps ensure efficient electrical performance.
The core is constructed from ferrite material, which enhances its magnetic properties.
It features a surface mount termination style, facilitating easy PCB integration.
The minimum quality factor is 10, ensuring stable operation at high switching frequencies.
It complies with REACH and RoHS environmental standards.
The inductor is packaged in tape and reel format for convenient handling and assembly.
