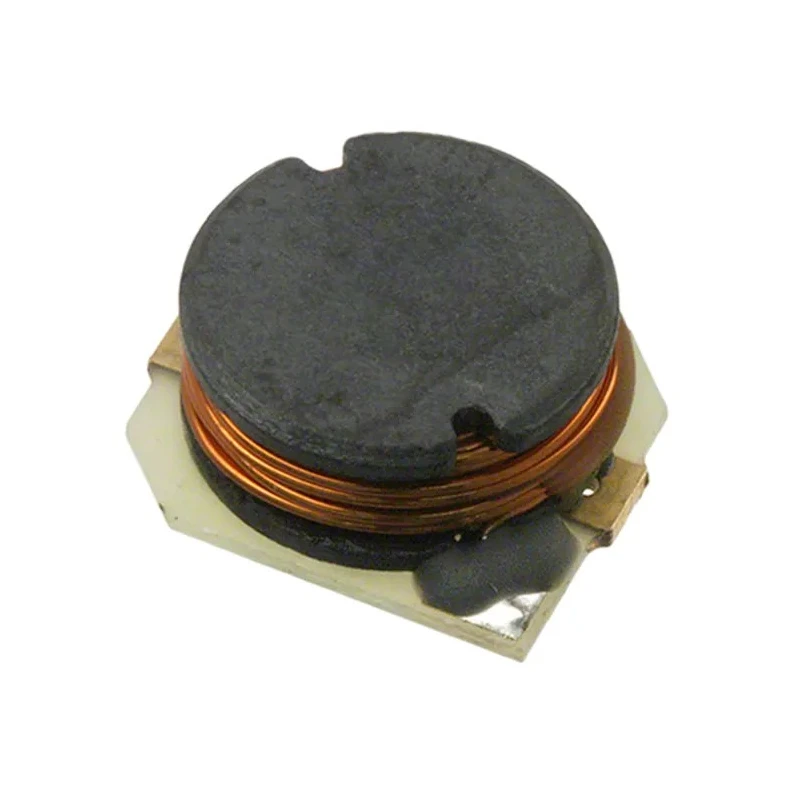

Bourns Wirewound Surface Mount Inductor SDR1105 E6, 100 μH ±10 %, 2.8 A Idc, Ferrite DR Core
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.8mm |
| Length | 10mm |
| Model | SDR1105 |
| Depth | 11.1mm |
| Packaging | Reel |
| Series | SDR1105 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | E6 |
| Maximum DC Current | 2.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 320mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a wirewound construction ensuring low resistance.
- Compact E6 package case measuring 10 mm length and 4.8 mm height suits surface mount technology.
- Core material is ferrite DR providing stable magnetic properties under operating conditions.
- Maximum DC resistance is 320 mΩ with a tolerance of ±10 % to maintain inductance stability.
- Operating temperature range from -40°C to 125°C allows reliable performance in harsh environments.
- RoHS compliant, molded design ensures environmental safety and durability.
- Termination style is solder to enable reliable PCB assembly.
- Suitable for power supply and DC/DC converter applications in portable communications and consumer electronics.
Product Description
Bourns SDR1105 is a high-quality wirewound surface mount inductor designed with a Ferrite DR core and packaged in an E6 case. It delivers 100 μH inductance with ±10 % tolerance and has a maximum DC current rating of 2.8 A, making it suitable for robust power handling in electronic circuits.
Its compact dimensions of 10 mm length, 4.8 mm height, and 11.1 mm depth enable efficient mounting on printed circuit boards using surface mount technology. The molded construction provides mechanical strength and protection against environmental factors.
The inductor features low maximum DC resistance of 320 mΩ, ensuring minimal energy loss in applications. Its operating temperature range from -40°C to 125°C allows reliable functionality even in extreme temperature conditions. The solder termination style facilitates stable electrical connections during PCB assembly processes.
This inductor is RoHS compliant, reinforcing its suitability for environmentally conscious electronics manufacturing. It is ideal for use in DC/DC converters, input/output filtering in power supplies, and various consumer electronics, including portable communication devices, camcorders, LCD TVs, and car radios.
Wirewound construction ensuring stable inductance and low resistance. Ferrite DR core material delivering superior magnetic characteristics. Compact E6 package case suitable for space-constrained applications. Wide operating temperature range from -40°C to 125°C.
Molded design offers enhanced durability and reliability. RoHS compliant, meeting environmental regulations. Termination style designed for reliable soldering. Highly applicable in power supply and portable communication equipment.
Choose Bourns SDR1105 for reliable surface mount inductance solutions in industrial, telecommunications, consumer electronics, and power management systems. Explore our wide range of Surface Mount Inductors for diverse industrial and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR1105 inductor has an inductance value of 100 μH with a tolerance of ±10 %.
This model has a maximum DC current rating of 2.8 A.
The dimensions of this inductor are 10 mm in length, 4.8 mm in height, and 11.1 mm in depth.
The core material of the SDR1105 inductor is Ferrite DR, which provides stable magnetic properties.
The maximum DC resistance of the SDR1105 is 320 mΩ.
This inductor operates within a temperature range of -40°C to 125°C.
The SDR1105 features a solder termination style, which facilitates reliable PCB assembly.
Yes, the SDR1105 is RoHS compliant, meeting environmental regulations for electronics.
This inductor is packaged in a reel format, suitable for automated assembly processes.
It is suitable for applications in DC/DC converters, input/output filtering in power supplies, and various consumer electronics.
The SDR1105 inductor has a pin count of 2.
This inductor features a wirewound construction, ensuring low resistance and stable inductance.
