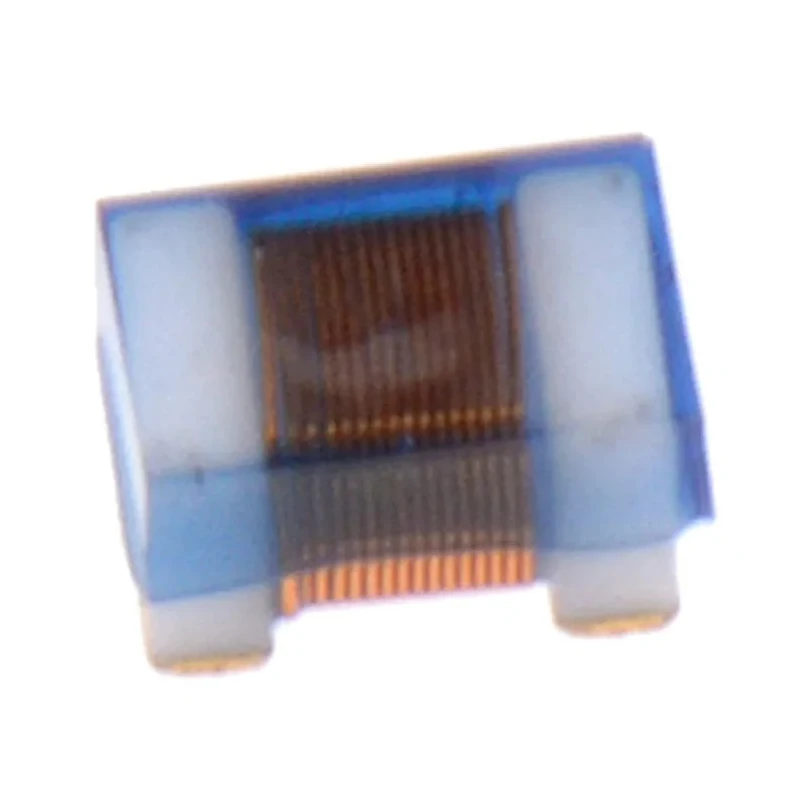

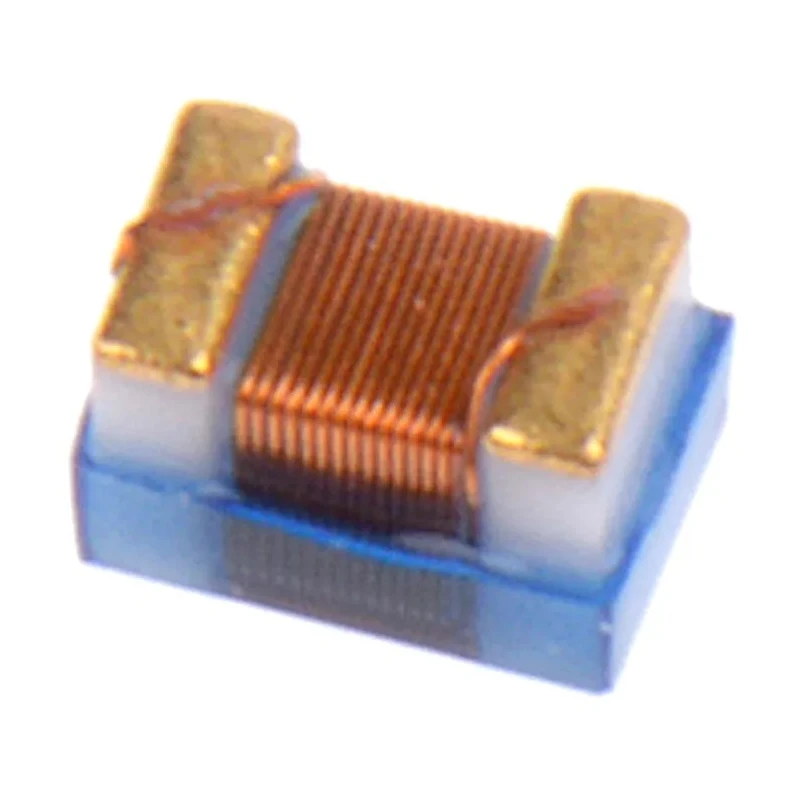

Wurth Elektronik WE-KI 0603 Shielded Wirewound Surface Mount Inductor with Ceramic Core, 0.15 μH ±0.2 nH, 280 mA 744761215A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.05mm |
| Length | 1.6mm |
| Model | 744761215A |
| Depth | 1.05mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 0.15μH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 0603 |
| Maximum DC Current | 280mA |
| Pin Count | 2 |
| Maximum DC Resistance | 920mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1GHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- High frequency performance with self resonant frequency up to 1 GHz.
- Compact 0603 package size with 1.6 mm length and 1.05 mm height and depth.
- Ceramic core material ensures thermal stability and durability.
- Shielded wirewound construction for reduced electromagnetic interference.
- Surface mount termination style suitable for automated PCB assembly.
- Meets automotive AEC-Q200 standard for reliability.
- Packaging in tape and reel format for high volume production.
- Operating temperature range from -40°C to 125°C.
Product Description
Wurth Elektronik 744761215A WE-KI Series 0603 Shielded Wirewound Surface Mount Inductor features a ceramic core and is optimized for high frequency applications requiring stable inductance and low losses. This 0.15 μH inductance inductor delivers excellent performance with a tight tolerance of ±0.2 nH and supports a maximum DC current of 280 mA. The 0603 package measures 1.6 mm in length with a height and depth of 1.05 mm each, facilitating integration in compact electronic assemblies.
The wirewound construction combined with shielding provides superior electromagnetic compatibility, making this inductor ideal for wireless LAN, Bluetooth, and RF transceiver circuits. It meets the automotive AEC-Q200 standard, ensuring high reliability in automotive and industrial environments.
This surface mount inductor supports reflow soldering processes and comes in tape and reel packaging suitable for automated SMT lines. Operating temperature ranges from -40°C to 125°C, allowing deployment in harsh conditions. The component has a maximum DC resistance of 920 mΩ which maintains efficiency and reduces power losses during operation.
Standards compliance includes RoHS and REACH, reflecting commitment to environmental safety. The ceramic core ensures high thermal stability and maintains inductance characteristics over wide temperature ranges.
High frequency operation with 1 GHz self resonant frequency. Shielded construction reduces EMI and is suitable for sensitive electronic applications. Compact 0603 size supports dense PCB layouts. Compliant with stringent automotive and environmental standards.
Ideal for communication, automotive, industrial, and consumer electronics applications. Explore the extensive range of Surface Mount Inductors available to find components that meet your specific design and performance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 0.15 μH with a tolerance of ±0.2 nH.
It supports a maximum DC current of 280 mA.
The package measures 1.6 mm in length, with a height and depth of 1.05 mm each.
The self-resonant frequency is up to 1 GHz, making it suitable for high frequency applications.
The operating temperature range is from -40°C to 125°C.
It features a ceramic core material, which ensures thermal stability and durability.
The termination style is surface mount, suitable for automated PCB assembly.
It complies with RoHS and REACH standards, reflecting environmental safety commitments.
The maximum DC resistance is 920 mΩ, which helps maintain efficiency and reduce power losses.
Yes, it meets the automotive AEC-Q200 standard for reliability in automotive applications.
It has a wirewound construction combined with shielding to reduce electromagnetic interference.
It is packaged in tape and reel format, suitable for high volume production.
