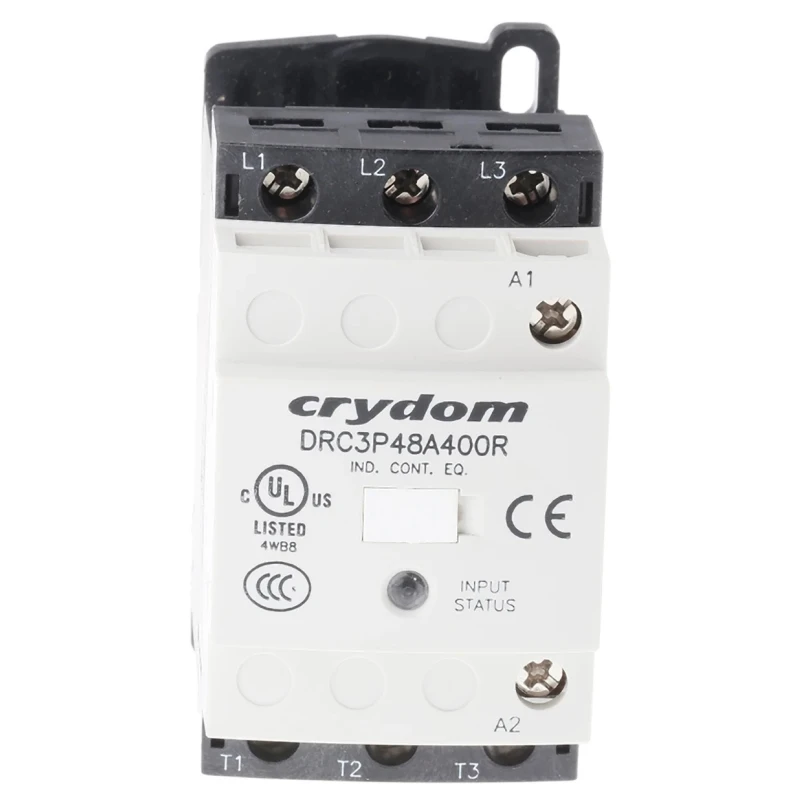

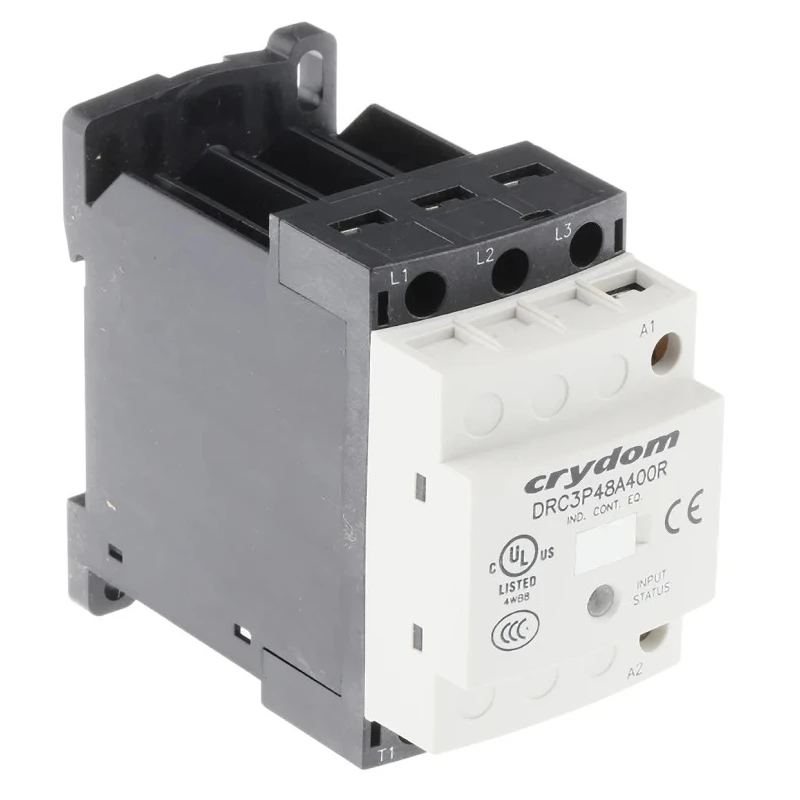

Crydom DRC Series Solid State Relay, 4.8 A Load Current, 510 V AC Load Voltage, 265V AC Control Voltage, DIN DRC3P48A400R

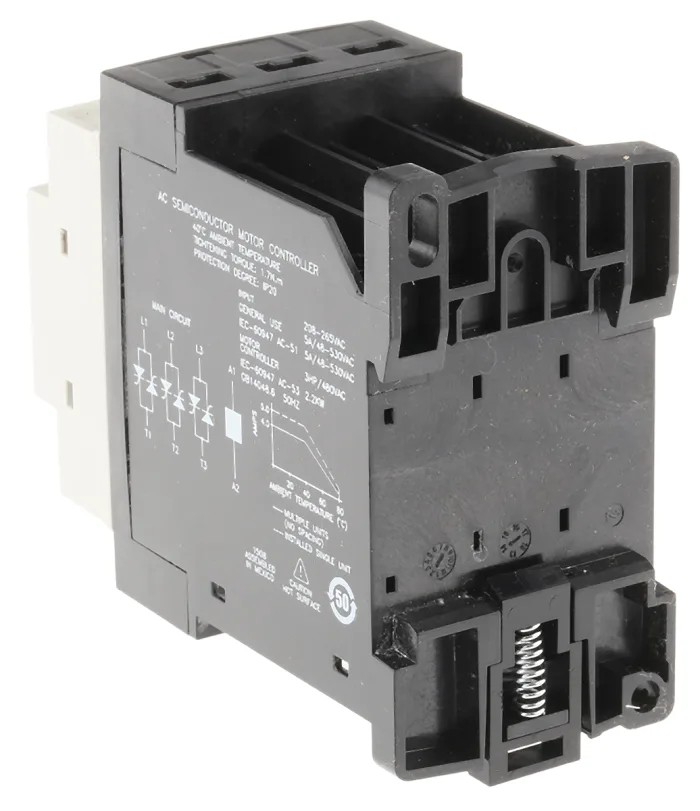

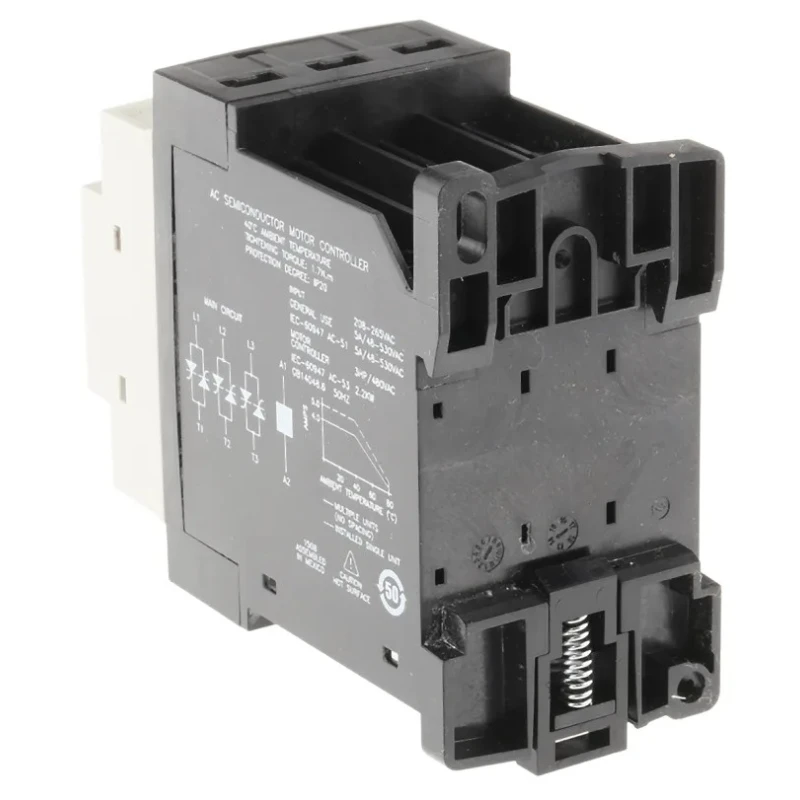

Crydom DRC3P48A400R Solid State Relay is designed to provide superior performance for industrial and commercial electrical control applications. It offers a 4.8 A maximum load current and can manage a maximum load voltage of 510 V AC, controlled via a 265 V AC input signal. The relay is mounted on a standard 35 mm DIN rail making it easy to integrate into existing control panels.

These solid state relays are built for demanding uses including in industrial, manufacturing, HVAC, and automation systems where rapid switching and reliability are critical. DRC3P48A400R models are capable of frequent switching cycles up to 9000 cycles per hour, ideal for motor control and other three-phase load applications rated up to 5 HP.

Constructed with screw terminals to ensure secure and reliable electrical connections, the relay also features low off-state leakage current of 3 mArms and a minimal capacitance of 20 pF. Its thermal management system, which is patented, promotes efficient heat dissipation to extend operational lifespan. The relay's operating temperature range of -30°C to 80°C and IP20 ingress protection rating makes it robust for various industrial environments.

Crydom’s DRC Series meets stringent international standards including UL, IEC 60947-2, CCC, EMC directives, and is RoHS compliant, ensuring safety and environmental responsibility. It includes LED input status indicators for simplified operation monitoring. This product is suitable for applications requiring industrial-grade, high reliability solid state switching such as motor controls, heating element automation, and more.

Package contents include one Crydom DRC3P48A400R solid state relay unit, ready for installation and immediate use in control systems. Supports frequent switching on and off for three-phase loads up to 5 HP. Available with instantaneous turn-on for motor control or zero voltage turn-on for resistive loads.

Features screw terminal connections for secure wiring. Operates in temperatures from -30°C to 80°C with IP20 rating. Complies with multiple international standards including C-UL-US, IEC 60947-2, CE, and RoHS. Compact footprint designed for standard 35 mm DIN rail installation.

Capacitance rating of 20 pF enabling efficient performance. Off-state leakage current of 3 mArms ensures minimal power loss. Embedded LED input status indicator for easy diagnostics. Patented ultra-efficient thermal management for enhanced durability.
