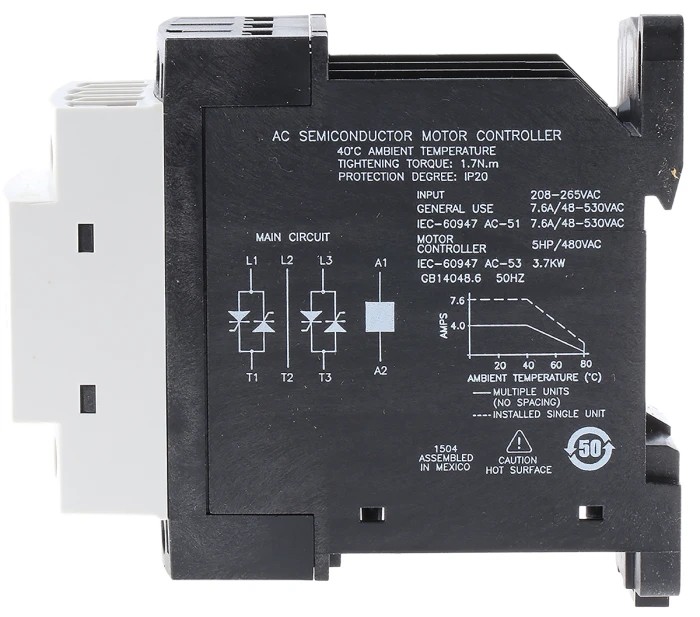

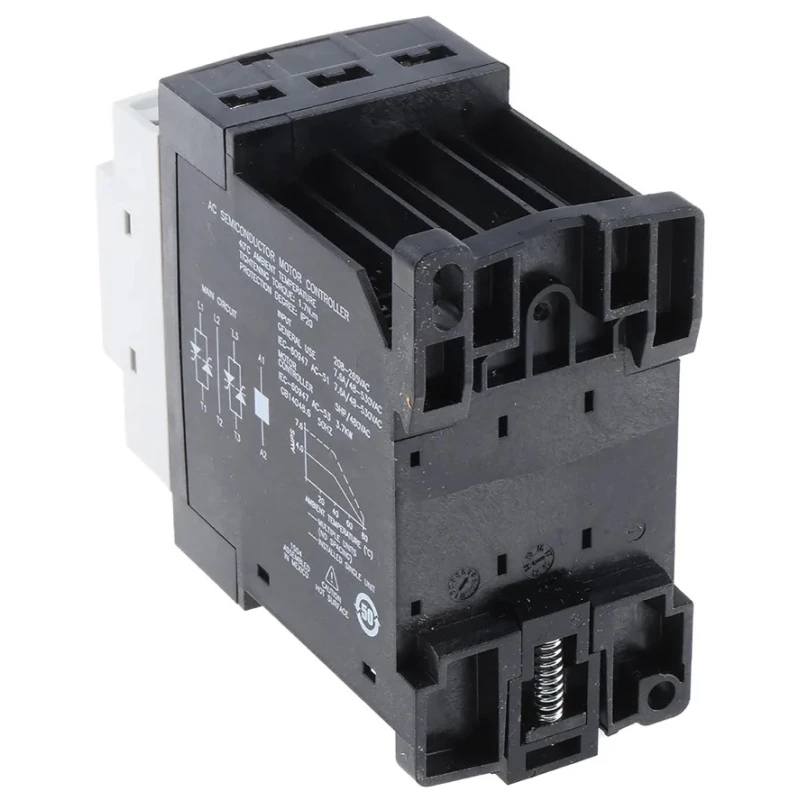

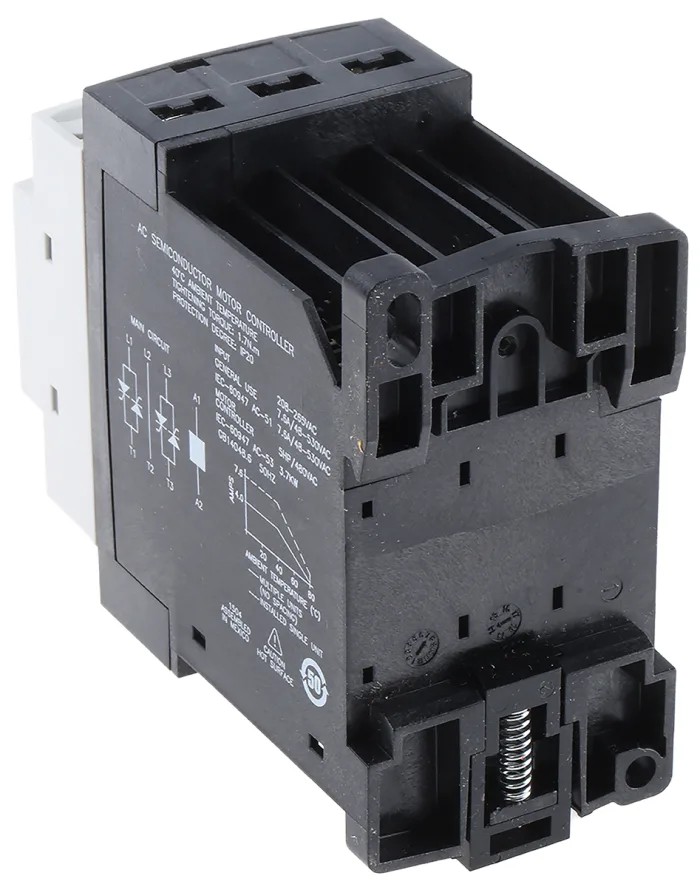

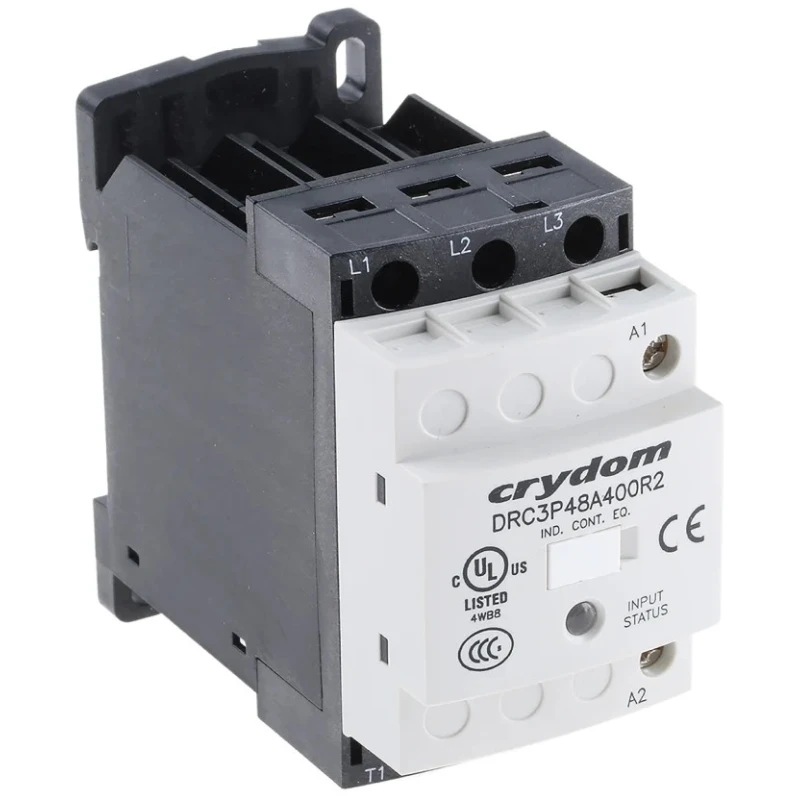

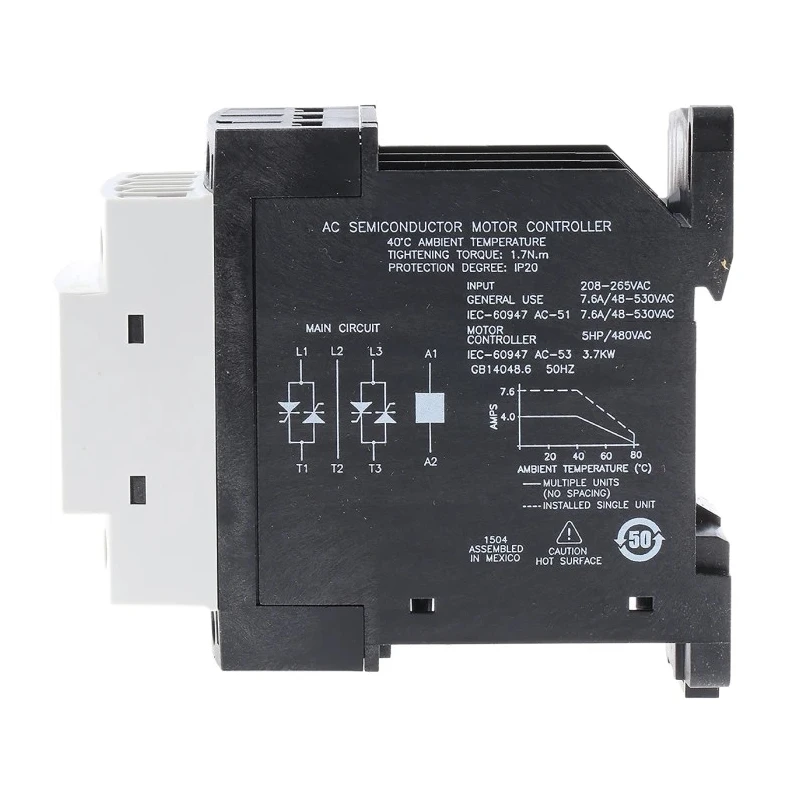

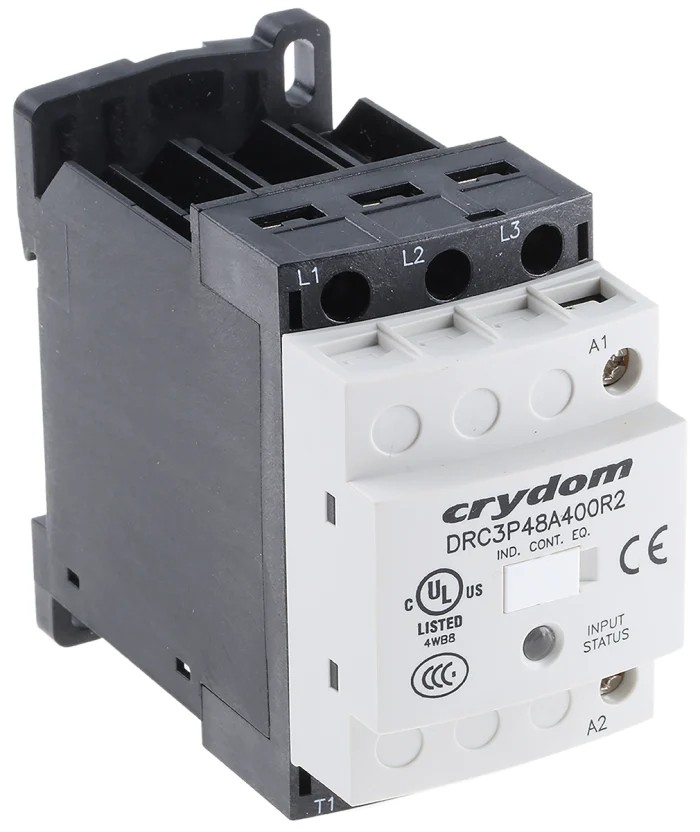

Crydom Solid State Relay DRC Series DIN Rail Mount 7.6 A Load 510 V AC Load 265 V AC Control DRC3P48A400R2

The Crydom DRC Series Solid State Relay model DRC3P48A400R2 is a robust DIN rail mount relay designed for industrial and commercial automation applications. It facilitates the safe and efficient switching of electrical loads up to 7.6 A current and 510 V AC voltage, ideal for controlling motors and inductive loads in Manufacturing, HVAC, Water Treatment, and Industrial Automation systems.

This SSR features screw terminal connections ensuring secure and reliable wiring. Its durable flame-retardant housing combined with an IP20 rating protects against accidental contact and intrusion of large particles, enhancing operator safety.

Designed to withstand harsh environment conditions, it operates across a wide temperature span from -30°C to 80°C, making it suitable for demanding indoor electrical panels and industrial control cabinets.

The relay complies with internationally recognized standards including UL Listed, IEC 60947-2, CE marking, and RoHS conformity, underpinning its safety and environmental reliability. It is also built to tolerate electrical disturbances with certifications like IEC 61000 series for EMC and robustness.

Additional electrical characteristics include a low off-state leakage current of 3 mArms and a typical capacitance of 20 pF, ensuring minimal power losses and efficient switching performance. The device features a dielectric strength of 3750 Vrms for enhanced isolation and protection.

Supports a maximum load current of 7.6 A for robust industrial performance. Suitable for load voltages up to 510 V AC with a minimum operational load voltage of 48 V AC. Control voltage range of 208 V AC to 265 V AC for versatile control applications.

Mounts securely on DIN rails for easy integration into electrical panels. Constructed with screw terminal type for reliable electrical connections. Operates safely within a wide temperature range from -30°C to 80°C. IP20 rated for protection against solid objects larger than 12mm and touch-safe design.

Features low off-state leakage current of 3 mArms ensuring efficient power management. Compact dimensions with width 95.6 mm, height 86.71 mm, and length 45.31 mm. Compliance with multiple standards including UL, IEC, CE, and RoHS for assured quality and safety.

This solid-state relay is suitable for applications in industrial automation, process control, motor control circuits, and other electrical switching scenarios where contact wear and maintenance needs must be minimized. Explore Crydom and allied Solid State Relays on EnvMart for reliable industrial-grade automation components.
