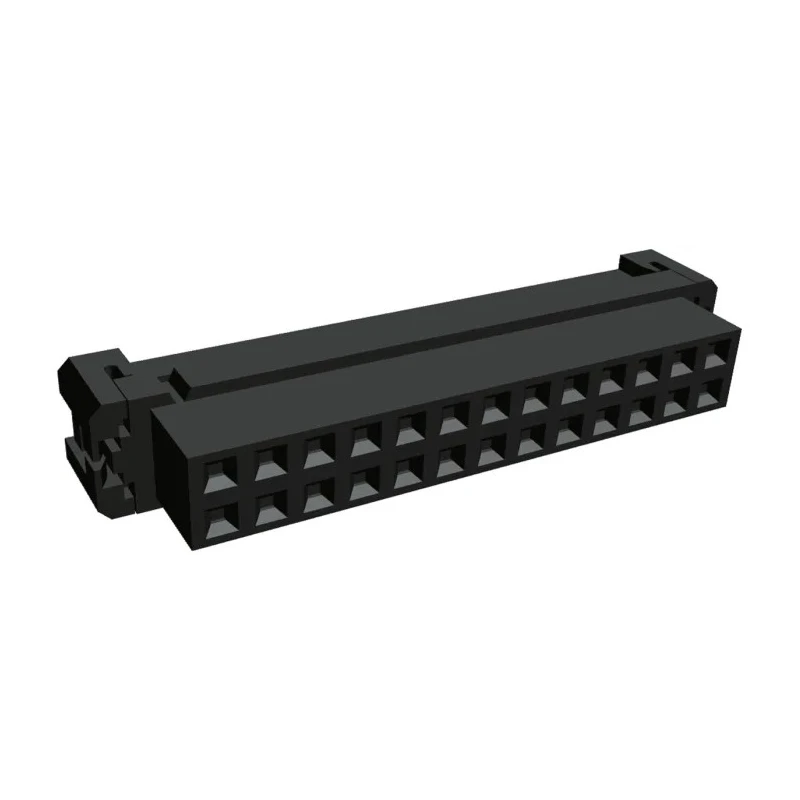

TE Connectivity 26-Way Shrouded IDC Connector Female Cable Mount Right Angle AMP-LATCH 2-111626-7

TE Connectivity 2-111626-7 is a high-quality 26-way shrouded IDC connector female suitable for ribbon cable applications requiring reliable cable mounting and right angle orientation. It is part of the AMP-LATCH series featuring a 2.0mm pitch and 2 rows of contacts designed to mate with 1.0mm pitch ribbon cable.

This connector supports a maximum voltage of 125V AC and current rating of 500mA, making it suitable for various low power electronic and industrial control applications. The contacts are gold plated over phosphor bronze to ensure excellent conductivity and corrosion resistance.

The housing is constructed from UL 94V-0 rated polyester material, ensuring durability and flame resistance. It can operate reliably within a wide temperature range from -65°C minimum to 105°C maximum, covering most industrial and laboratory environments.

The insulation displacement contact (IDC) termination allows for quick and secure connections without the need to strip wires, increasing assembly efficiency. Its right angle orientation facilitates compact cable routing in constrained PCB or chassis spaces.

Ideal uses include industrial control systems, electronic equipment, test instrumentation, and automotive harness wiring where durable, reliable cable-to-board connections are required.

Designed for 26 contacts arranged in 2 rows with 2mm pitch. Shrouded for improved protection and reliability. Gold plated phosphor bronze contacts. Polyester housing with UL 94V-0 flame rating. Termination by insulation displacement contact technology.

Right angle cable mounting style. Operating temperature range -65°C to 105°C. Compatible with 1.0mm pitch ribbon cables. Connector gender: female. Explore the complete range of PCB and wire housing IDC Connectors at EnvMart for your industrial and electronic connector needs.
