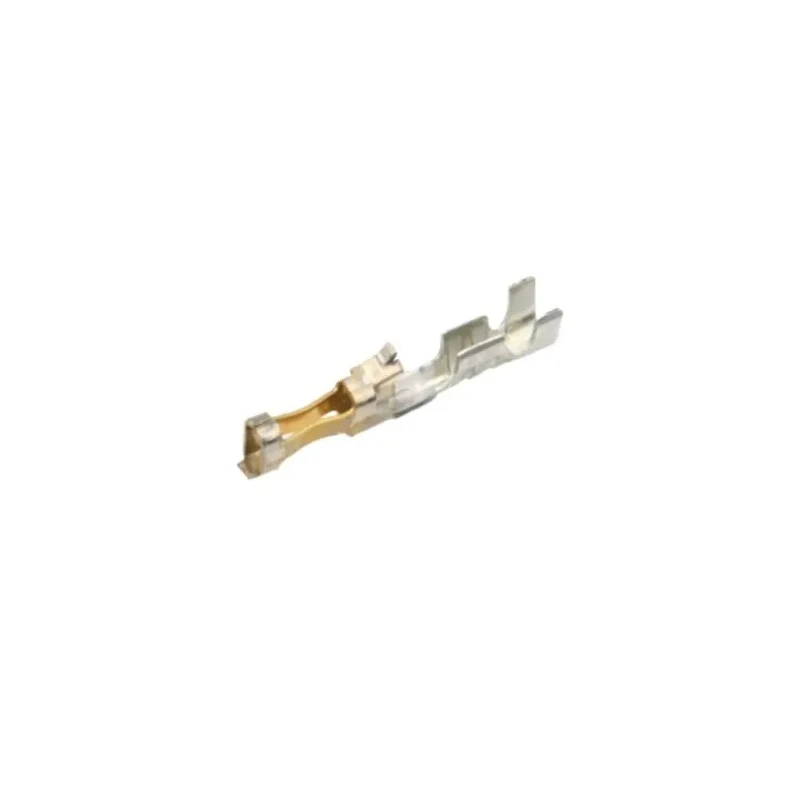

Molex 71851 Series Female Crimp Terminal 24 AWG Min Crimp, 22 AWG Max 16-02-1125
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 71851 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 30mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Compatible with SL Connector Housing for easy integration.
- Supports wire sizes from 24 AWG minimum to 22 AWG maximum.
- Phosphor bronze contact material offers excellent electrical conductivity.
- Gold plating on contacts provides corrosion resistance.
- Rated for 3A current carrying capacity.
- Operates reliably from -40°C up to 105°C.
- Designed for crimp termination type for robust attachment.
- Maximum contact resistance of 30 milliohms ensures signal integrity.
Product Description
Molex 16-02-1125 is a female crimp terminal designed for signal type connections using wire sizes ranging from 24 AWG minimum to 22 AWG maximum. This terminal is part of the 71851 Series and provides secure and reliable attachment for conductors in PCB assemblies.
The contact is made from phosphor bronze, known for its excellent electrical conductivity, and it is finished with robust gold plating to safeguard against corrosion, enhancing durability in various environments. Its crimp termination design ensures a secure and fast connection when used with compatible Molex SL connector housings.
This crimp terminal supports a maximum current rating of 3 amperes and operates effectively over a temperature range from -40°C up to 105°C, making it suitable for a variety of industrial, communications, and consumer electronic applications.
Key industries that benefit from this product include medical devices, household appliances, and lighting fixtures, where reliable signal transmission is critical. When crimping, it is recommended to strip the wire jacket and secure the wire conductor using an appropriate hand crimping tool to achieve optimal results.
Molex 71851 Series crimp terminals are designed for use with SL series connector housings, such as the double-contact options. The gold plating and phosphor bronze materials together help maintain signal integrity and durability under demanding conditions.
Compatible with SL Connector Housing for easy integration. Supports wire sizes from 24 AWG minimum to 22 AWG maximum. Phosphor bronze contact material offers excellent electrical conductivity. Gold plating on contacts provides corrosion resistance.
Rated for 3A current carrying capacity. Operates reliably from -40°C up to 105°C. Designed for crimp termination type for robust attachment. Maximum contact resistance of 30 milliohms ensures signal integrity. Discover more high-quality Crimp Terminals and connectors at EnvMart to support your electronic and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal has a current carrying capacity of 3A.
It supports wire sizes from 24 AWG minimum to 22 AWG maximum.
It operates reliably within a temperature range of -40°C to 105°C.
The contact material is phosphor bronze, and it features gold plating for corrosion resistance.
This model is designed for crimp termination type, ensuring a robust attachment.
It is compatible with SL Connector Housing for easy integration.
The maximum contact resistance is 30 milliohms, which helps ensure signal integrity.
The country of origin for this crimp terminal is India.
Key industries include medical devices, household appliances, and lighting fixtures, where reliable signal transmission is critical.
This terminal is part of the Molex 71851 Series.
The minimum wire size for this terminal is 0.2 mm².
The maximum wire size for this terminal is 0.3 mm².
