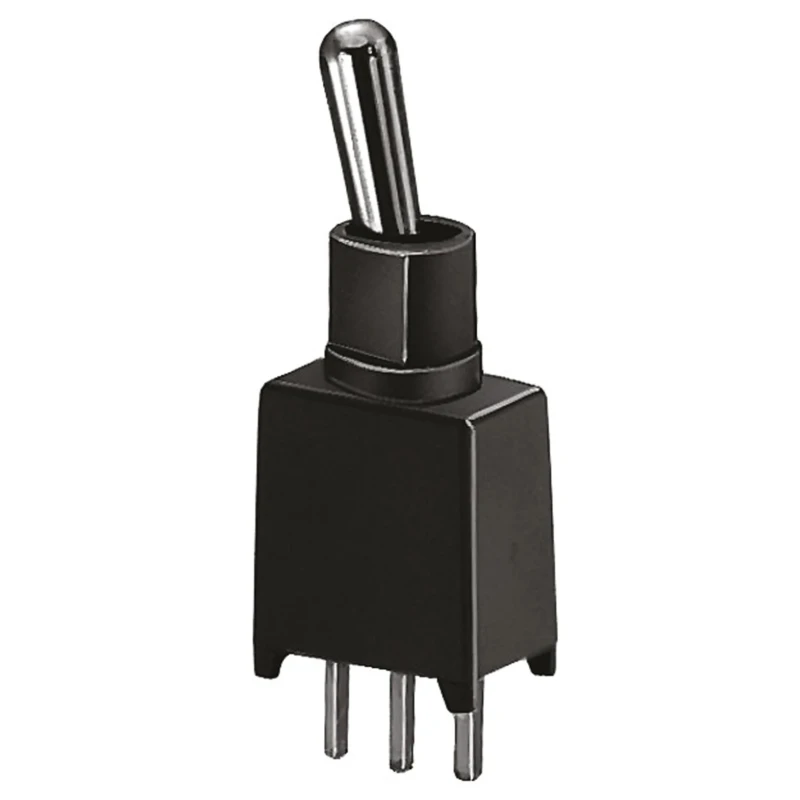

KNITTER-SWITCH Subminiature Toggle Switch PCB Mount On-On SPDT 20 V dc 20 V ac TST 1 F

KNITTER-SWITCH TST 1 F is a subminiature toggle switch designed for PCB mounting with On-On SPDT contact configuration, operating at 20 V dc and 20 V ac voltages. This switch is ideal for electrical and automation applications where compactness and reliable switching are paramount.

Constructed with a gold plated copper actuator and contacts, it ensures low contact resistance and enhanced conductivity. It features through hole terminal type connections for sturdy PCB assembly. The device is fully sealed with an IP67 rating, making it suitable for wash-down and dust-prone environments, extending its寿命 and reliability.

With a switch contact current rating of 400mA, it caters effectively to medium load scenarios. Its operating temperature range from -30°C to +85°C allows use in demanding industrial or outdoor conditions. The TST 1 F series switch boasts a mechanical life of 50,000 operations, highlighting its durability.

The compact dimensions - 21.49mm in height, 8.13mm width, and 5.08mm length - make it perfect for tight spaces and portable electronics. It complies with RoHS standards and provides excellent electrical isolation with insulation resistance of 1000 MΩ and dielectric strength rated at 1000 V, 50 Hz for 1 minute.

This versatile toggle switch serves diverse industrial, laboratory, and commercial applications including automation controllers, instrumentation, and PCB-based electronic devices requiring secure tactile switch operation.

Set your design apart with the dependable KNITTER-SWITCH TST 1 F Toggle Switch, ensuring long-lasting performance and environmental resilience. Explore more high-quality switches and related components within the Electronics & Electricals section on EnvMart.

Gold plated copper actuator ensures low contact resistance and reliability. Designed for PCB mounting with through hole terminals for secure connections. Offers a switch contact current rating of 400 mA for moderate loads.

Fully sealed with IP67 rating, making it washable and suitable for harsh environments. Operates in temperature range from -30°C to 85°C for versatile industrial use. Has a mechanical life expectancy of 50,000 operations for durability.

Compact subminiature size with dimensions of 21.49mm height, 8.13mm width, and 5.08mm length. Dielectric strength rated at 1000 V at 50 Hz for 1 minute ensuring electrical safety. Insulation resistance of minimum 1000 MΩ provides reliable electrical isolation.

RoHS compliant, meeting environmental and safety standards.
