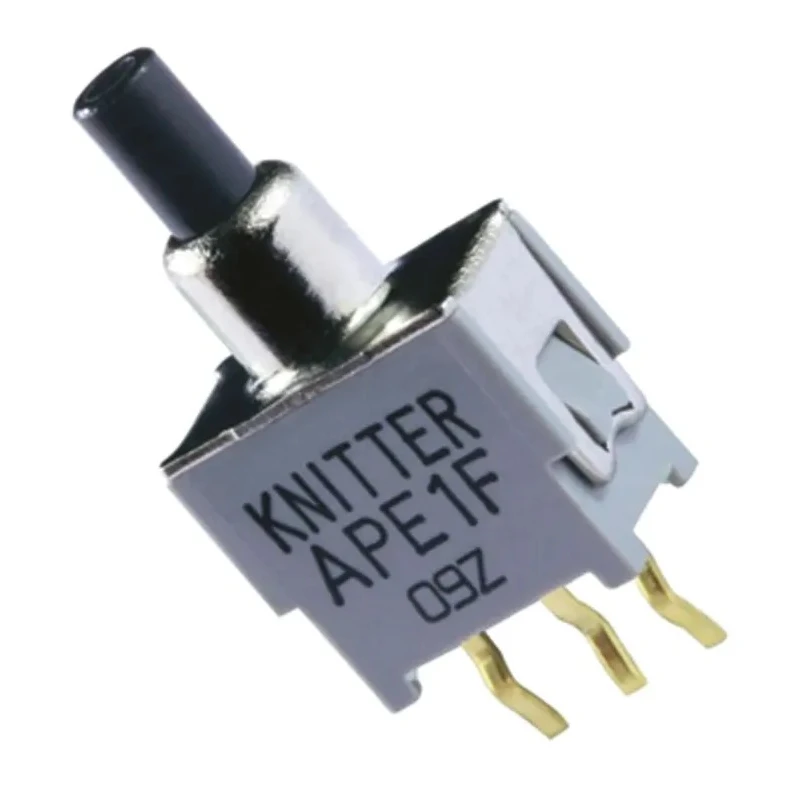

KNITTER-SWITCH Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 20 mV dc, 48 V ac, IP67, Nickel Plated ATE 1 F

Name: KNITTER-SWITCH Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 20 mV dc, 48 V ac, IP67, Nickel Plated ATE 1 F
Brand: KNITTER-SWITCH
SKU: 377293
Price: 595 INR
Availability: InStock



Category Toggle Switch Brand KNITTER-SWITCH Condition New

Specifications

Country of Origin	China
Brand	KNITTER-SWITCH
Height	21.4mm
Length	5mm
Model	ATE 1 F
IP Rating	IP67
Width	9.5mm
Mount Type	PCB
Series	ATE
Maximum Operating Temperature	+80°C
Contact Configuration	SPDT
Minimum Operating Temperature	-20°C
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Operation	On-On
Actuator Length	6mm
Contact DC Voltage	20mV dc
Switch Contact Current	50mA
Mechanical Life	60000Operations
Contact AC Voltage	48V ac
Actuator Material	Nickel Plated Brass

Key Features

Features a nickel plated brass actuator for durability and corrosion resistance.
Designed to operate with contact voltages of 20 mV dc and 48 V ac for versatile electrical applications.
Compact dimensions with 21.4mm height, 9.5mm width, and 5mm length.
Mechanical life rated for 60,000 operations ensuring long-lasting performance.
Suitable for operation in temperatures ranging from -20°C to +80°C.
Provides 50mA contact current capacity with a sealed IP67 enclosure for environmental protection.
Constructed with PBT washable case and nickel-plated brass metal parts for enhanced durability.

Product Description

KNITTER-SWITCH ATE 1 F is a high-quality toggle switch designed for PCB mounting with On-On SPDT contact configuration and through hole terminals. It supports low DC contact voltage of 20 mV and AC voltage of 48 V, making it suitable for a variety of electrical applications.

The switch features a nickel plated brass actuator that provides robustness and corrosion resistance, combined with a PBT washable case ensuring mechanical durability. Its compact physical dimensions of 21.4mm height, 9.5mm width, and 5mm length make it ideal for space-constrained installations.

Rated IP67, this toggle switch offers excellent protection against dust and water ingress, suitable for harsh industrial environments. It supports a contact current of 50mA and can withstand operating temperatures from -20°C to +80°C. With a mechanical life of 60,000 operations, the switch ensures reliable long-term performance.

Its mounting type is PCB with through hole terminals to allow easy integration into printed circuit boards. The ATE series from KNITTER-SWITCH is RoHS compliant, emphasizing environmental safety standards.

Nickel plated brass actuator delivers excellent corrosion resistance and durability. Robust PBT washable case suitable for industrial environments. IP67 rated enclosure ensures protection from contaminants and moisture. Designed for low voltage and current applications (20 mV dc, 48 V ac, 50 mA).

Long mechanical life of 60,000 operations offers reliability in repeated switching scenarios. Temperature tolerance from -20°C to +80°C supports diverse usage conditions. PCB mount with through hole terminals allows secure mounting and electrical connectivity.

This toggle switch is commonly used in electrical, automation, and electronics manufacturing sectors where reliable manual control of circuits is required. It is ideal for industrial machinery controls, test equipment, and other signal switching applications.

Choose the KNITTER-SWITCH ATE 1 F toggle switch for dependable performance, robust construction, and precise electrical specifications. Explore more Toggle Switches and related electronic components at EnvMart for your industrial and commercial needs.
