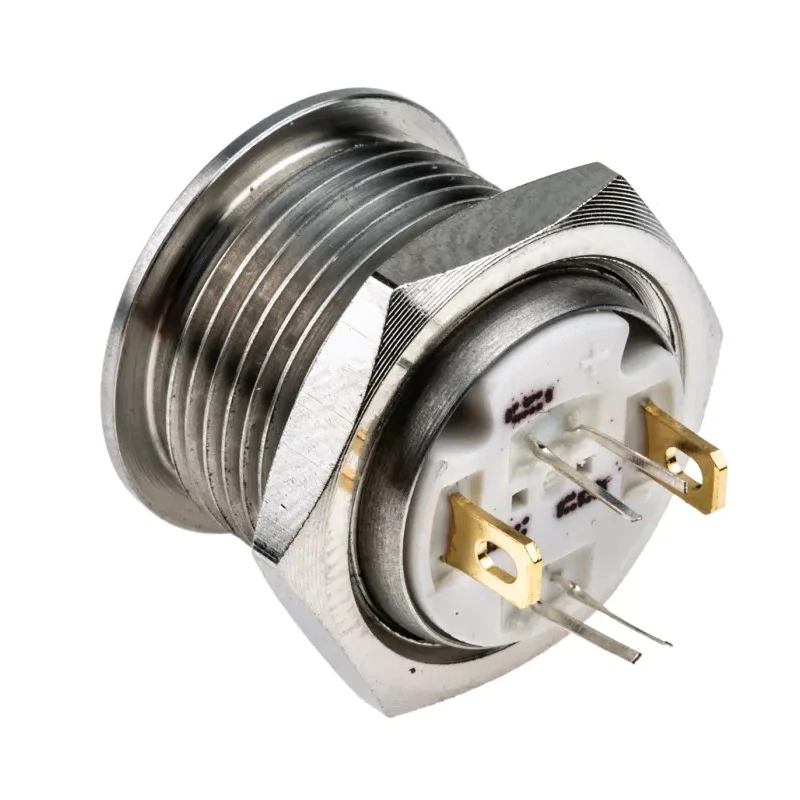

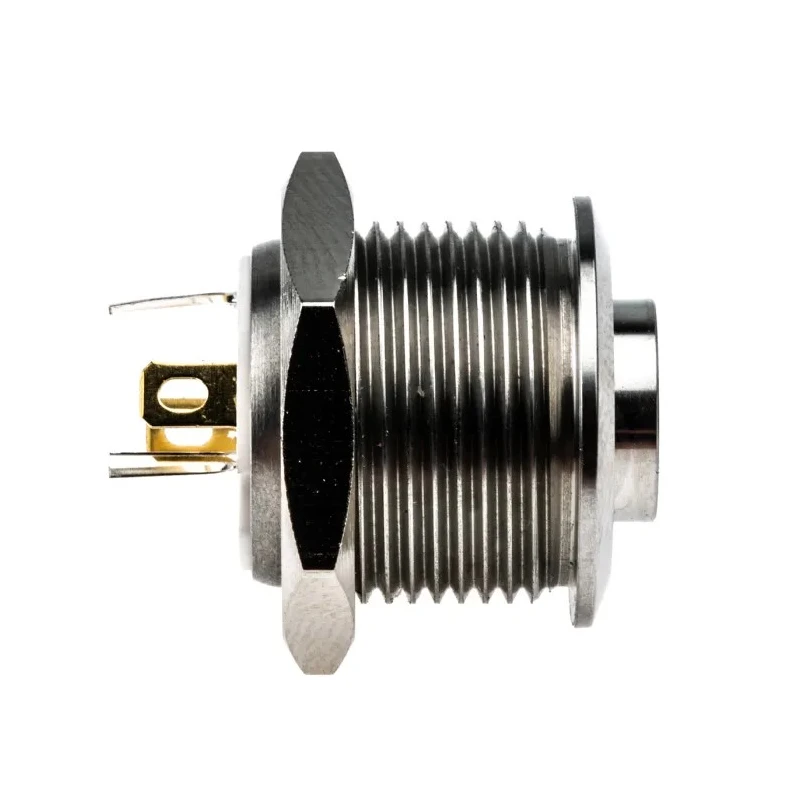

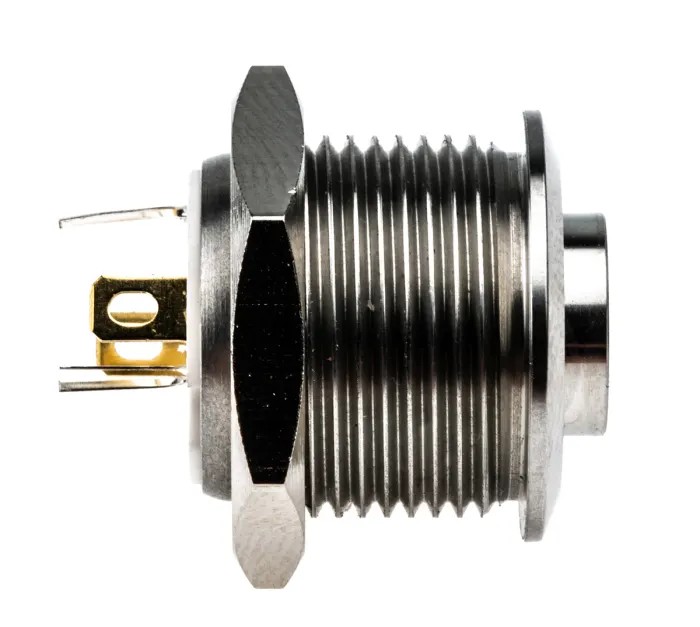

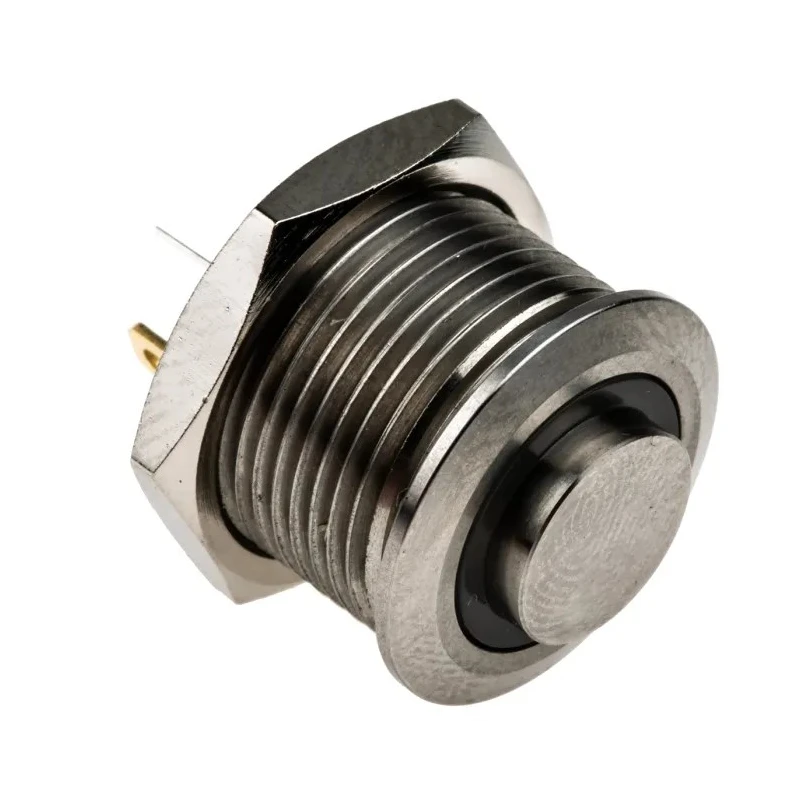

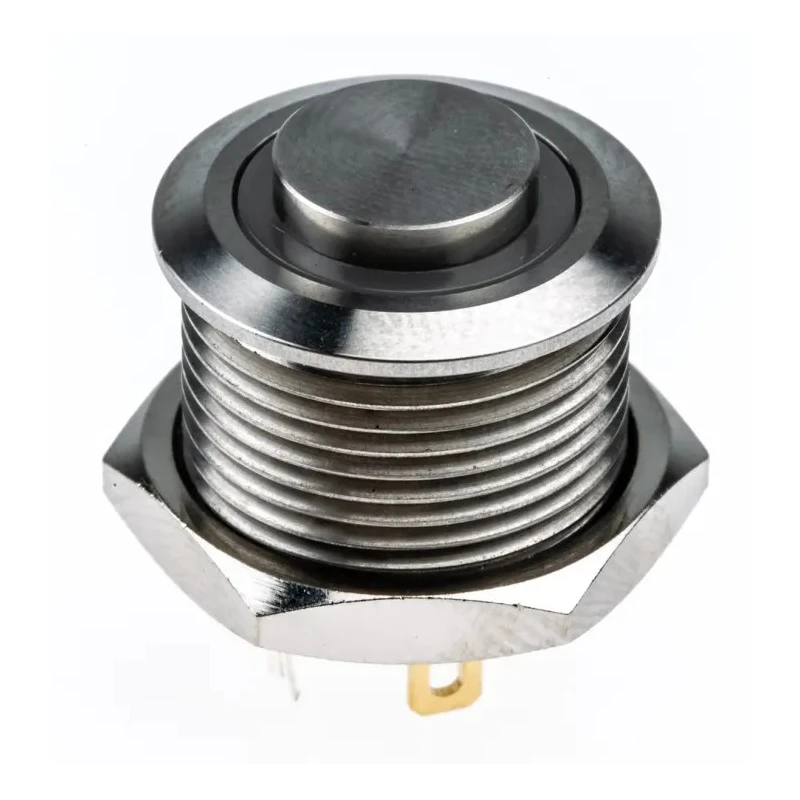

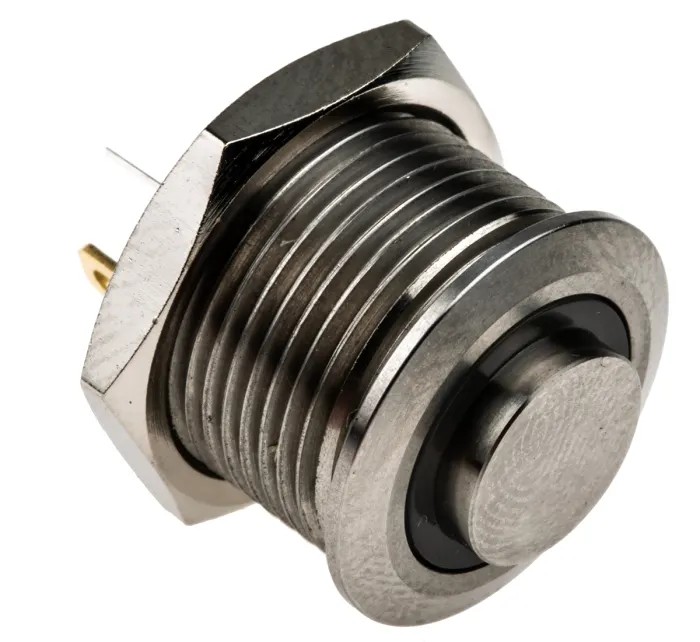

RS PRO MPB16 Series Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST, RGB LED, IP67, 36 V dc MPB16
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | MPB16 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MPB16 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | RS |
| LED Colour | Blue, Green, Red |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Round |
| Switch Contact Current | 2A |
Key Features
- Momentary switch operation for precise control.
- Designed for panel mounting with 16 mm cutout size.
- Single Pole Single Throw (SPST) contact configuration.
- IP67 rated for dust and water protection.
- Suitable for operation between -20°C and 70°C.
- Contact voltage rating of 36 V dc and contact current rating of 2A.
- Round actuator style ensuring ergonomic operation.
- Constructed with solder terminal type for secure connections.
Product Description
RS PRO MPB16 Series Illuminated Push Button Switch MPB16 is a high-quality momentary switch designed for panel mounting with a 16 mm cutout. This switch features a robust SPST contact configuration and is equipped with an RGB LED illumination system, providing blue, green, and red indicator lights. Rated at IP67, it offers excellent protection against dust and water ingress, making it suitable for harsh industrial environments.
The switch operates reliably within a temperature range of -20°C to 70°C and supports a contact voltage of 36 V dc and a contact current of 2A, ideal for various low-voltage control applications. Its round actuator style offers ergonomic usage along with a solder terminal type that ensures secure and durable electrical connections.
This MPB16 series push button switch is engineered with vandal resistance and long life expectancy, suitable for applications such as industrial control instruments, medical devices, security monitoring systems, vehicle peripherals, audio-visual equipment, and energy storage solutions. The lightweight metal construction provides corrosion resistance and efficient heat dissipation.
Momentary switch operation for precise control. Illuminated with RGB LED colours: Blue, Green, and Red. Designed for panel mounting with 16 mm cutout size. Single Pole Single Throw (SPST) contact configuration. IP67 rated for dust and water resistance.
Operates within -20°C to 70°C temperature range. Contact rated at 36 V dc and 2A current. Round actuator style for ease of use. Solder terminal type for reliable connection. Applications include industrial, medical, security, automotive, and audio-visual equipment.
Manufactured in Taiwan, Province Of China, this product delivers reliable and durable performance in demanding industrial environments. Choose RS PRO MPB16 push button switches for robust and visually clear switching solutions. Explore more products in the Push Button Switch category at EnvMart for comprehensive industrial automation and control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration.
The maximum operating temperature for this switch is 70°C.
It has an IP67 rating, providing protection against dust and water ingress.
The contact voltage rating is 36 V dc, and the contact current rating is 2A.
This switch requires a panel cutout size of 16 mm for installation.
It uses solder terminals for secure electrical connections.
The switch operates reliably within a temperature range of -20°C to 70°C.
The actuator style is round, designed for ergonomic operation.
The RGB LED illumination provides blue, green, and red colors.
This product is manufactured in Taiwan, Province Of China.
It is suitable for applications such as industrial control instruments, medical devices, security monitoring systems, and audio-visual equipment.
The switch operates as a momentary switch, allowing for precise control.
