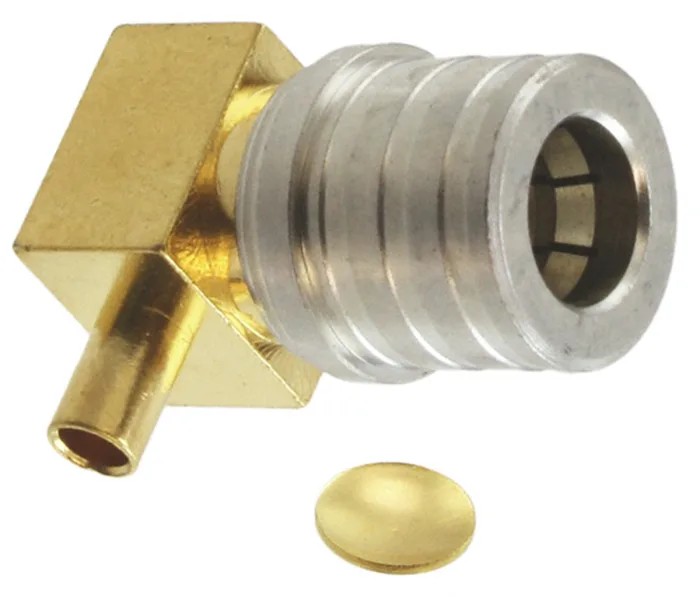

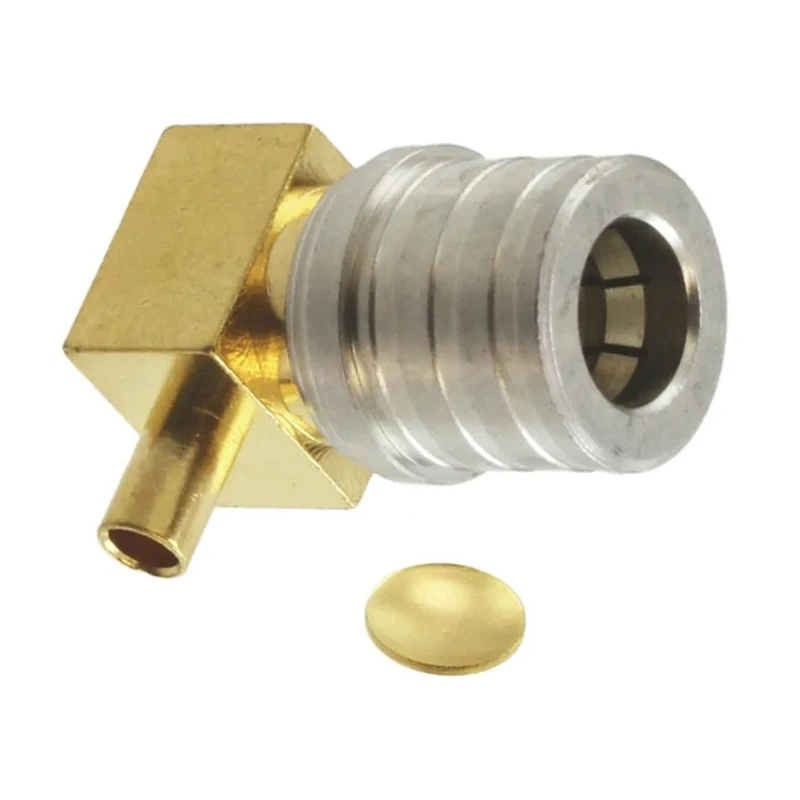

Amphenol RF QMA Series Coaxial Connector Cable Male QMA, 50 Ω, Right Angle Body Solder 930-114P-51A

Amphenol RF 930-114P-51A is a high-quality QMA Series Coaxial Connector designed for cable mounting applications. It features a 50 Ω impedance and supports operating frequencies up to 6 GHz, providing low loss RF performance suitable for various industrial and electronic equipment including base stations and amplifiers.

The connector has a right angle body with solder termination type and is made from a brass body plated with white bronze for enhanced corrosion resistance. Its contact is made from beryllium copper with gold plating to ensure excellent conductivity and durability under demanding conditions.

Engineered for a temperature range from -65°C to 165°C, this connector maintains reliable performance in extreme environments. The male connector gender and standard polarity provide compatibility with a wide array of coaxial cable systems. Compatible specifically with RD-316 and RG-316 double shield cable types, it facilitates versatile connectivity.

One of the key benefits of the Amphenol QMA RF Coaxial Connectors is their snap-on coupling design, which enables quick disconnect capability without the need for threaded screw couplings. This allows faster installation and denser packaging, as no wrench clearance is necessary. Additionally, once mated, these connectors can be rotated 360 degrees, giving installers flexibility to adapt connections in tight spaces.

Quick disconnect snap-on coupling enables rapid system installation. Low loss RF performance up to 6 GHz frequency range. Durable brass body with white bronze plating. Gold-plated beryllium copper contacts enhance conductivity.

Wide operating temperature range suitable for harsh conditions. Right angle body and male connector design. Compatible with RD-316 and RG-316 double shield cables. 360-degree rotation after mating enables flexible installation.

This connector is widely used in industrial, telecommunications, laboratory, and manufacturing settings where reliable high-frequency signal transmission is critical. Explore more Amphenol RF Coaxial Connectors in the EnvMart Electronics Components catalog to find compatible solutions for your system needs.
