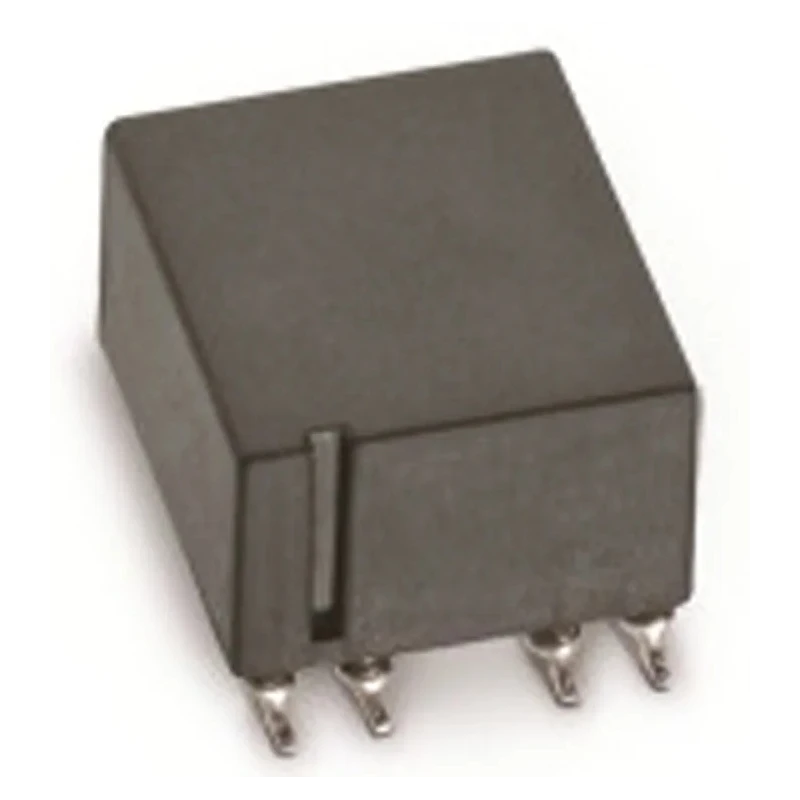

Wurth Elektronik WE-UCF 1712 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 28mH 300mA 2.8Ω 744290283

Wurth Elektronik 744290283 is a shielded surface mount common mode line filter designed with a ferrite core providing 28mH inductance. This 1712 package component features a compact form factor of 14mm length, 7.8mm height, and 12.5mm depth. Its sectional winding construction with 8 pins and tape & reel packaging makes it suitable for modern PCB assembly processes. Rated for a maximum DC current of 300mA and a low DC resistance of 2.8 ohms, this filter operates efficiently within a temperature range of -40°C to 125°C.

Its shielding reduces electromagnetic interference, making it ideal for filtering DC power lines and noise suppression in buck and boost converters. This model is especially beneficial in applications involving data lines with low bitrate, ensuring cleaner signal transmissions. Compliant with REACH and RoHS directives, it meets environmental and safety requirements for professional electronics manufacturing.

Manufactured in China, the Wurth Elektronik WE-UCF series provides a reliable solution for both industrial and commercial electronic applications where noise filtering is critical. The product's packaging and pin configuration suit automated mounting equipment, enhancing production efficiency.

Compact 1712 SMT package for minimal PCB space usage. Ferrite core with sectional winding construction ensures high inductance. Handles up to 300mA DC current with low resistance losses. Wide operating temperature from -40°C to 125°C for various environments.

Shielding to reduce electromagnetic interference effectively. Tape and reel packaging adapted for automated assembly lines. Compliant with RoHS and REACH standards for environmental safety. Perfect for industrial, automotive, and consumer electronics applications.
