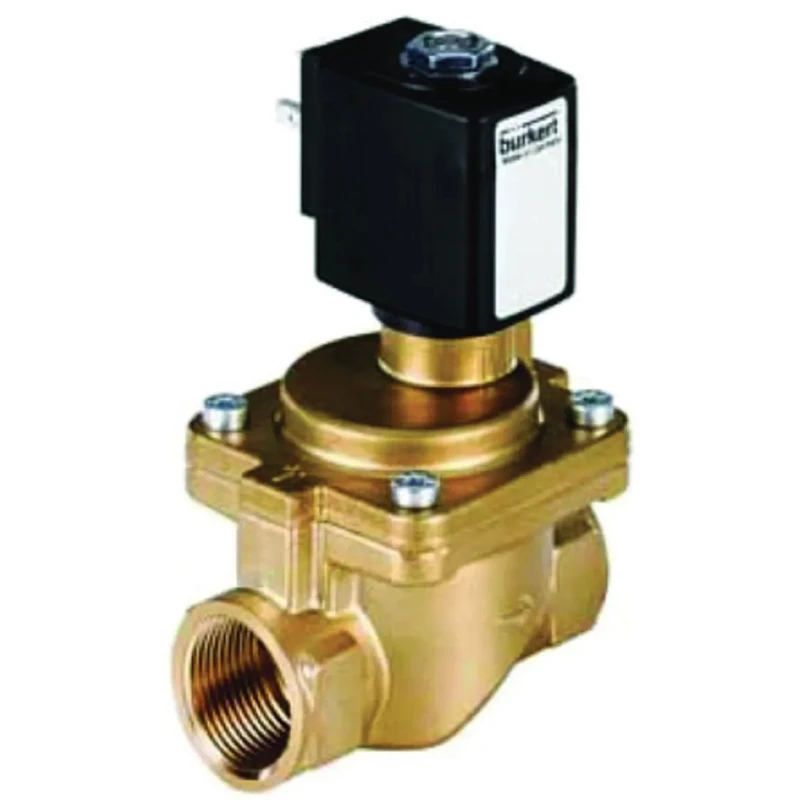

Burkert Servo Assisted Brass Body Solenoid Valve 2 Port Normally Closed 24V DC 40mm Orifice 16 Bar Maximum Pressure 221865
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 16 bar |
| Model | 221865 |
| Series | 6281 EV Standard |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 40mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | DIN EN 50930-6, KTW, W270, DIN EN 175301-803 Form A, ATEX |
| Default Valve Position | NC |
| Maximum Opening Time | 4s |
| Flow Factor Kv | 30m³/h |
Key Features
- Brass body construction ensures durability and corrosion resistance.
- Orifice diameter of 40mm supports flow factor Kv of 30m³/h for efficient fluid control.
- Operates reliably within a pressure range up to 16 bar.
- Temperature range from -10°C to 80°C suits diverse applications.
- Complies with DIN EN standards and is ATEX certified for hazardous areas.
- IP65 rated with cable protection for dust and water resistance.
- Compact design enables easy installation in pneumatic and hydraulic systems.
- Quiet operation with water hammer free design enhances system lifespan.
Product Description
Burkert 221865 is a servo assisted solenoid valve with a brass body, featuring 2 ports and normally closed configuration. It operates at 24V DC voltage and has a 40mm orifice diameter. This valve is suitable for controlling neutral fluids such as compressed air and water, making it ideal for industrial applications including heating, refrigeration, water treatment, vacuum systems, and compressed air lines.
The valve supports a maximum operating pressure of 16 bar and can function reliably within a temperature range of -10°C to 80°C. It includes servo assist for smooth operation and is IP65 protected with cable protection to withstand harsh industrial environments. Constructed to the 6281 EV Standard series, it complies with DIN EN 50930-6, KTW, W270, DIN EN 175301-803 Form A standards and holds ATEX hazardous area certification.
This solenoid valve offers water hammer free operation to prevent pressure surges and damage. Its compact installation length is suitable for tight system areas. Valve bodies have NPT / Rc connection ports and offer both normally closed (NC) and normally open (NO) options, compatible with NBR (Nitrile Rubber) or FKM (Fluoroelastomer) seals to suit diverse fluids.
Brass body ensures durability and resistance to wear in industrial fluids. 2 port, 2/2 way valve design for straightforward open/close control functionality. 24V DC power supply for electrical actuation. Maximum pressure rating of 16 bar suitable for pneumatic and hydraulic systems.
Temperature range from -10°C to 80°C allows use in varied environments. ATEX certification allows safe use in explosive atmospheres. Water hammer free design reduces system stress and extends equipment life. Compact dimensions enable versatile mounting options.
Response times of approximately 0.1 to 4 seconds enable responsive control depending on system pressure.
This valve is manufactured in Germany, ensuring high-quality engineering standards and reliability. It is suited for demanding industrial, water treatment, HVAC, and compressed air system uses. Explore EnvMart's comprehensive selection of industrial valves and Solenoid Valves for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
The orifice diameter of this model is 40mm.
It operates reliably within a temperature range of -10°C to 80°C.
This valve is suitable for controlling neutral fluids such as compressed air and water.
The supply voltage required for this solenoid valve is 24V DC.
Yes, it holds ATEX certification for use in hazardous areas.
The flow factor Kv for this model is 30m³/h.
The default valve position of this model is normally closed (NC).
It complies with DIN EN 50930-6, KTW, W270, and DIN EN 175301-803 Form A standards.
The maximum opening time for this solenoid valve is approximately 4 seconds.
The body material of this solenoid valve is brass.
This model is manufactured in Germany.
