Wurth Elektronik 2 V RGB LED 3528 Surface WL-SFTW 150141M173100

Free Delivery in India | Lowest Global Shipping Charges

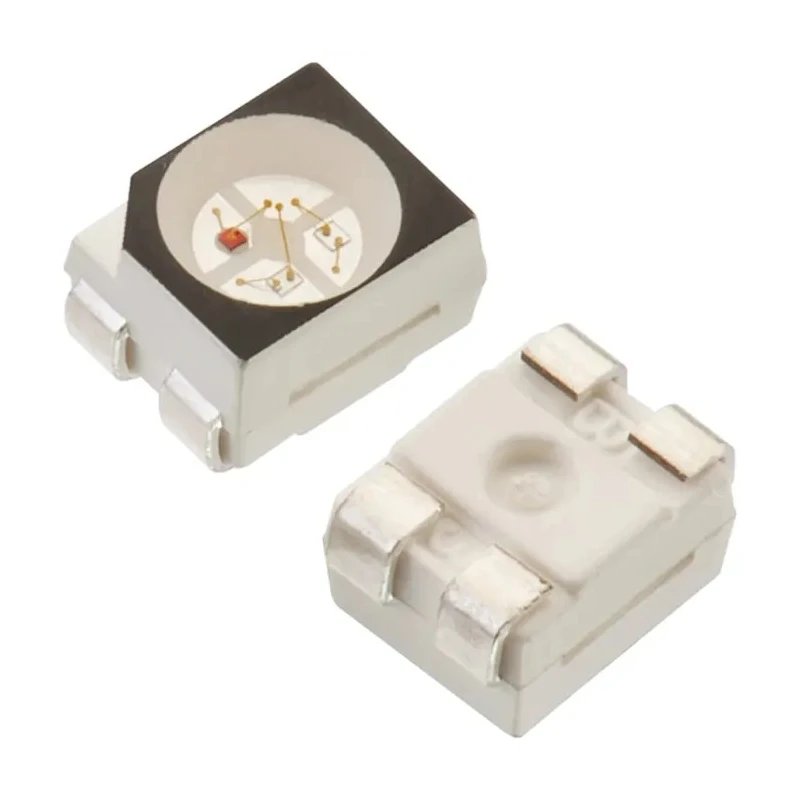

Wurth Elektronik 2 V RGB LED 3528 Surface WL-SFTW 150141M173100

Name: Wurth Elektronik 2 V RGB LED 3528 Surface WL-SFTW 150141M173100
Brand: Wurth Elektronik
SKU: 376378
Price: 0.53 USD
Availability: InStock



Category LED Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Model	150141M173100
Packaging	Tape & Reel
Mount Type	Surface
Series	WL-SFTW
Number Of Leds	3
Maximum forward current	30mA
Viewing angle	120 °
Package Type	3528
Standards/Approvals	RoHS
LED Colour	RGB
Dominant Wavelength	470, 520, 625nm
Forward Voltage	2V
Number of Pins	4
LED Luminosity	230 mcd, 270 mcd, 950 mcd
Maximum Power Dissipation	48mW
Lens Dimensions	3.2 x 2.8 x 1.75 mm
Lens Shape	Round

Key Features

The product features three RGB LEDs with individual control and fast switching capabilities.
It utilizes a standard 3528 surface mount package with a clear round lens and black face for high contrast.
The LED operates at a forward voltage of 2 V with a maximum forward current of 30 mA.
Its viewing angle is 120 degrees, making it suitable for wide illumination.
Applications include keypad lighting, torches, decorative lighting, electronic signage, and LCD/TV backlighting.
The device is RoHS compliant and built with high reliability for industrial use.
Dominant wavelengths are 470 nm (blue), 520 nm (green), and 625 nm (red).
Packaging is tape and reel, optimized for manufacturing automation.

Product Description

Wurth Elektronik 150141M173100 RGB LED 3528 Surface WL-SFTW is a high-quality surface mount device featuring three RGB LEDs integrated into the industry standard 3528 footprint with a clear round lens and black face for enhanced on-off contrast. Operating at a forward voltage of 2 V and maximum forward current of 30 mA, these LEDs deliver reliable and vivid light output with individual control over each RGB component.

This product is optimally designed for versatile industrial, commercial, and electronic applications such as keypad lighting, torches, switch indicators, decorative lighting, electronic signage, video displays, LCD and TV backlighting, and household appliances. The wide 120° viewing angle ensures broad light dispersion, and fast switching capabilities allow dynamic color control with minimal energy consumption.

The WL-SFTW series is RoHS compliant and manufactured with high reliability standards. The lens dimensions measure 3.2 x 2.8 x 1.75 mm, and the LEDs have peak luminosity values of 230 mcd, 270 mcd, and 950 mcd corresponding to the blue, green, and red colors respectively. Packaging is provided as tape and reel to support efficient automated assembly processes.

The RGB LEDs provide individual color control with fast switching. The 3528 standard surface mount package ensures compatibility and ease of integration. Forward voltage is 2 V with maximum current at 30 mA for low power consumption.

A 120° viewing angle provides excellent light coverage. Clear lens and black face enhance contrast for display brightness. Ideal for industrial, commercial, and consumer electronics applications. RoHS compliant meeting environmental standards.

Dominant wavelengths for red, green and blue are 625 nm, 520 nm, and 470 nm. Packaged in tape and reel format for assembly line efficiency.

This Wurth Elektronik LED component is an excellent choice for manufacturers requiring precise, efficient, and robust RGB LED solutions. Explore additional products in the LED Components category at EnvMart for complementary components and lighting solutions.
