QANTEK 12.288 MHz Crystal ±20 ppm HC-49 2-Pin 4.4 mm 11.4 mm 4.8 mm QCS12.2880F18B23R

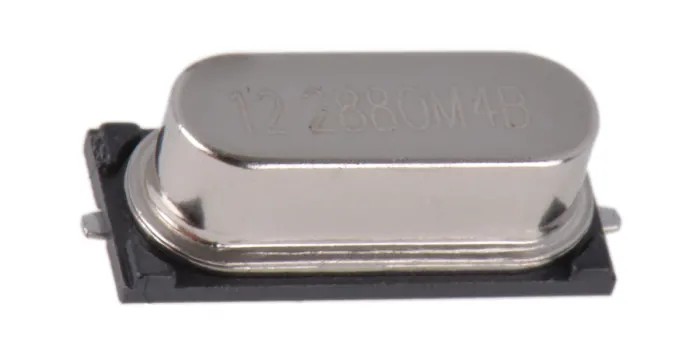

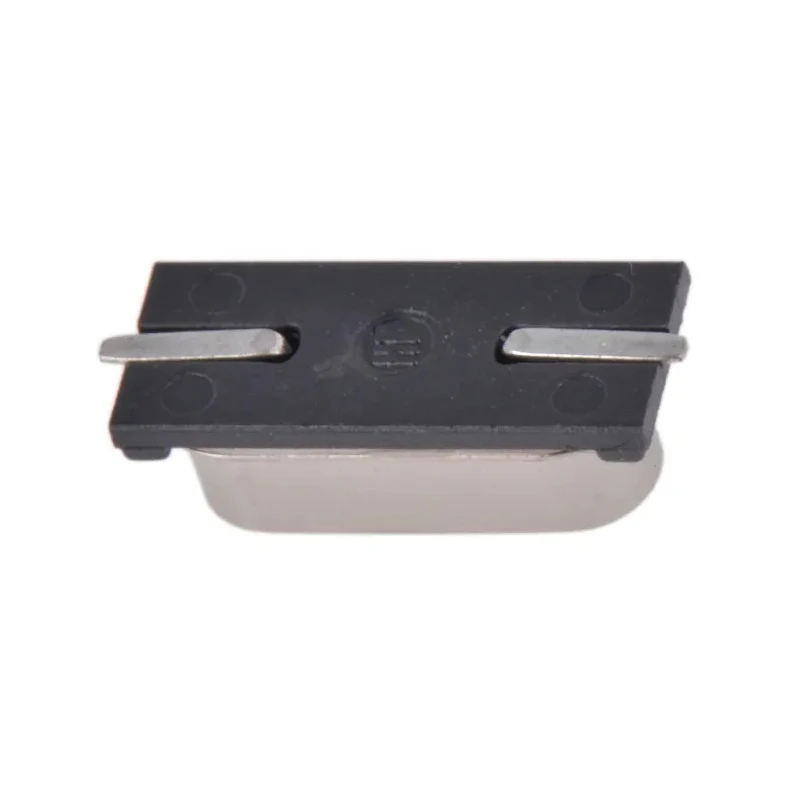

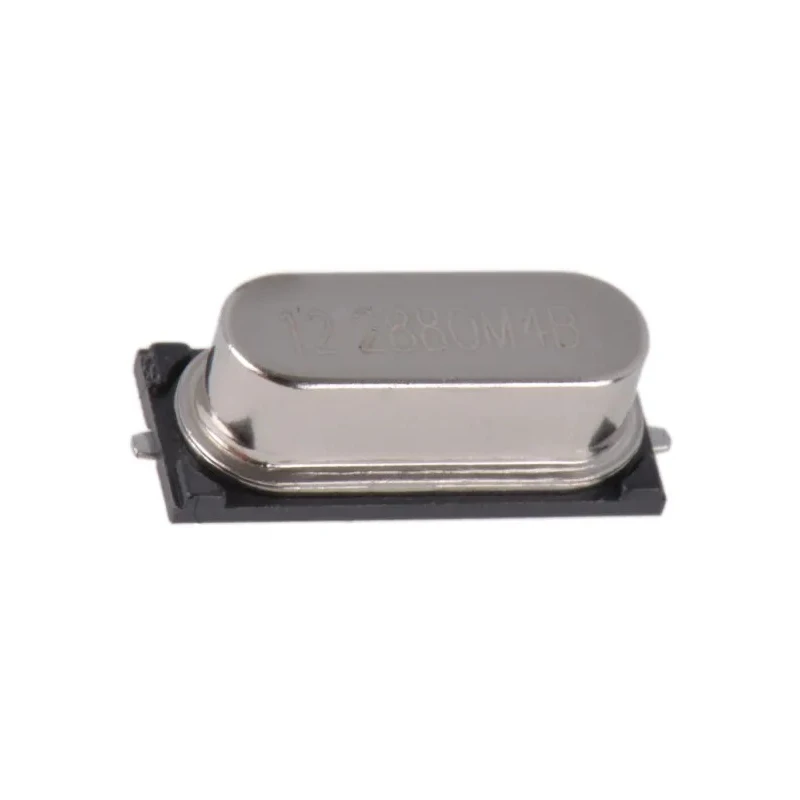

QANTEK QCS12.2880F18B23R 12.288 MHz Crystal is a precision crystal oscillator unit housed in a HC-49 metal package with a 2-pin surface mount design. It features a standard frequency of 12.288 MHz with a ±20 ppm tolerance and a frequency stability of ±30 ppm, making it suitable for applications requiring dependable timing references.

This crystal unit has a load capacitance of 18 pF and a series resistance of 50 Ω, providing optimal electrical characteristics for a wide range of electronic circuits. The physical dimensions are 11.4 mm in length, 4.8 mm in width, and 4.4 mm in height, making it compatible with compact PCB layouts.

The device is rated for operation in temperatures from -40°C to 85°C, suitable for industrial and commercial electronic assemblies where environmental conditions vary. It adheres to the RoHS directive ensuring compliance with environmental standards.

Packaged in tape and reel format, this crystal is optimized for automated soldering assemblies which enhances production efficiency. This product is manufactured in China and does not conform to any automotive standard, focusing instead on general electronic component applications.

Standard frequency of 12.288 MHz ensures precise oscillation. HC-49 metal package provides durability and ease of surface mounting. Frequency tolerance and stability guarantee reliable performance. Load capacitance and series resistance specifications optimize circuit compatibility.

Wide temperature operational range supports various application environments. RoHS compliant, environmentally safe production. Packaging allows for efficient automated assembly. 2-pin configuration for simplified connection and integration.

This crystal unit is ideal for use in industrial, laboratory, electronics manufacturing, and telecommunications sectors requiring high precision and stability. EnvMart offers this high-quality crystal unit to support your critical timing and frequency control needs.
