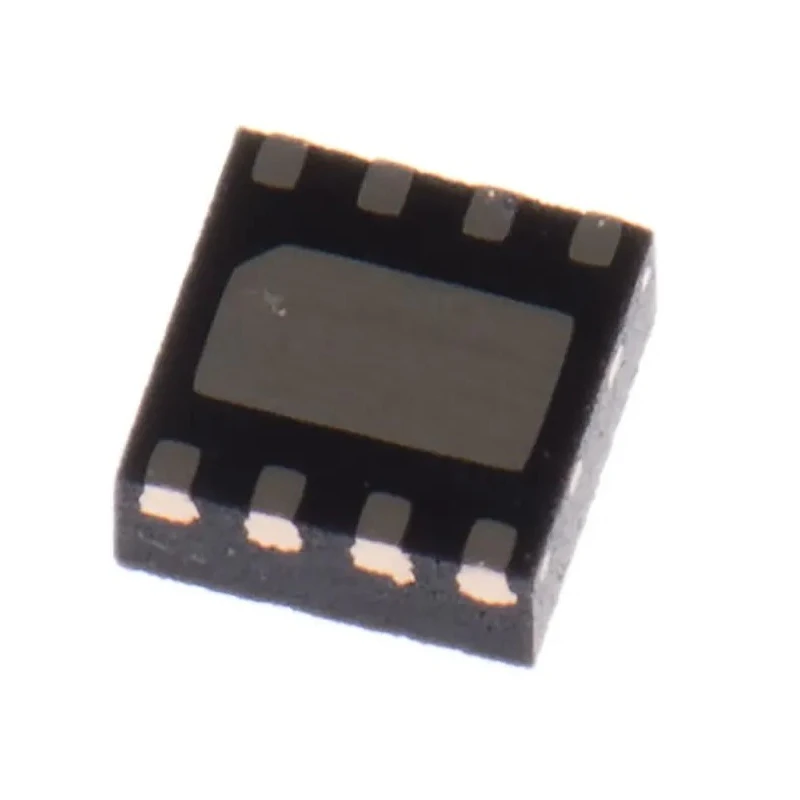

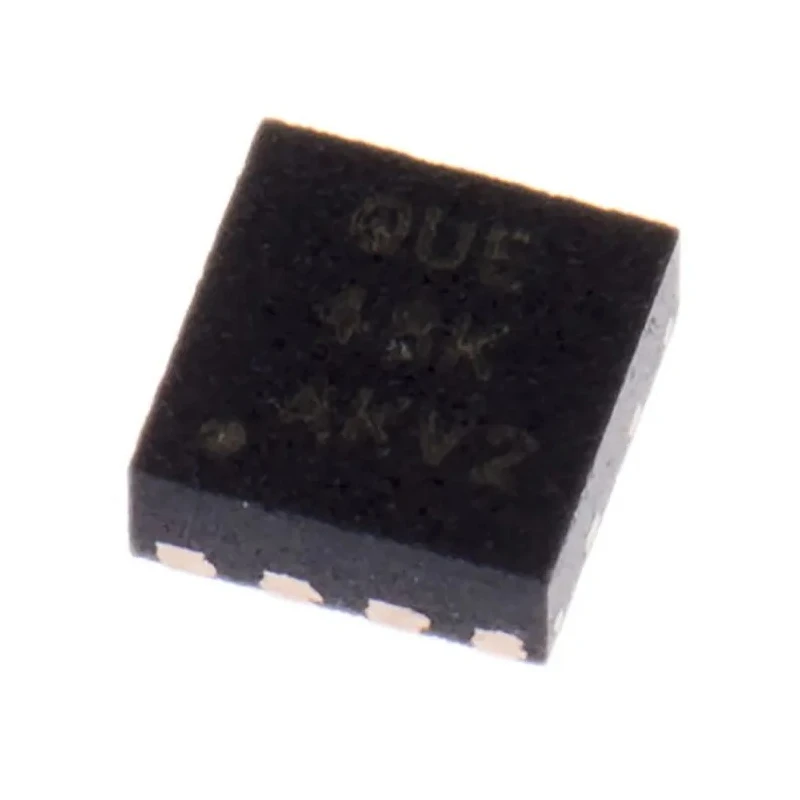

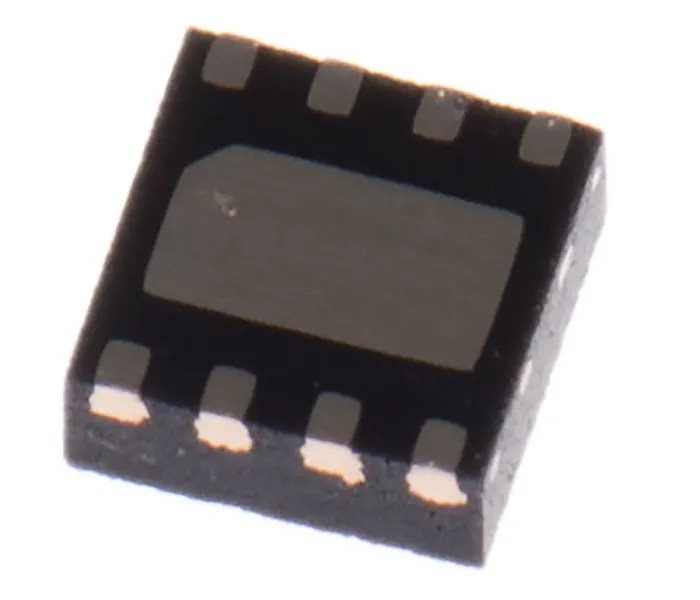

Texas Instruments Operational Amplifier, 80 MHz, 8-Pin SON Package, 40V, 2 Channel, OPA2211AIDRGT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Operational Amplifier, 80 MHz, 8-Pin SON Package, 40V, 2 Channel, OPA2211AIDRGT

Name: Texas Instruments Operational Amplifier, 80 MHz, 8-Pin SON Package, 40V, 2 Channel, OPA2211AIDRGT
Brand: Texas Instruments
SKU: 375567
Price: 19.8 USD
Availability: InStock



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	0.95mm
Length	3.1mm
Model	OPA2211AIDRGT
Width	3.1mm
Mount Type	Surface
Series	OPA2211
Output Current	30mA
Maximum Operating Temperature	125°C
Package Type	SON
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	40V
Minimum Supply Voltage	4.5V
GBP - Gain Bandwidth Product	80MHz
Input Bias Current	±250 nA
Slew Rate	27V/μs
Input Offset Current	±150 nA

Key Features

Offers dual channel operation with high gain bandwidth of 80 MHz.
Designed for surface mounting with SON package type for compact PCB layouts.
Operates with a supply voltage range from 4.5V to 40V.
Features low input bias current of ±250 nA and low input offset voltage of ±150 μV.
Wide operating temperature range from -40°C to 125°C for diverse industrial environments.
Slew rate of 27 V/μs supports fast signal response in precision applications.
Output current capability up to 30 mA, suitable for driving loads directly.
Compact physical dimensions of 3.1mm length, 3.1mm width and 0.95mm height.

Product Description

Texas Instruments OPA2211AIDRGT is a high performance operational amplifier designed for precision analog signal processing in industrial, laboratory, and manufacturing applications. Featuring an 80 MHz gain bandwidth product, this dual-channel JFET input amplifier ensures exceptional linearity and low distortion.

Its surface mounting SON package provides a compact footprint with dimensions of 3.1mm by 3.1mm by 0.95mm height, aiding efficient PCB space utilization. The device supports a wide supply voltage range from 4.5V to 40V and an operating temperature range from -40°C to 125°C, making it suitable for harsh environmental conditions.

The OPA2211AIDRGT boasts low input bias current (±250 nA), input offset voltage (±150 μV), and a fast slew rate of 27 V/μs, allowing precise and rapid signal conditioning. Its output current capability of 30 mA facilitates direct load driving in instrumentation and control systems.

These features and RoHS compliance make it ideal for use in industrial automation, medical equipment, instrumentation amplifiers, and other precision electronics requiring stable and accurate analog amplification.

Offers dual channel operation with high gain bandwidth of 80 MHz. Designed for surface mounting with SON package for compact PCB layouts. Operates with supply voltage range from 4.5V to 40V across wide temperature range.

Features low input bias current and input offset voltage for precision performance. Fast slew rate supports rapid signal response in high-speed applications. 30 mA output current capability suits driving loads in instrumentation systems.

Compact 8-pin package dimensions optimize PCB space utilization. RoHS compliant for environmentally safe manufacturing and disposal.

This Operational Amplifier is ideal for applications in industrial controls, laboratory instrumentation, medical devices, and high-fidelity audio amplification. Explore more precision analog components in EnvMart’s Electronics category for advanced design solutions.
