Texas Instruments Operational Amplifier, 10 MHz Bandwidth, 14-Pin 18V SOIC OPA4141AID

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Operational Amplifier, 10 MHz Bandwidth, 14-Pin 18V SOIC OPA4141AID

Name: Texas Instruments Operational Amplifier, 10 MHz Bandwidth, 14-Pin 18V SOIC OPA4141AID
Brand: Texas Instruments
SKU: 375561
Price: 7.92 USD
Availability: InStock



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.5mm
Length	8.75mm
Model	OPA4141AID
Width	4mm
Mount Type	Surface
Series	OPA4141
Output Current	36mA
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	4
Standards/Approvals	RoHS
Pin Count	14
Maximum Supply Voltage	18V
Minimum Supply Voltage	4.5V
GBP - Gain Bandwidth Product	10MHz
Input Bias Current	±20 pA
Vos - Input Offset Voltage	±3.5 mV
Slew Rate	20V/μs

Key Features

Features JFET input providing low input bias current and low input offset voltage.
Supports single or dual supply operation between 4.5 V and 18 V.
Offers high slew rate of 20 V/μs for fast signal response.
Designed to operate within a broad temperature range from -40°C up to 125°C.
Compliant with RoHS standards ensuring environmental safety and quality.
Output current capability up to 36 mA for driving moderate loads.
Compact dimensions with a length of 8.75 mm, width of 4 mm, and height of 1.5 mm.
Contains 4 independent amplifier channels in a single IC package.

Product Description

Texas Instruments OPA4141AID is a high-performance operational amplifier designed with JFET input stage for ultra-low input bias current and input offset voltage. It supports a gain bandwidth product of 10 MHz, making it ideal for precision analog signal amplification in industrial, laboratory, and electronic equipment applications.

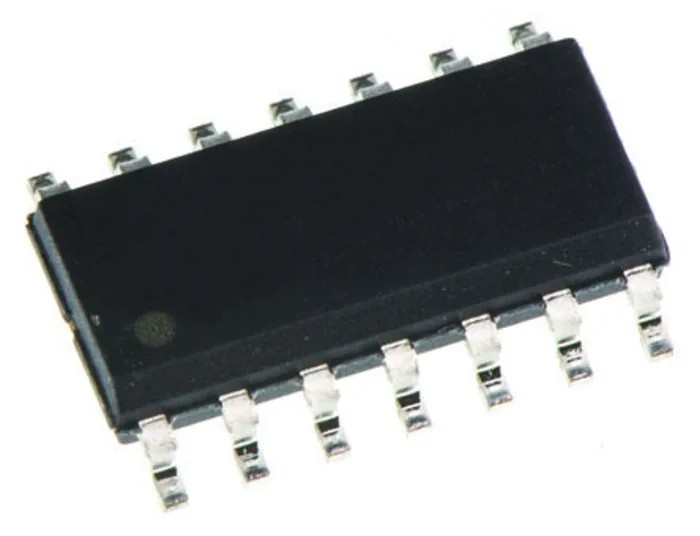

The device is packaged in a 14-pin SOIC surface-mount form factor, enabling efficient PCB design and compact system integration. The operational amplifier operates from a minimum supply voltage of 4.5 V up to 18 V, accommodating a versatile range of power supply configurations.

Offering a high slew rate of 20 V/μs, the OPA4141AID delivers rapid response suitable for high-speed signal processing. Its operating temperature range from -40°C to 125°C ensures reliability in harsh industrial environments.

The integrated 4-channel design provides multiple amplifier circuits in a single package, enhancing system density and integration. Output current is capable of up to 36 mA, allowing it to drive medium-load applications efficiently.

The product complies with RoHS directives, guaranteeing environmentally safe materials and manufacturing processes. Its compact height of 1.5 mm, length of 8.75 mm, and width of 4 mm facilitate space-saving layouts on circuit boards.

JFET input design reduces input bias current to ±20 pA for high precision. Wide supply voltage range from 4.5 V to 18 V for versatile usage. Excellent thermal range allows use in industrial and automotive applications. 4 independent channels in a single IC reduce component count.

High slew rate ensures accuracy in fast-changing signals. RoHS compliance supports environmentally responsible manufacturing. Surface mount SOIC package for compact PCB integration.

This operational amplifier is widely used in instrumentation, data acquisition, control systems, and other semiconductor-based analog electronics requiring precise low noise amplification.
