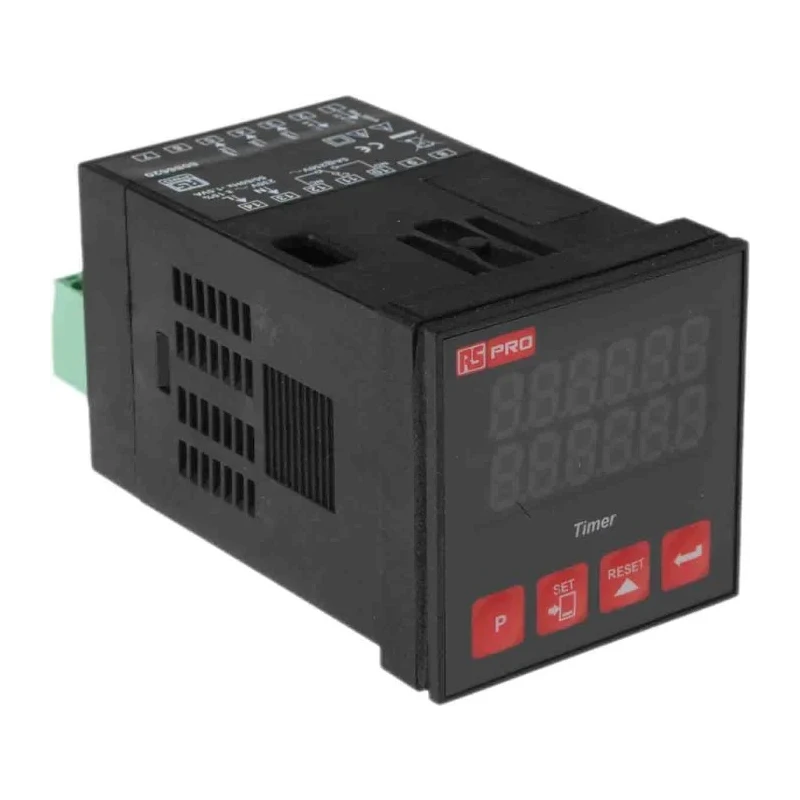

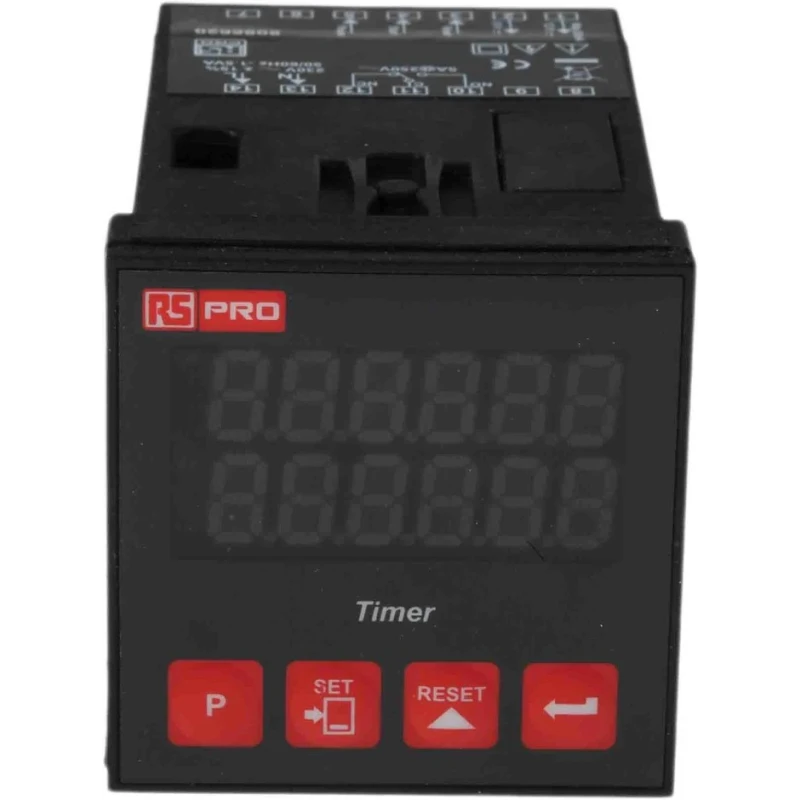

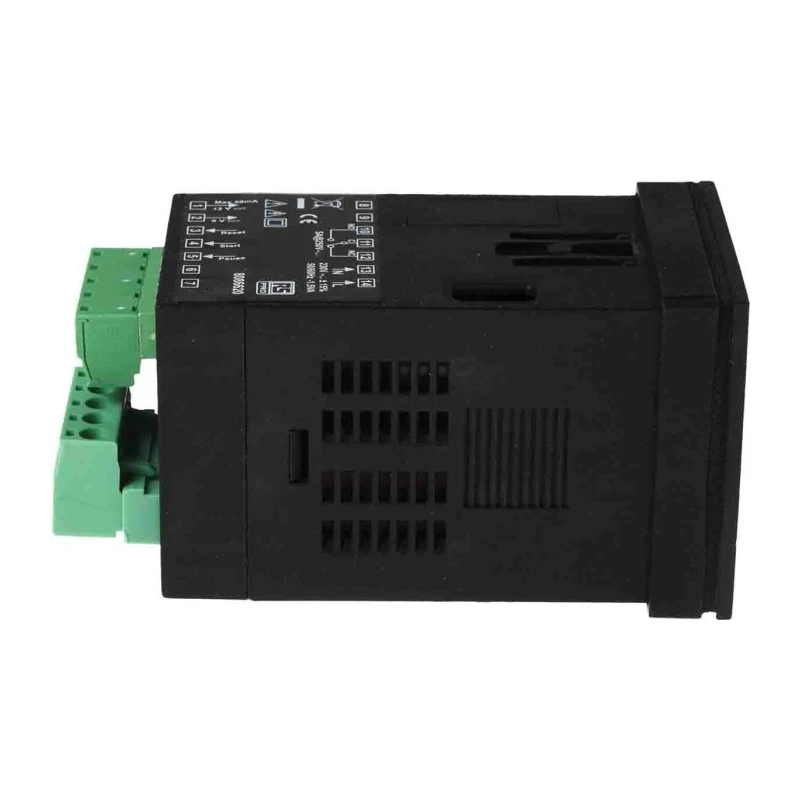

RS PRO Panel Timer Relay, Multifunction, 1-Contact, SPDT, 230 V dc/ac, One Shot, IP65 Rated 808-6620

RS PRO 808-6620 Panel Timer Relay is a multifunctional timer relay designed for panel mounting with high precision and accuracy. It features a single SPDT contact and supports both 230 V dc and 230 V ac supply voltages, making it versatile for various industrial automation needs.

This timer relay operates in one-shot timing mode with switch-adjustable timing adjustment. It allows timing delays ranging from 2 milliseconds up to 250 milliseconds, ensuring precise control for automated processes. The device can interface with NPN and PNP sensors as well as capacitive and proximity sensors and encoders, providing flexible input options.

The relay includes manual and automatic reset functions, enhancing operational flexibility. Its front panel is rated IP65, providing reliable protection against dust and moisture, while the rear is rated IP20. The screw terminal connections allow straightforward installation into control panels.

With compact dimensions of 95.5 mm length, 48 mm width, and 48 mm height, it is well-suited for integration into space-constrained applications. This timer relay finds extensive application in industries such as textiles, chemicals, mining, irrigation, raw material handling, food and beverage processing, industrial process control, quality control roller systems, packaging machinery, building automation, and tool benches.

Compact multifunction timer relay with single SPDT contact. Operates with supply voltage of 230 V dc and 230 V ac. Features one-shot timing mode with switch-adjustable timing. High precision with timing range from 2 milliseconds to 250 milliseconds.

Supports NPN and PNP sensors, capacitive, proximity sensors, and encoder inputs. Manual and automatic reset options available for flexible use. IP65 rated front panel ensures robust protection in industrial environments.

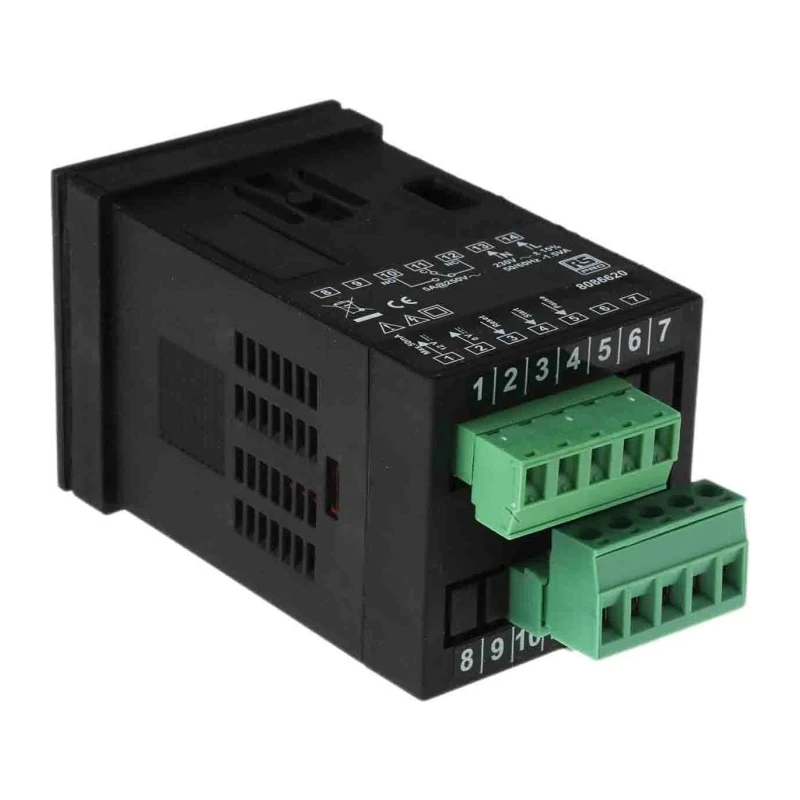

Screw terminal type facilitates easy installation and wiring. Compact dimensions of 95.5 mm length, 48 mm width, and 48 mm height for space-saving panel mounting. Suitable for industrial applications across textiles, chemical, mining, irrigation, food and beverage, packaging, automation, and more.

Explore the RS PRO category in EnvMart for reliable Timer Relays and related automation components tailored to industrial, laboratory, and manufacturing use cases.
