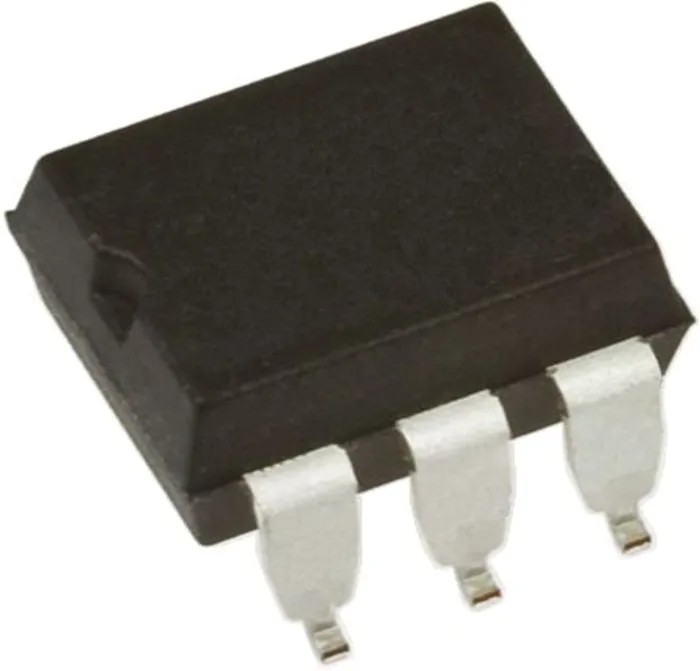

onsemi DC Input Surface Mount Optocoupler, 6-Pin MDIP Package, 1 Channel, 7500V Isolation H11L1SVM

onsemi H11L1SVM is a DC input optocoupler designed for surface mounting applications featuring a 6-pin MDIP package. It provides a single channel for galvanic isolation with a high isolation voltage rating of 7500V AC, making it suitable for a wide range of electronic interfacing and protection tasks in industrial and commercial equipment.

This optocoupler supports a maximum forward voltage of 1.5 volts and a maximum input current of 30 milliamps, enabling efficient operation with low power consumption. It is designed with fast signal response, having typical rise and fall times of 0.1 microseconds, which allows for high-speed digital signal isolation and transmission.

The operating temperature range from -40°C to 85°C ensures reliable performance under diverse environmental conditions. The device conforms to recognized safety and performance standards including UL, IEC 60747-5-2, and VDE 0884, ensuring compliance with international quality benchmarks.

Ideal for industrial automation, power management, signal processing, and communication systems, this optocoupler provides a logic output compatible with various digital circuits. Surface mount optocoupler with 6-pin MDIP package.

Maximum forward voltage: 1.5V. Maximum input current: 30mA. Isolation voltage rating of 7500V AC for robust signal separation. Typical rise/fall time: 0.1μs enabling fast signal transitions. Operating temperature range: -40°C to +85°C.

Compliance with UL, IEC 60747-5-2, and VDE 0884 standards.
