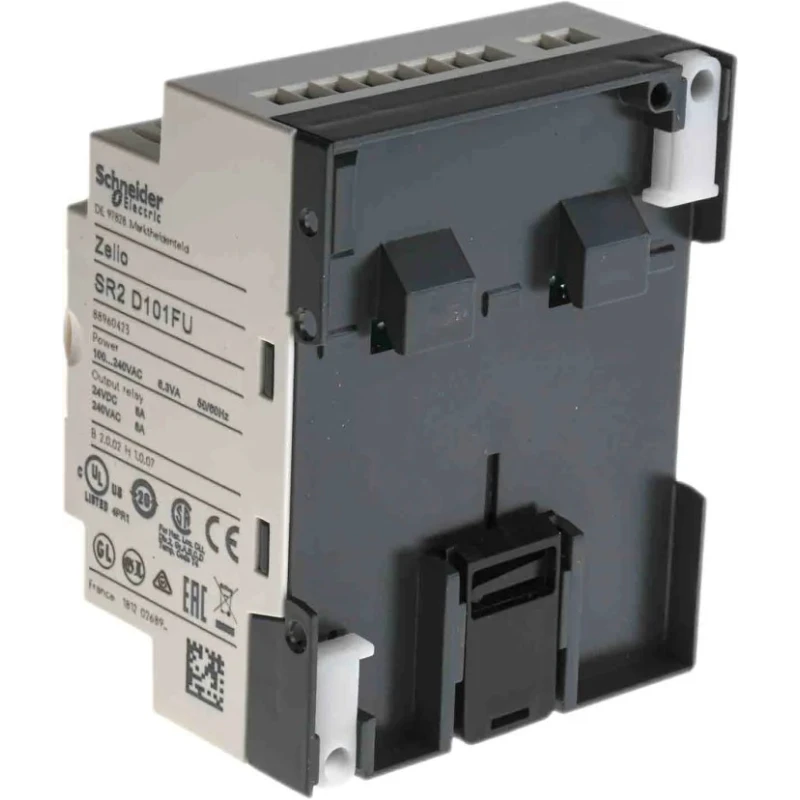

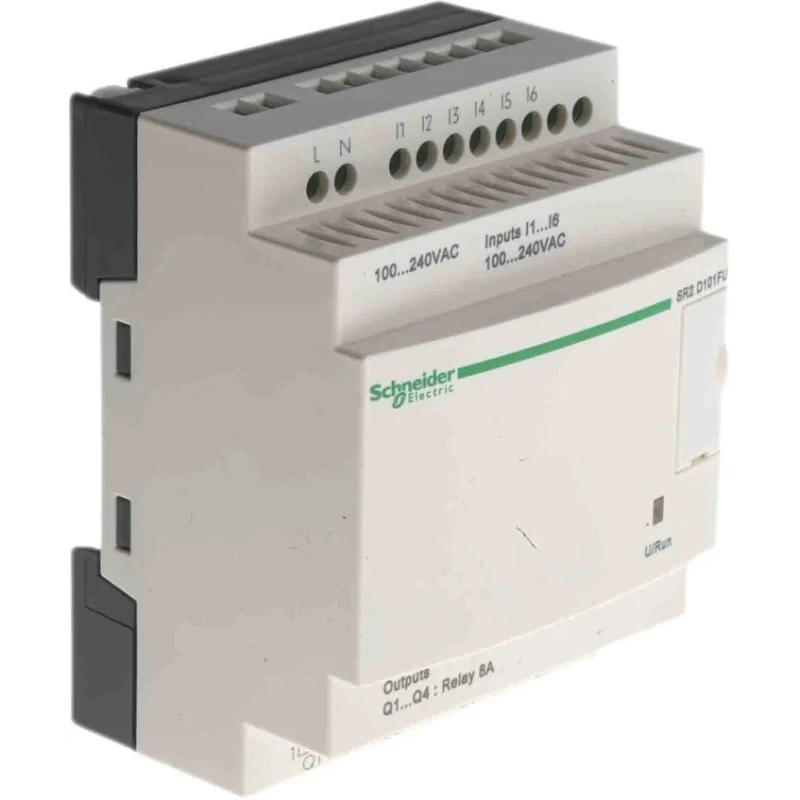

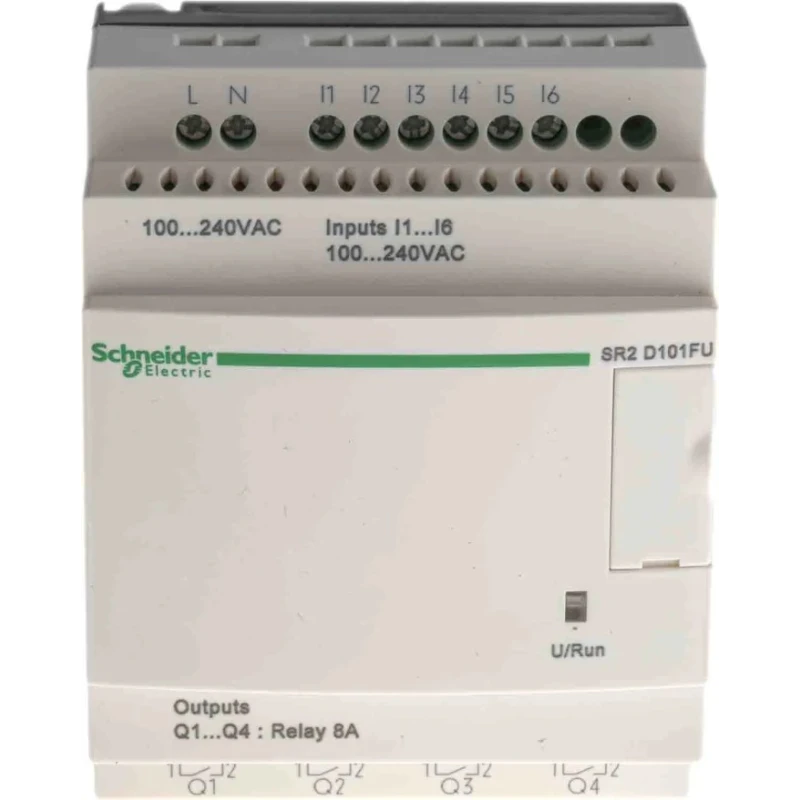

Schneider Electric Zelio Logic Series Logic Module 6-Input Discrete Input 4 Relay Outputs SR2D101FU

Schneider Electric SR2D101FU Zelio Logic Series Logic Module is a compact and versatile industrial automation component designed for discrete input and relay output control. This model is part of the Zelio Logic SR2/SR3 series, offering a programmable control solution that is an efficient alternative to cable logic and specific card-based systems.

The module features 6 discrete inputs and 4 relay outputs, suitable for small to medium-sized machinery control, lighting management, and HVAC regulation. It supports DIN Rail mounting with screw terminals for secure installation in panels. The robust operating temperature range from -20°C to 55°C ensures stable performance across diverse industrial environments.

Power is supplied via 100 to 240V AC, and the device includes battery backup and an integrated display for enhanced reliability and user interface. Programming is facilitated through Ladder Logic language, allowing for easy development of control sequences in industrial processes.

This logic module complies with multiple international standards including CSA, C-Tick, GL, GOST, and UL, confirming its safety and performance ratings for industrial deployment.

Typical industrial applications include control systems for smaller machinery, lighting automation, and heating and air conditioning controls. The Zelio Logic series also supports modular expansions and remote signaling options via Modbus or Ethernet extensions.

This Logic Module offers discrete input types with 6 channels for versatile industrial automation. Features 4 relay outputs for efficient control of electrical devices. Compact and space-saving design with DIN rail mounting capability.

Operates reliably within a temperature range of -20°C to 55°C. Wide supply voltage compatibility from 100 to 240V AC. Includes battery backup and integrated display for operational monitoring. Programming via Ladder Logic language enables customized control solutions.

Certified to international standards including CSA and UL for safety assurance. Suitable for applications in machinery control, lighting management, and HVAC systems. Explore the extensive Schneider Electric portfolio and Zelio Logic series at EnvMart for industrial automation solutions that enhance efficiency and control precision.
