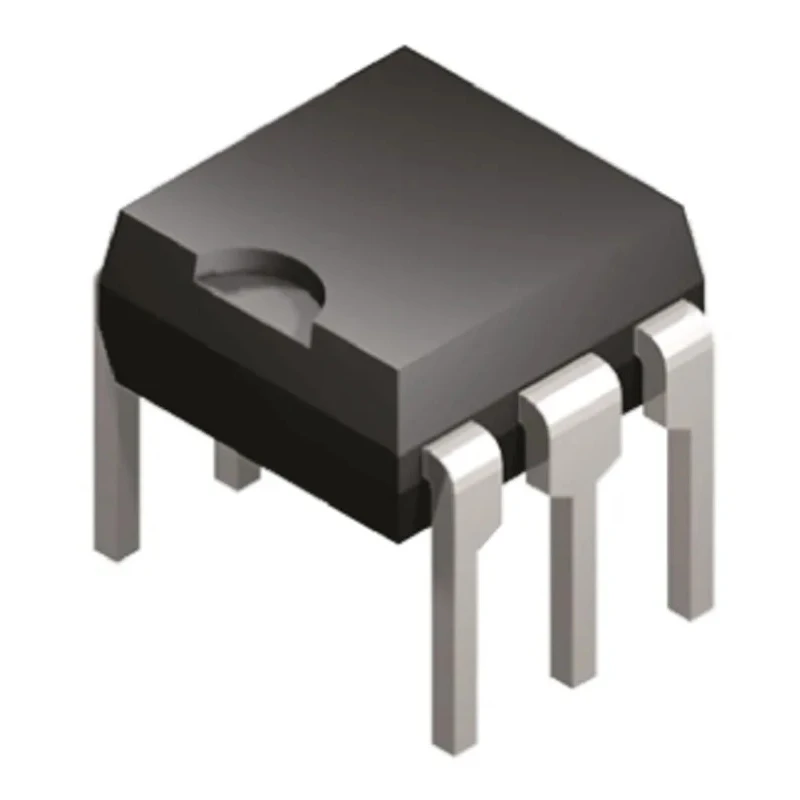

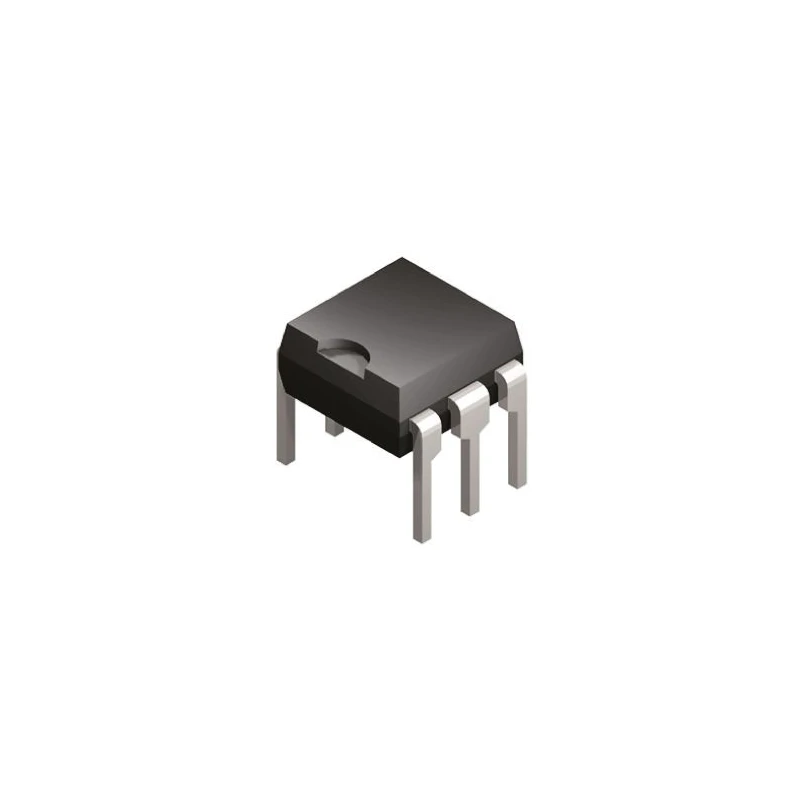

onsemi DC Input Optocoupler Through Hole 6-Pin MDIP H11AG1M

onsemi H11AG1M is a DC input optocoupler featuring a phototransistor output housed in a 6-pin Molded Dual Inline Package (MDIP) designed for through hole mounting. This optocoupler provides electrical isolation and signal transfer without direct electrical connection, making it ideal for interfacing AC or DC input signals in diverse electronic applications.

With a maximum forward voltage of 1.5 volts at the input, it supports up to 50 mA input current. The device withstands isolation voltages up to 7500V AC, ensuring exceptional reliability in industrial and commercial circuits requiring high voltage protection.

Designed for fast switching operations, its typical rise and fall times are each 5 microseconds, suitable for signal processing and control applications. It operates reliably across a broad temperature range from -40°C to 100°C, compatible with demanding environments.

The high minimum current transfer ratio of 300% ensures efficient signal amplification, while the maximum current transfer ratio of 3% indicates control over current gain limits. The H11AG series conform to industry standards including UL, IEC, and EN, providing assured compliance and quality.

Each optocoupler is supplied in tube packaging, facilitating automated assembly processes and reducing handling errors. The single-channel design integrates easily into electronic components for power and signal isolation in telecommunication, industrial controls, lighting, and instrumentation applications.

Industrial use cases include electronic switching, signal isolation, microprocessor interface isolation, and protection circuitry in manufacturing and automation systems. Explore our extensive range of Optocouplers and related electronic components at EnvMart to find solutions tailored to your industry needs.
