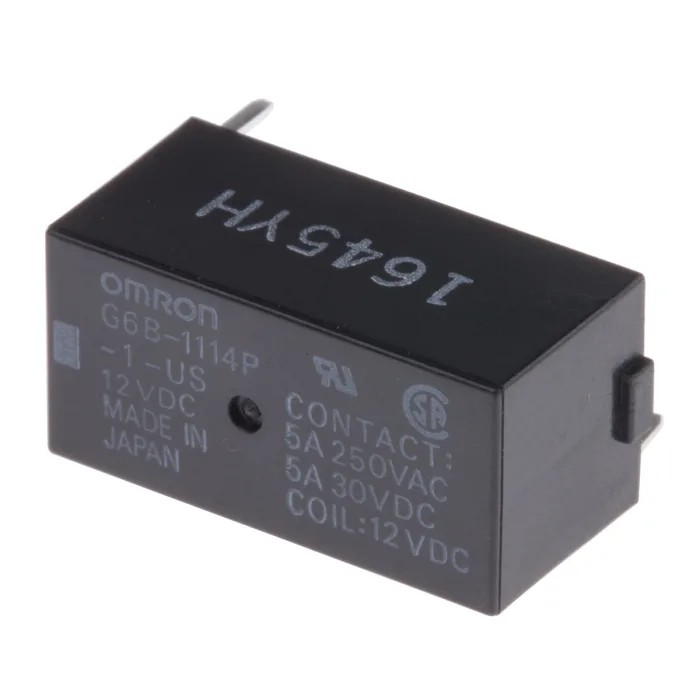

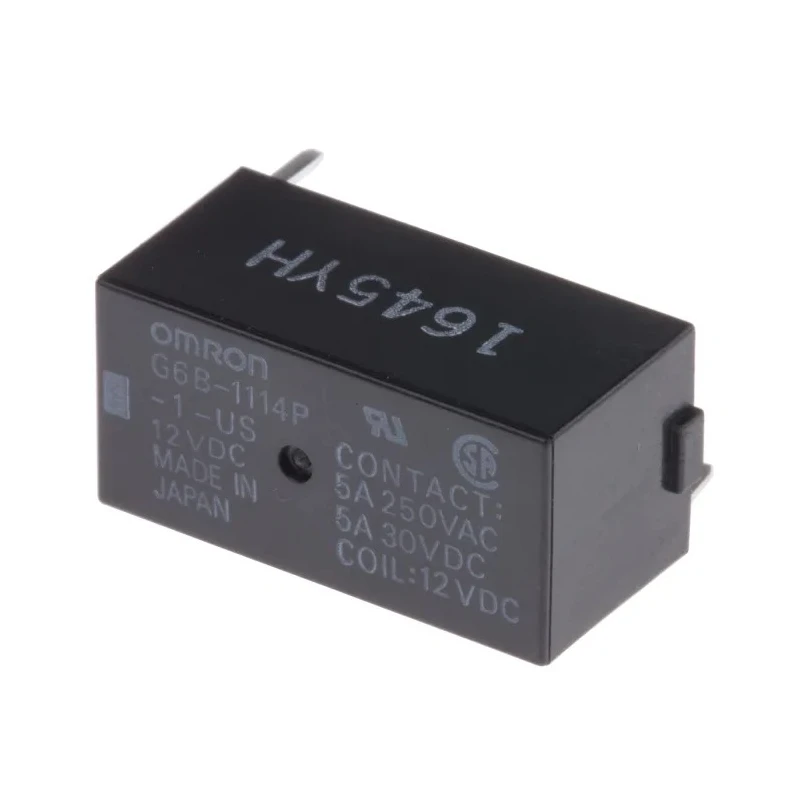

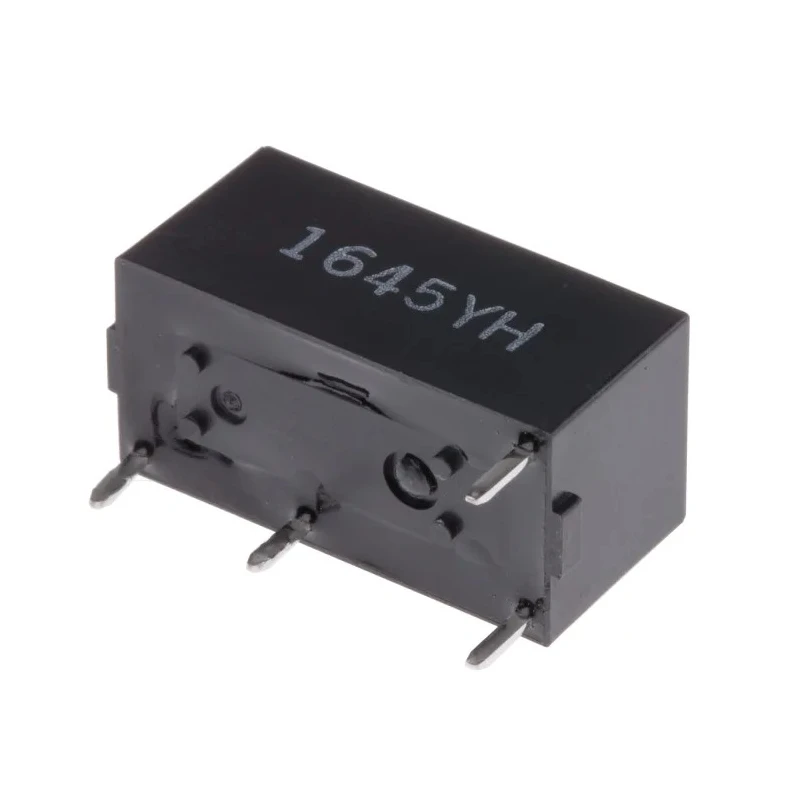

Omron PCB Power Relay 12V DC Coil, 5A Switching Current, SPST G6B-1114P-1-US-DC12

Omron G6B-1114P-1-US-DC12 PCB Power Relay is a subminiature, low-power consumption relay designed for precision control and switching applications in industrial and electronic equipment. It offers a 12V DC coil voltage and a single-pole single-throw (SPST) contact configuration, allowing it to manage switching currents up to 5A effectively.

Its compact form factor measuring 20mm in length, 10mm in width, and 10mm in height enables easy integration onto printed circuit boards using PCB pin terminals. The relay incorporates silver alloy contacts which provide optimal conductivity and durability for reliable switching performance.

Designed for industrial, laboratory, and automation uses, this relay supports switching voltages of up to 125V DC and 380V AC, making it versatile across various electrical control systems. It operates efficiently with a coil power rating of 200mW and coil resistance of 720Ω, ensuring low energy consumption. The operating temperature range from -25°C to 70°C allows it to function reliably under diverse environmental conditions.

Additional features include a robust build with high dielectric strength and impulse withstand voltage of 6kV, reducing magnetic interference and contact bounce time thanks to the unique moving loop armature design. The G6B relay series is fully sealed for durability and compliance with UL and CSA standards.

Compact subminiature size of 20x10x10mm for space-efficient PCB mounting. Low coil power consumption at 200mW. Silver alloy contact material for high conductivity and durability. SPST contact configuration supporting 5A switching current.

Wide operating temperature range from -25°C to 70°C. Supports switching voltages of 125V DC and 380V AC. UL recognized and CSA certified for industrial safety. Fully sealed for protection against contaminants and durability.

This Omron Power Relay is ideally suited for industrial automation, control systems, instrumentation, and electronic circuit applications where precise switching and reliability are critical. EnvMart offers this model for professional and commercial users requiring robust PCB relay components.
