onsemi 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin SOIC MC74HC541ADWG

Free Delivery in India | Lowest Global Shipping Charges

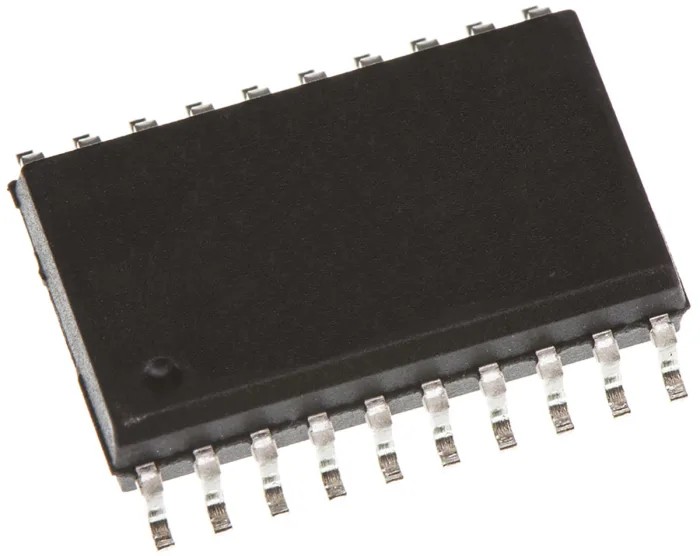

onsemi 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin SOIC MC74HC541ADWG

Name: onsemi 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin SOIC MC74HC541ADWG
Brand: onsemi
SKU: 374325
Price: 0.75 USD
Availability: InStock



Category Line Interface ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.65mm
Length	12.95mm
Model	MC74HC541ADWG
Width	7.6mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	3 State
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Polarity	Non-Inverting
IC Type	Buffer & Line Driver IC
Number Of Channels	8
Operating Voltage	2 to 6 V
Pin Count	20
Automotive Standard	AEC-Q100
Maximum Supply Voltage	6V
Logic Family	74HC
Logic Function	Line Receiver, Line Driver, Buffer
Minimum Supply Voltage	2V
Maximum High Level Output Current	7.8mA
Maximum Propagation Delay Time @ CL	165ns
Supply Current	160μA

Key Features

Operates with a supply voltage range of 2 to 6 volts.
Supports 8 independent channels for buffering and driving signals.
Maximum propagation delay time is 165 nanoseconds at specified load.
Maximum high and low level output current is 7.8 mA.
High-speed CMOS 74HC logic family for efficient performance.
Complies with automotive standard AEC-Q100 for quality and robustness.
Operating temperature range from -55°C to 125°C for demanding environments.
Low supply current of 160 microamperes conserving power.

Product Description

onsemi MC74HC541ADWG is an 8-channel buffer and line driver IC featuring 3-state, non-inverting outputs housed in a 20-pin SOIC surface mount package. It belongs to the 74HC high-speed CMOS logic family and is designed to operate reliably over a voltage supply range of 2 to 6 V, making it versatile for various electronic interface applications.

The device provides excellent driving capability with maximum high and low level output currents of 7.8 mA, and a maximum propagation delay time of 165 ns at specified load capacitance, ensuring timely signal transmission. This IC supports a wide operating temperature from -55°C to 125°C, conforming to automotive standard AEC-Q100 for enhanced durability in demanding industrial and automotive environments.

The MC74HC541ADWG features CMOS compatible inputs and outputs, making it suitable for integration into diverse logic systems requiring buffering and line-driving functions. Its compact SOIC package measures 12.95 mm by 7.6 mm by 2.65 mm, enabling space-efficient PCB designs.

This buffer and line driver IC is appropriate for industrial automation, automotive electronics, communication equipment, and general electronics projects requiring reliable signal buffering and line driving with three-state capability for bus-oriented systems.

This IC operates efficiently with a supply current of about 160 μA, suitable for low-power applications. The 20-pin SOIC package facilitates surface mounting in compact electronic assemblies.

Consider the onsemi MC74HC541ADWG for your buffer and line driver needs to enhance signal integrity and interface performance in electronic circuits. Browse more semiconductor and Line Interface ICs at EnvMart to find complementary components and solutions.
