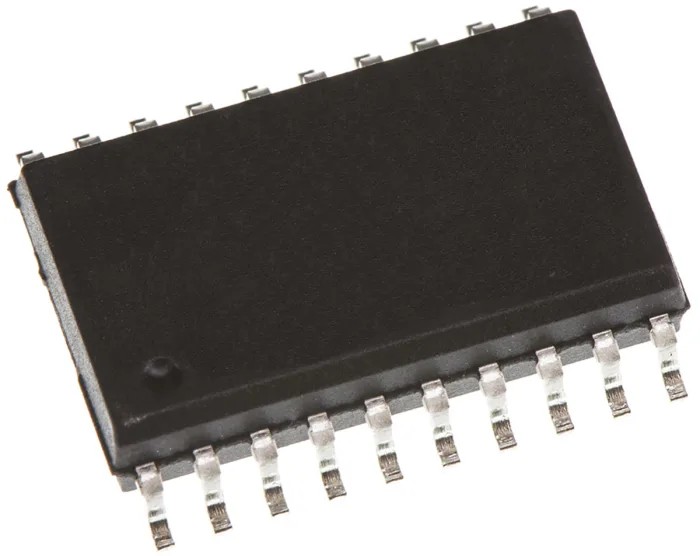

onsemi 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin SOIC MC74HC541ADWG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin SOIC MC74HC541ADWG

Name: onsemi 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin SOIC MC74HC541ADWG
Brand: onsemi
SKU: 374323
Price: 0.63 USD
Availability: InStock



Category Line Interface ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.65mm
Length	12.95mm
Model	MC74HC541ADWG
Width	7.6mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	3 State
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Polarity	Non-Inverting
IC Type	Buffer & Line Driver IC
Number Of Channels	8
Operating Voltage	2 to 6 V
Pin Count	20
Automotive Standard	AEC-Q100
Maximum Supply Voltage	6V
Logic Family	74HC
Logic Function	Line Receiver, Line Driver, Buffer
Minimum Supply Voltage	2V
Maximum High Level Output Current	7.8mA
Maximum Propagation Delay Time @ CL	165ns
Supply Current	160μA

Key Features

Features 8 independent channels for line driving and buffering.
Operates on a supply voltage range of 2 to 6 volts.
Maximum propagation delay time of 165 nanoseconds at CL.
Supports 3 state, non-inverting output configuration.
Designed with surface mount SOIC package with 20 pins.
Low supply current of 160 microamperes supports energy efficient designs.
Wide operating temperature range from -55°C to 125°C.
Meets automotive standard AEC-Q100 for reliability.

Product Description

onsemi MC74HC541ADWG is a high-speed CMOS logic 8-channel buffer and line driver designed for robust line receiver and buffer applications. It features 3 state non-inverting outputs and is supplied in a compact 20-pin SOIC surface mount package optimized for modern electronic circuit designs.

Operating voltage ranges from 2 to 6 volts provide flexibility for various low-power and standard logic level systems. Its maximum propagation delay time of 165 nanoseconds enables efficient signal management in high-speed communication and data transfer applications.

The device offers 8 independent channels, each capable of driving output currents up to 7.8mA, with CMOS compatible input and output configurations ensuring compatibility across a wide array of digital circuits. The low quiescent supply current of 160μA improves energy efficiency, making it suitable for portable and battery-powered equipment.

Its wide operating temperature range from -55°C to 125°C and adherence to the automotive AEC-Q100 standard underscore its robustness and reliability for industrial, automotive, and commercial electronic interface use cases.

8 channels for buffering and line driving. Operation from 2 to 6 volts supply voltage. 3 state, non-inverting output with CMOS compatibility. Low supply current enhances energy efficiency. Compact 20-pin SOIC surface mount package.

Operating temperature from -55 to 125 degrees Celsius. AEC-Q100 automotive specification compliance.

This buffer and line driver IC is commonly used in industrial electronics, automotive systems, telecommunications infrastructure, and general embedded systems requiring sound signal integrity and driving capability. Its small footprint allows seamless integration into densely populated circuit boards.
