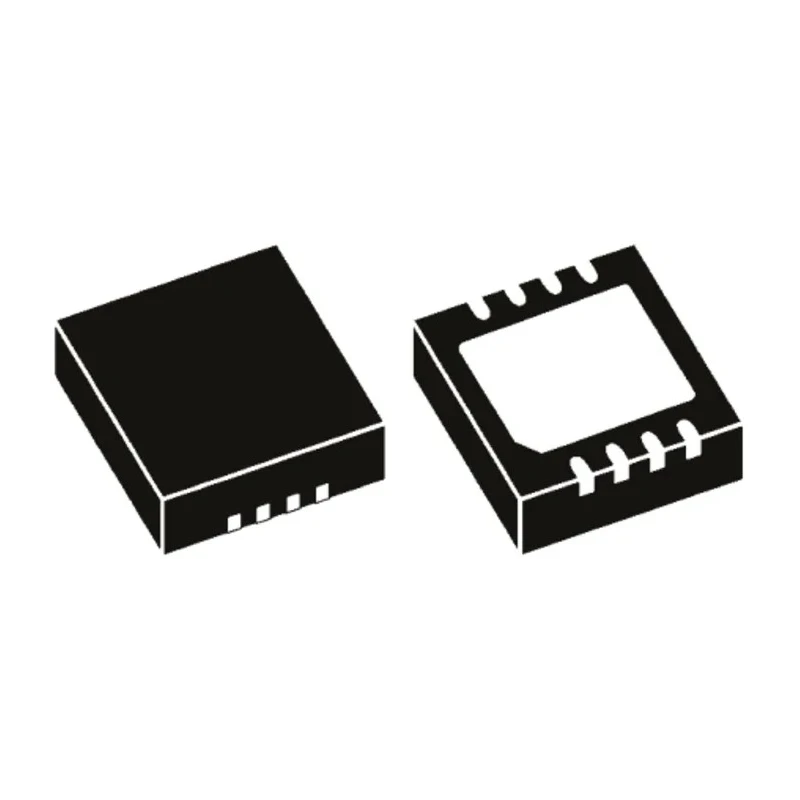

onsemi 250MHz Surface EMI Filter Tape & Reel Packaging Surface Mount Termination NUF4403MNT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 250MHz Surface EMI Filter Tape & Reel Packaging Surface Mount Termination NUF4403MNT1G

Name: onsemi 250MHz Surface EMI Filter Tape & Reel Packaging Surface Mount Termination NUF4403MNT1G
Brand: onsemi
SKU: 374201
Price: 0.47 USD
Availability: InStock



Category EMI Filter Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Length	1.6mm
Model	NUF4403MNT1G
Depth	1mm
Packaging	Tape & Reel
Mount Type	Surface
Operating Frequency	250MHz
Maximum Operating Temperature	85°C
Resistance	100mΩ
Capacitance	11pF
Minimum Operating Temperature	-40°C
Leakage Current	100nA
Termination Style	Surface Mount

Key Features

Compact surface mount design for space-saving circuit integration.
Operating frequency of 250MHz ensures reliable EMI suppression.
Capacitance of 11pF optimizes filter performance.
Wide operating temperature range from -40°C to 85°C supports harsh environments.
Low leakage current of 100nA minimizes power loss.
Resistance rating of 100mΩ ensures minimal signal attenuation.
Packaging on tape & reel facilitates automated assembly processes.
Surface mount termination style ensures compatibility with modern PCB designs.

Product Description

onsemi NUF4403MNT1G Surface EMI Filter is a precision passive component designed for effective electromagnetic interference (EMI) attenuation in advanced electronic devices. Featuring a 250MHz operating frequency and 11pF capacitance, this filter is optimized to reduce noise in sensitive signal paths, ensuring signal integrity and compliance with EMI regulations.

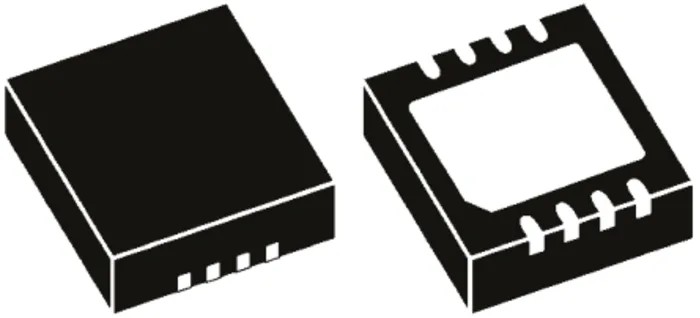

This surface mount EMI filter is housed in a compact 1.6mm by 1mm package, making it suitable for densely populated printed circuit boards. Its low leakage current of 100nA and low resistance of 100mΩ contribute to efficient circuit operation and minimal signal distortion. The device is rated for operation across a wide temperature range from -40°C to 85°C, supporting applications in diverse industrial, automotive, and consumer electronics environments.

Packaging on tape & reel enables seamless integration into automated pick-and-place assembly lines, improving production efficiency and reducing handling damage risks. The surface mount termination style is fully compatible with standard PCB assembly techniques.

Compact surface mount design for efficient space utilization. High-frequency operation at 250MHz for superior EMI suppression. Low capacitance value of 11pF tailored for precision filtering. Wide temperature tolerance from -40°C to 85°C suitable for harsh applications.

Minimal leakage current of 100nA reduces power consumption. Low resistance of 100mΩ maintains signal quality. Tape and reel packaging streamlines assembly automation. 1.6mm length and 1mm depth dimensions for compact mounting.

Surface mount termination style for modern PCB compatibility.

Frequently employed in industrial control systems, telecommunications equipment, automotive electronics, and consumer devices, the onsemi NUF4403MNT1G EMI filter is essential for ensuring device reliability and electromagnetic compliance. Its robust design balances performance and ease of manufacturing.

Explore more components in the EMI Filters & Protection category for comprehensive solutions in electronics noise management.
