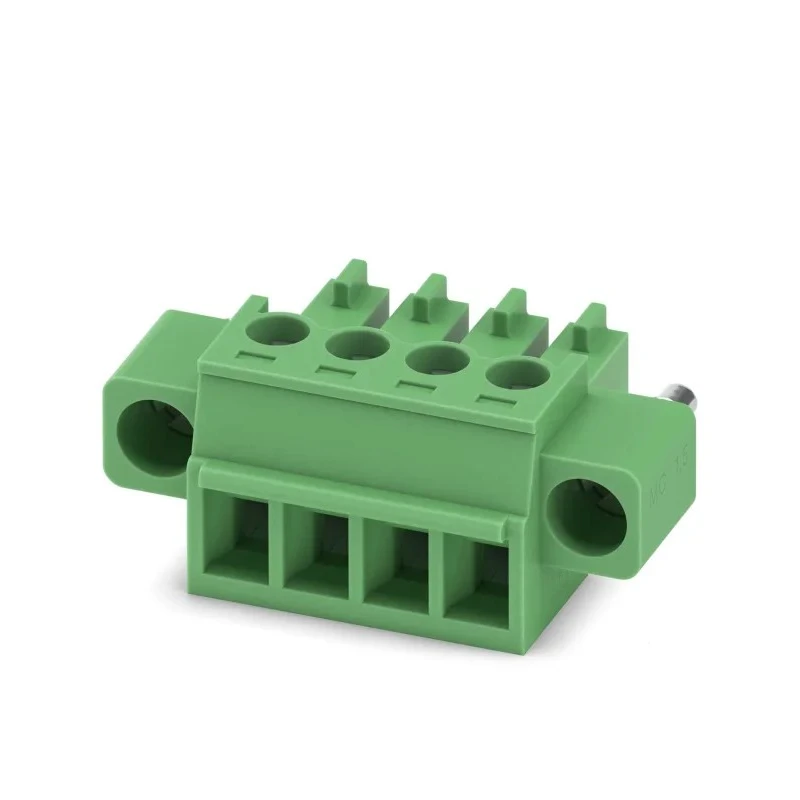

Phoenix Contact Pluggable Terminal Block MC 1.5/4-STF-3.81 Series 4-Contact 3.81 mm Pitch 320V 8A 1 Row 1827729

Phoenix Contact 1827729 pluggable terminal block MC 1.5/4-STF-3.81 series offers a reliable, high-quality connector solution for industrial and electronic applications. It features 4 contacts arranged in a single row with a 3.81 mm pitch, designed for PCB mounting with compact dimensions (25.63 mm length, 16.1 mm width, and 11.1 mm depth). This terminal block supports wire sizes from 0.14 mm² up to 1.5 mm², using screw connections with a tension sleeve and horizontal wire entry for secure wiring.

Rated for 8 amps current and 320 volts voltage, it ensures safe power transmission for signal and data transfer on printed circuit boards. Its polyamide housing in green color provides durable insulation suitable for operating temperatures ranging -40° C to +70° C. The copper alloy contacts are tin-plated to maintain excellent electrical conductivity and resist corrosion, enhancing reliability even in vibrating environments.

This Pluggable Terminal Block is an ideal choice for applications in industrial automation, electronics manufacturing, HVAC systems, construction, and laboratory equipment. The compact height of 8 mm above the board allows for tight fitting designs without sacrificing performance. The product complies with RoHS standards, demonstrating environmental compliance.

Accessories such as M2 slotted screws and marker cards are available for installation ease and identification. This component supports secure electrical connections, making it a durable and efficient choice for permanent or temporary circuit assemblies.

Compact design with 3.81 mm pitch optimizes PCB space usage. Supports wire sizes from 0.14 mm² to 1.5 mm² with screw connection. Rated for a current of 8 amps and voltage of 320 volts for safe power transmission. Constructed with polyamide housing for durable insulation and green color coding.

Compatible with M2 slotted screws and features copper alloy tin-plated contacts for excellent conductivity. Operating temperature range from -40° C to +70° C for harsh environments. Designed for PCB mounting with a length of 25.63 mm, width of 16.1 mm, and depth of 11.1 mm.

Ideal for industrial, electronic, construction, and manufacturing applications. Meets RoHS standards ensuring compliance with environmental regulations. Enables secure and vibration-resistant wire connections with tension sleeve and horizontal wire entry.

Explore the full range of Phoenix Contact terminal blocks and components on EnvMart for your industrial and electronic connectivity needs.
