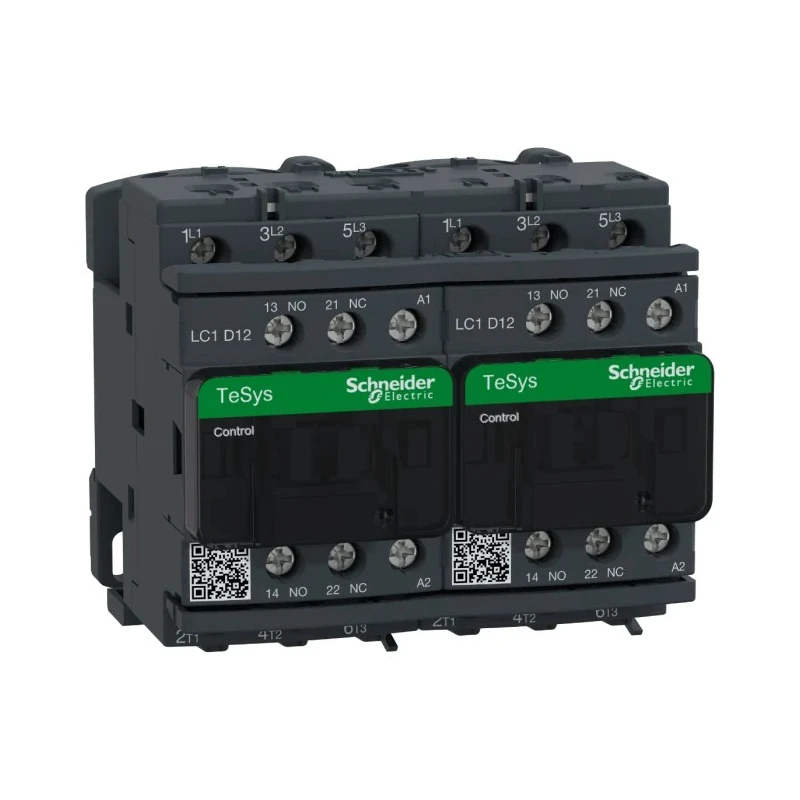

Schneider Electric TeSys D 3-Pole Contactor, 12 A, 5.5 kW 115V, 110V AC Coil, 3 NO, 690V AC LC2D12FE7

Schneider Electric LC2D12FE7 is a robust and reliable 3-pole TeSys D contactor featuring a 110V AC coil for precise motor control, resistive load switching, and reversing applications. Designed to deliver 12 A operational current and a power rating of 5.5 kW at 115V, this contactor is ideal for industrial automation, manufacturing, HVAC, and motor control systems.

This model includes three normally open (3 NO) main contacts and two auxiliary contacts configured as 2 NO/2 NC, providing extended switching capabilities. The device mounts easily on DIN rails or panels, with screw terminals offering IP20 finger-safe protection and compliant with both North American and international terminal markings.

Constructed to operate within a temperature range of -5°C to 60°C, the LC2D12FE7 meets global standards such as CCC, CSA, EAC, IEC, RoHS, and UL, ensuring high safety and quality. Its compact dimensions (82.5 mm length, 90 mm width, 86 mm depth) facilitate efficient panel design in industrial setups.

Among its features are a pre-installed interlock for enhanced operational safety, flexible control circuitry adaptable to various functions, and a linear translation movement that delivers double breaking of poles for increased longevity. Suitable for breaking currents in squirrel cage motors (AC-3 category) and resistive loads (AC-1 category), this contactor supports a wide range of industrial equipment including lifts, conveyors, compressors, pumps, mixers, and air conditioning units.

Industrial applications include manufacturing automation, commercial HVAC systems, water treatment plants, and general motor control within production lines. This contactor is part of the Schneider Electric Better World product line, designed for disassembly and sustainability.

The contactor features a 12 A contact current and 5.5 kW power rating at 115V. Equipped with three normally open (3 NO) contacts and two auxiliary contacts configured as 2 NO/2 NC. It supports motor control, resistive load, and reversing functions with a DIN rail mount type.

Built-in screw terminal connections are IP20 finger-safe with both North American and international markings. The device operates between -5°C and 60°C and complies with multiple international standards including CCC, CSA, IEC, and UL.

Compact dimensions of approximately 82.5 mm length, 90 mm width, and 86 mm depth. Designed for easy installation with panel mounting options and pre-installed interlock for safety. The contactor offers a double-break pole mechanism for enhanced reliability and extended mechanical and electrical life.
