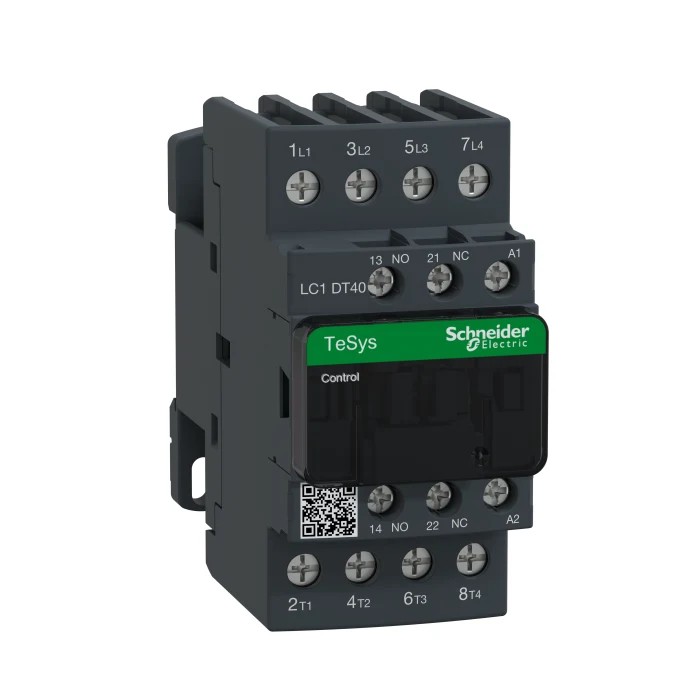

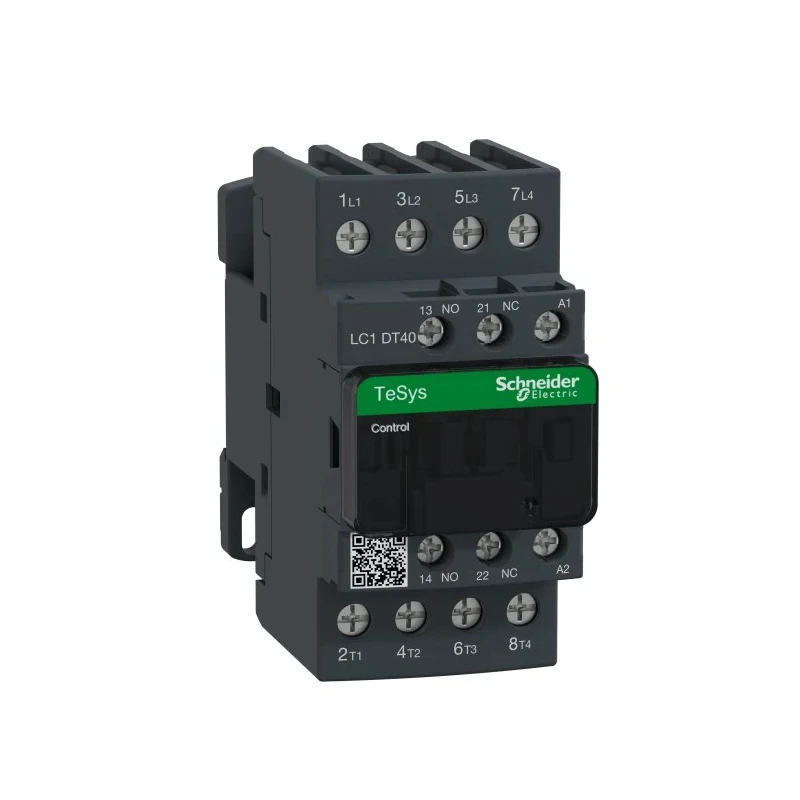

Schneider Electric TeSys D 4-Pole Contactor with 120V AC Coil, 40 A Rated Current, 4 NO, 600V AC LC1DT40G7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 45mm |
| Model | LC1DT40G7 |
| Depth | 98mm |
| Width | 91mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 600V ac |
| Coil Voltage | 120V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 120V AC coil compatible with 50/60Hz operation.
- Features four normally open (4 NO) power contacts rated for 40 A and up to 600V AC.
- Includes two auxiliary contacts configured as 1 NO and 1 NC for enhanced control functions.
- Compact DIN rail mountable design with a width of 45mm and depth of 98mm for easy installation.
- Operates reliably in temperatures from -40°C to 70°C.
- Complies with multiple international standards including IEC, UL, CSA, and CCC for global use.
- Designed for durability with mechanical and electrical life suited for up to 3600 cycles/hour.
- Contains screw clamp terminals with IP20 finger-safe protection and dual terminal markings.
Product Description
Schneider Electric LC1DT40G7 TeSys D 4-Pole Contactor is engineered for dependable motor control and industrial automation. This contactor supports non-inductive load applications up to 40 A at 440V AC and features a 120V, 50/60Hz AC coil to fit diverse control circuits. The construction includes four normally open contacts that ensure smooth power switching at up to 600V AC.
The product integrates two auxiliary contacts - one normally open (NO) and one normally closed (NC) - which are mirror certified for high reliability in control feedback systems. Screw clamp terminals provide IP20 finger-safe connections with both North American and international terminal markings. This compact contactor boasts a slim 45mm width and 98mm depth, ideal for space-saving DIN rail mounting or screw fixing in electrical panels.
Designed to operate efficiently between -40°C and 70°C, this contactor complies with strict standards such as IEC 60947-4-1, UL 508, CSA C22.2 No 14, and CCC certification, making it suitable for global industrial environments including manufacturing plants, HVAC systems, and water treatment facilities. The TeSys D series delivers long mechanical and electrical life, supporting up to 3600 operating cycles per hour, which enhances durability and reduces maintenance needs.
The Schneider Electric LC1DT40G7 meets stringent environmental criteria as a Green Premium product by adhering to RoHS and REACh directives. Its reliable performance in motor starters and automation control circuits makes it a preferred choice in industrial, HVAC, agricultural, and commercial applications.
120V AC coil voltage compatible with 50/60Hz. 4 normally open poles rated for 40 A and 600V AC. 1 NO plus 1 NC auxiliary contacts with mirror certification. DIN rail or screw mounting with compact 45mm width. Temperature range from -40°C to 70°C for diverse environments.
International certifications including IEC, UL, CSA, CCC, and others. IP20 finger-safe screw clamp terminals with dual markings. Designed for over 3600 mechanical cycles per hour. Compliant with RoHS and REACh Green Premium standards.
Manufactured in France ensuring quality and durability. Explore EnvMart's extensive range of Schneider Electric products and related automation components to optimize your industrial control systems.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 40 A.
It operates with a coil voltage of 120V AC, compatible with 50/60Hz operation.
The contactor can handle a maximum contact voltage of 600V AC.
It features four normally open (4 NO) poles.
This contactor operates efficiently within a temperature range of -40°C to 70°C.
It includes screw clamp terminals with IP20 finger-safe protection and dual terminal markings.
This unit is designed for DIN rail mounting, making installation straightforward.
It includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with IEC, UL, CSA, and CCC standards for global use.
The contactor has a width of 45mm and a depth of 98mm.
It is designed to support up to 3600 mechanical cycles per hour.
This contactor is suitable for motor starters and automation control circuits in various industrial applications.
