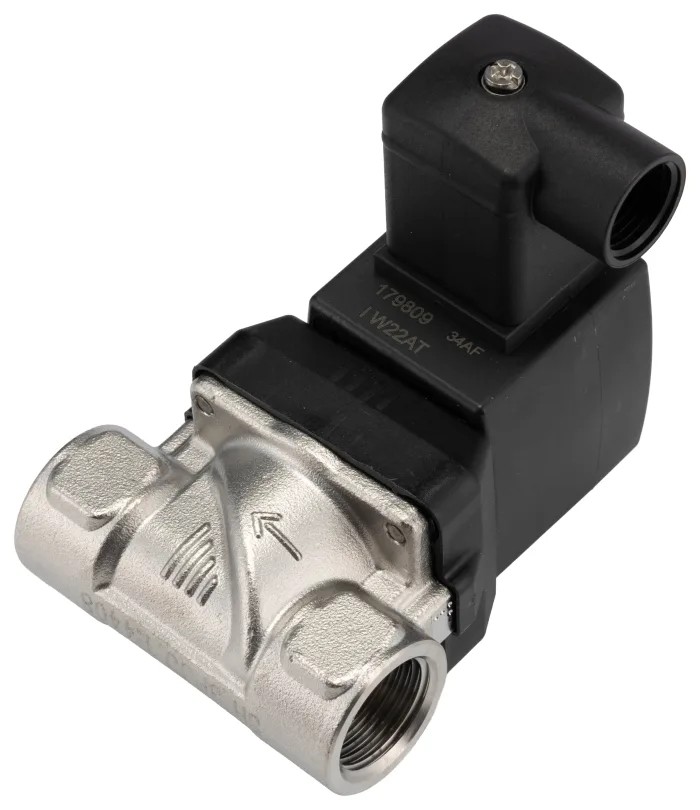

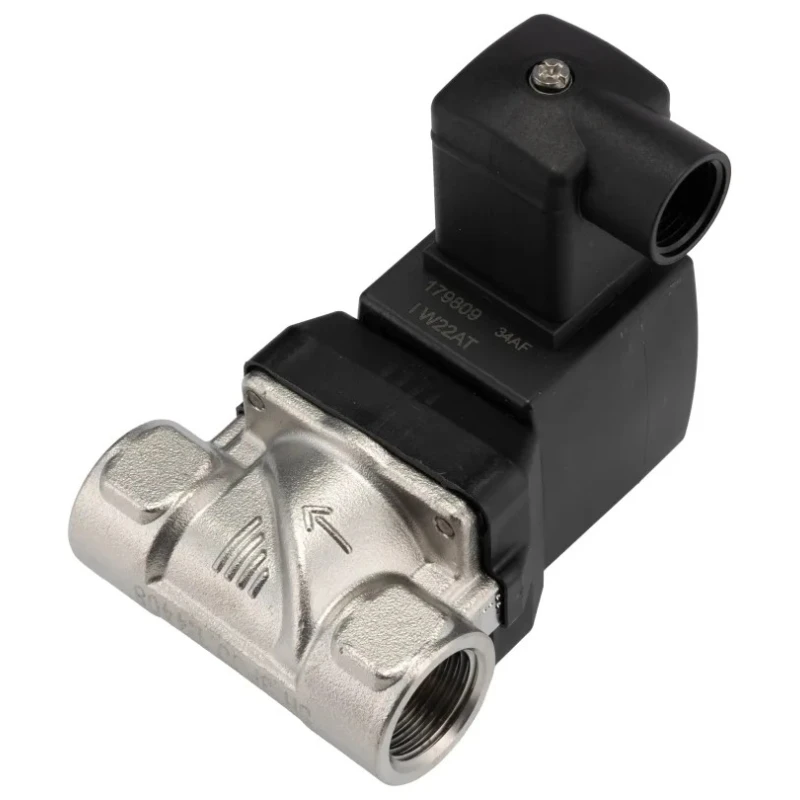

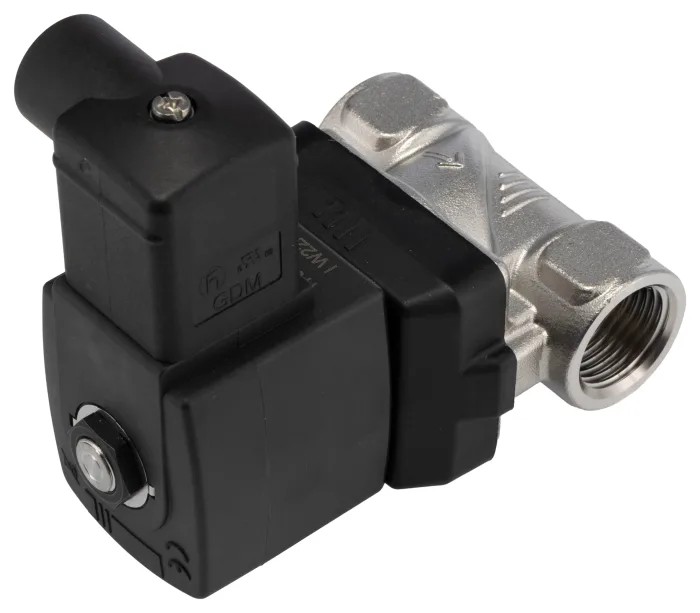

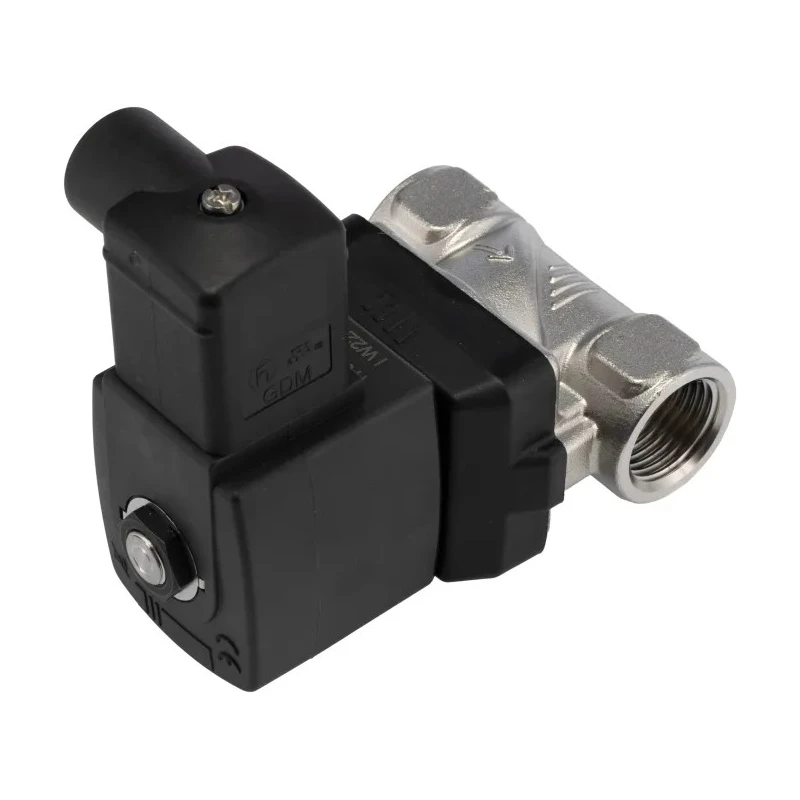

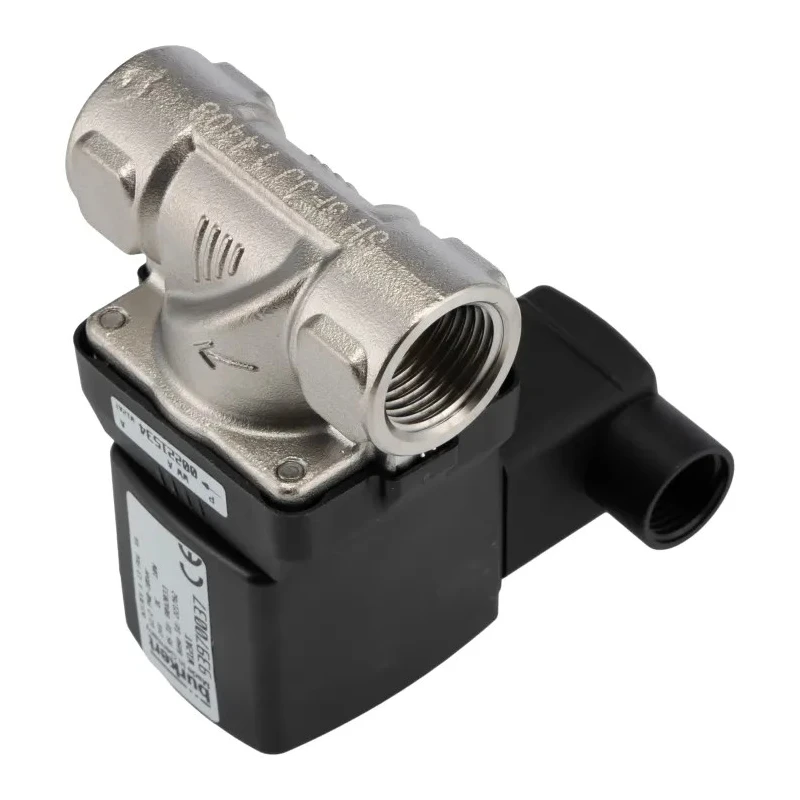

Burkert 2 Port Normally Closed Stainless Steel Solenoid Valve 24V dc, DN 10 to 65 mm, 10 bar, IP65 Protection 221762
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Model | 221762 |
| Series | 221 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | 0°C |
| Orifice Diameter | 13mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | explosion protection Ex-i (intrinsically safe) |
| Standards/Approvals | IP65 |
| Inlet Port Size | DN 10 to 65 mm |
| Default Valve Position | NC |
| Flow Factor Kv | 3.6m³/h |
| RS PRO Solenoid Valve, 2 Port, NC, 24V dc 1/2 in, 0.5 inRS Stock No. | 255-4192Brand: RS PRO |
Key Features
- Constructed from durable stainless steel for long service life.
- Normally closed (NC) valve configuration for fail-safe operation.
- Operates at maximum pressure up to 10 bar for industrial fluid control.
- Suitable for operating temperatures ranging from 0°C to 120°C.
- Compact design with IP65 rated sealed coil ensuring dust and water resistance.
- Designed with servo assist mechanism for smooth valve operation.
- Flow coefficient Kv of 3.6 m³/h for efficient fluid throughput.
- Certified explosion protection Ex-i for intrinsically safe hazardous areas.
Product Description
Burkert 221762 is a high-quality 2 port normally closed (NC) solenoid valve constructed from stainless steel, operating at 24V dc with a port size range from DN 10 to 65 mm. This valve is specifically designed for precise control of liquids and inert gases across various industrial applications.
The valve features a servo assist mechanism and a soft mechanical coupling between the main piston and pilot armature to enable smooth, quiet operation and prevent water hammer effects. With a maximum operating pressure of 10 bar and an operating temperature range from 0°C to 120°C, it is suitable for demanding fluid power environments.
The Burkert 221762 valve boasts an IP65 rated sealed coil, providing reliable protection against dust and water ingress. It is certified for explosion protection with an Ex-i classification, making it ideal for hazardous area deployments.
Its flow factor Kv at 3.6 m³/h ensures high flow capacity, while the compact size facilitates ease of installation in tight spaces. Typical applications include compressed air and vacuum systems, heating and refrigeration, water treatment plants, and swimming pool technology.
Durable stainless steel body construction. Normally closed valve position for fail-safe operation. Operating pressure up to 10 bar with reliable sealing. Wide temperature operating range between 0°C and 120°C. Servo assist for smooth and quick valve actuation.
IP65 protection rating for sealed coil. Flow coefficient Kv = 3.6 m³/h. Explosion protection certified for intrinsically safe locations.
This product is manufactured in Germany ensuring premium build quality and industrial reliability. The Burkert 221762 solenoid valve is a versatile and essential component for industrial, laboratory, and water treatment operations requiring robust fluid control solutions.
Browse similar Solenoid Valves and industrial valves within the EnvMart catalog for more options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
It operates within a temperature range of 0°C to 120°C.
The flow coefficient (Kv) for this model is 3.6 m³/h.
The inlet port size range for this solenoid valve is DN 10 to 65 mm.
This model has a normally closed (NC) valve configuration for fail-safe operation.
The valve body is constructed from stainless steel.
It requires a supply voltage of 24V dc.
It is certified for explosion protection with an Ex-i classification, suitable for intrinsically safe hazardous areas.
The valve features a servo assist mechanism for smooth and quiet operation.
The sealed coil has an IP65 rating, providing protection against dust and water ingress.
This product is manufactured in Germany.
Typical applications include compressed air and vacuum systems, heating and refrigeration, water treatment plants, and swimming pool technology.
